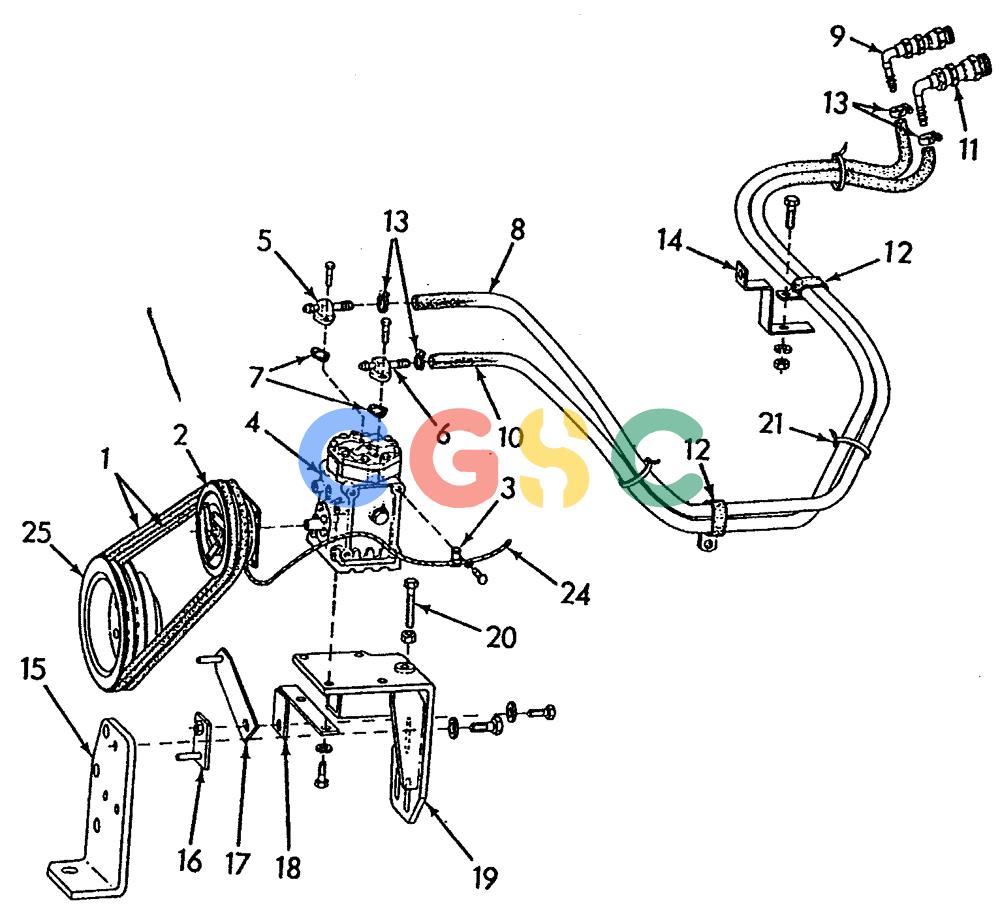

纽荷兰零件查询(FD20) - CRAWLER DOZER (F6.29[001]) - COMPRESSOR AND MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
852 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73132163 | [1] | SET OF BELTS | CMIBELT SET |
| 1. | 73131226 | [1] | SET OF BELTS | CMIBELT SET |
| 2. | 73114358 | [1] | CLUTCH | CMIASSY. Superseded by part number: 70925212, NNA79018025 |
| 3. | 70925615 | [1] | RETAINER COLLAR | CMICLIP |
| 3. | 70922300 | [1] | SCREW | BHBCAPSCREW, 3/8""NCX3/4"" Superseded by part number: 86500692 |
| 4. | 73128282 | [1] | AIRCOND. COMPRESSOR | CMICOMPRESSOR ASSY. Superseded by part number: 73156170 |
| 4. | 70921565 | [2] | SCREW | LECCAPSCREW, 3/8"" X 1-1/2"" Superseded by part number: 20988 |
| 4. | 70910287 | [2] | LOCK WASHER | BHBLOCKWASHER, 3/8"" Superseded by part number: 80680 |
| 5. | 73107659 | [1] | HYD CONNECTOR | CMIFITTING |
| 6. | 73108405 | [1] | HYD CONNECTOR | CMIFITTING |
| 7. | 73107627 | [2] | GASKET | CMI |
| 9. | 73134950 | [1] | UNIVERSAL JOINT | CMICOUPLING (1/2"" BARB) |
| 11. | 73134951 | [1] | UNIVERSAL JOINT | CMICOUPLING (13/32"" BARB) |
| 12. | 70933135 | [2] | CLAMP | CMI |
| 12. | 70929156 | [2] | WASHER,0.41" ID x 0.81" OD x 0.06" Thk | BHB |
| 12. | 70911026 | [1] | NUT | BHB3/8""NC Superseded by part number: 87861 |
| 13. | 73107640 | [4] | CLAMP | CMI |
| 14. | 73133824 | [1] | BRACKET | NH |
| 16. | 73133827 | [1] | BRACKET | NH |
| 16. | 70677006 | [1] | WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk | BHB |
| 17. | 73133828 | [1] | BRACKET | NH |
| 18. | 73133826 | [1] | BRACKET | NH |
| 18. | 70922287 | [2] | SCREW | CMICAPSCREW, 3/8""NC X 1-3/4"" Superseded by part number: 280589 |
| 19. | 73131235 | [1] | BRACKET | CMI |
| 19. | 70921076 | [3] | SCREW,3/8"-16 x 1 1/4" | BHB Superseded by part number: 280165 |
| 20. | 70935910 | [1] | SCREW | CMI1/2""NC X 4-1/2"" Superseded by part number: 79018032 |
| 20. | 70911028 | [1] | NUT | BHB1/2""NC Superseded by part number: 70900369 |
| 21. | 70930871 | [3] | COLLAR | CMITIE |
| 22. | 70932509 | [1] | FLEXIBLE HOSE | CMIHOSE, 13/32""I.D.X25 FT. |
| 23. | 70932510 | [1] | HOSE,12.7mm ID x 7620mm L | CMI1/2""I.D. X 25 FT. |
| 24. | 73133825 | [1] | CABLE | NH |
| 25. | 76010330 | [1] | PULLEY | LEC |
