纽荷兰零件查询(FD20) - CRAWLER DOZER (G.101A[001]) - COMPRESSOR AND MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
604 次

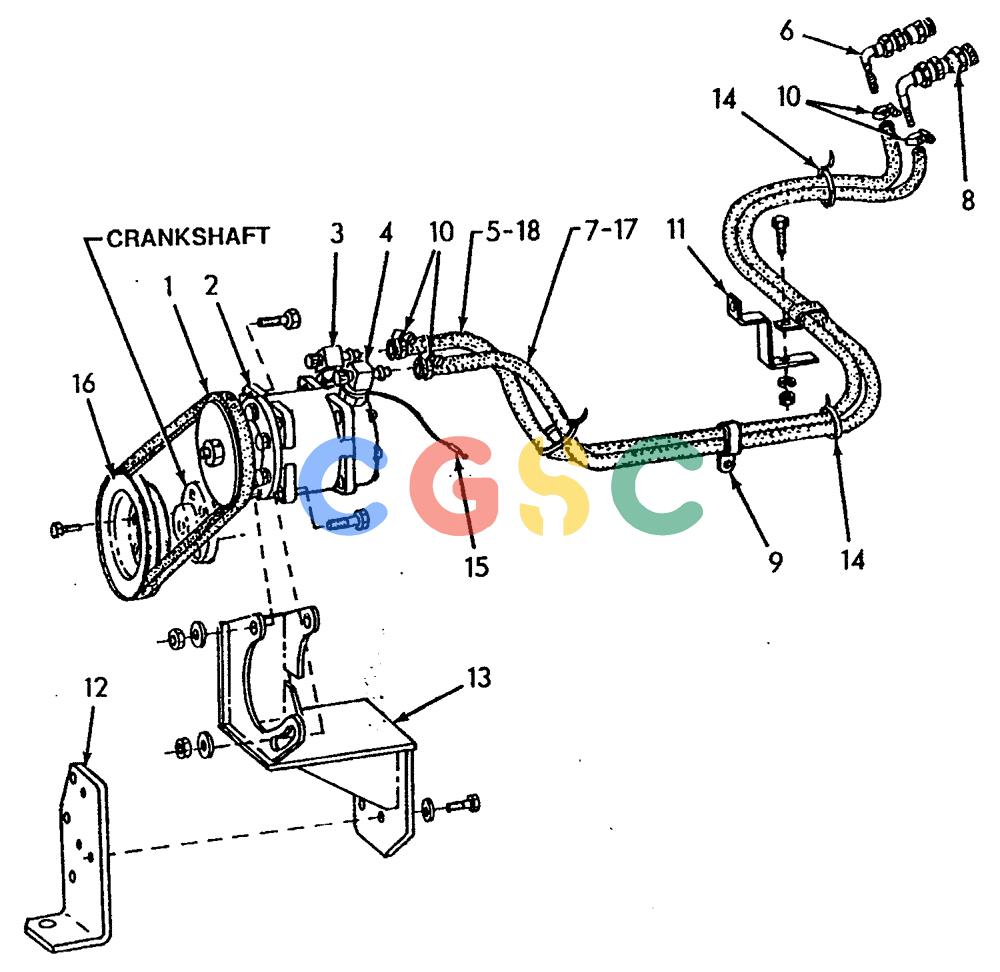

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73118857 | [1] | BELT, TRANSMISSION | CMIBELT |
| 2. | 73158851 | [1] | AIRCOND. COMPRESSOR | NHCOMPRESSOR ASSY. |
| 2. | 11106631 | [3] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 2. | 14496621 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | TTFM10 x 21 x 2 |
| 2. | 11701721 | [3] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 3. | 73144818 | [1] | HYD CONNECTOR | CMIFITTING |
| 4. | 73144819 | [1] | HYD CONNECTOR | CMIFITTING (1/2"" HOSE) |
| 6. | 73134950 | [1] | UNIVERSAL JOINT | CMICOUPLING (1/2"") |
| 8. | 73134951 | [1] | UNIVERSAL JOINT | CMICOUPLING (13/32"") |
| 9. | 70933135 | [2] | CLAMP | CMI |
| 9. | 70922300 | [1] | SCREW | BHBCAPSCREW, 3/8""NC X 3/4"" Superseded by part number: 86500692 |
| 9. | 70929156 | [2] | WASHER,0.41" ID x 0.81" OD x 0.06" Thk | BHB |
| 9. | 70911026 | [1] | NUT | BHB3/8""NC Superseded by part number: 87861 |
| 10. | 73107640 | [4] | CLAMP | CMI |
| 11. | 73133824 | [1] | BRACKET | NH |
| 13. | 73158861 | [1] | BRACKET | NH |
| 13. | 70921076 | [3] | SCREW,3/8"-16 x 1 1/4" | BHB Superseded by part number: 280165 |
| 13. | 70677006 | [3] | WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk | BHB |
| 14. | 70930871 | [3] | COLLAR | CMITIE |
| 15. | 73133825 | [1] | CABLE | NH |
| 16. | 73153340 | [1] | PULLEY | NH |
| 16. | 14274830 | [6] | SCREW | LECCAPSCREW |
| 17. | 70932509 | [1] | FLEXIBLE HOSE | CMIHOSE, 13/32""I.D.X25 FT |
| 18. | 70932510 | [1] | HOSE,12.7mm ID x 7620mm L | CMI1/2""I.D.X 25 FT |
