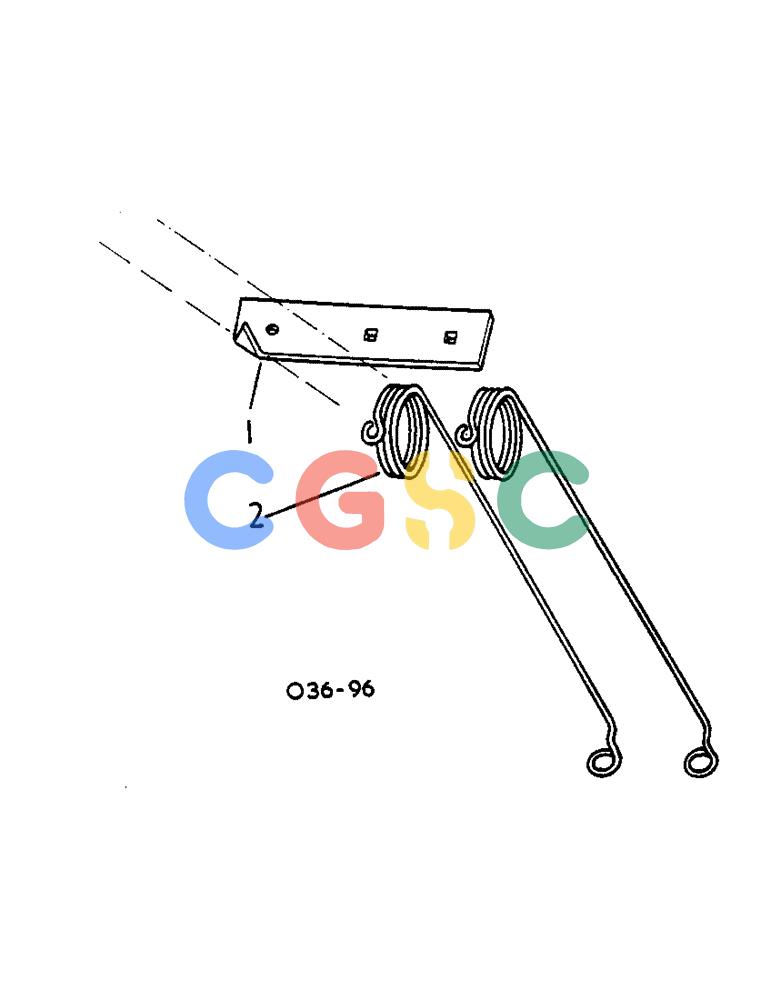

凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-27) - SLACK ARM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3101461R1
|
[1] |
SHIM
|
IH
PLATE, mounting
|
| . . |
18422R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, 3/8 x 1-3/4 crg type 1 Superseded by part number: 411-628
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
3101519R1
|
[2] |
SPRING
|
IH
slack arm
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
| . . |
619856R1
|
[2] |
WASHER
|
IH
.406 x 1.000 x .056 Superseded by part number: 87613182
|
