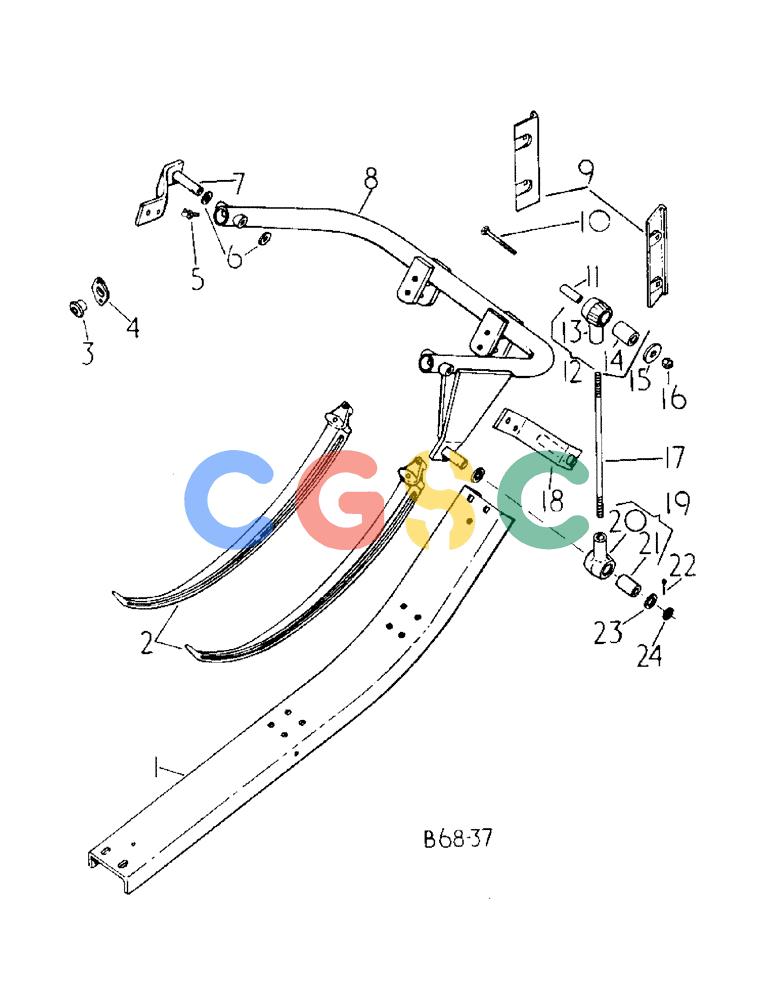

| 1. |
3101460R1
|
[1] |
GUARD
|
IH
needle
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 crg type 1 Superseded by part number: 88682
|
| . . |
102635
|
[2] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[2] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
179858
|
[2] |
SUPPORT
|
NNA
7/16 x 1 pln type 5 Superseded by part number: 413-716
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
7/16 pln type 5
|
| . . |
103322
|
[2] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
607891R1
|
[2] |
WASHER
|
IH
.469 x 1.000 x .054 Superseded by part number: 495-81158
|
| 2. |
3103954R91
|
[2] |
NEEDLE
|
IH
W/PIN, twine, replaces 3102831R1 Superseded by part number: 3102831R1
|
| . . |
19954R1
|
[2] |
DOWEL,5/16" x 5/8"
|
IH
PIN, 5/16 x .625 pln hdn dowel Superseded by part number: 280651
|
| . . |
179895
|
[2] |
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
|
IH
1/2 x 3-1/2 pln type 5 Superseded by part number: 9637417
|
| . . |
179883
|
[4] |
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
|
IH
Superseded by part number: 180175
|
| . . |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[6] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 3. |
3102165R1
|
[4] |
GUIDE
|
IH
twine Superseded by part number: 3102165R2
|
| 4. |
352133R1
|
[4] |
PLATE
|
IH
twine guide mounting
|
| . . |
436732
|
[1] |
SCREW,Slotted Pan Hd, #10-24 x 1/2"
|
IH
no. 10 x 1/2 znp P/HDS mach Superseded by part number: 70-1108
|
| . . |
102361
|
[8] |
NUT, 10-24 hex mach
|
|
| . . |
120217
|
[8] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 5. |
332040
|
[2] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
|
WIN
FITTING, 1/8-27 90 deg angle lub
|
| 6. |
178375R1
|
[1] |
WASHER
|
IH
25/32 x 1-1/4 x .054, or Superseded by part number: 249100
|
| 6. |
551658R1
|
[2] |
WASHER
|
IH
25/32 x 1-1/4 x .027, (or as required) Superseded by part number: 87613196
|
| 7. |
3103293R1
|
[1] |
STRAP
|
IH
ASSY, needle pivot RH
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 8. |
3102825R1
|
[1] |
TUBE,560 mm Length
|
IH
PIPE ASSY, needle tie
|
| . . |
469668R1
|
[2] |
WASHER
|
IH
3/8 lock Superseded by part number: 86632580
|
| 9. |
5179PA
|
[2] |
WEDGE
|
IH
hay
|
| . . |
18508R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
| 10. |
3102833R1
|
[1] |
BOLT,Hex, 5/8" - 11 x 3 1/4"
|
IH
5/8-11 x 3-1/4 hex hd mach
|
| 11. |
3102832R1
|
[1] |
SPACER
|
IH
needle pitman bearing
|
| 12. |
3100713R11
|
[1] |
BALL JOINT
|
IH
BEARING ASSY, needle pitman
|
| 14. |
3100715R1
|
[1] |
BUSHING
|
IH
|
| 15. |
130999
|
[1] |
WASHER,5/8"
|
IH
.633 x 1.750 x .108 Superseded by part number: 195-108
|
| 16. |
202708C1
|
[1] |
NUT
|
IH
3/8 hex lock
|
| 17. |
3102834R1
|
[1] |
STUD
|
IH
SHANK, need pitman
|
| . . |
425-110
|
[2] |
5/8-NF type 5
|
|
| 18. |
3103290R1
|
[1] |
STRAP
|
IH
ASSY, needle pivot LH
|
| 22. |
432-1620
|
[1] |
COTTER PIN,1/4" x 1 1/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 1/4" Superseded by part number: 87402
|
| 24. |
21868V
|
[1] |
WASHER
|
IH
29/32 x 1 x 16 ga Superseded by part number: 86624166
|
