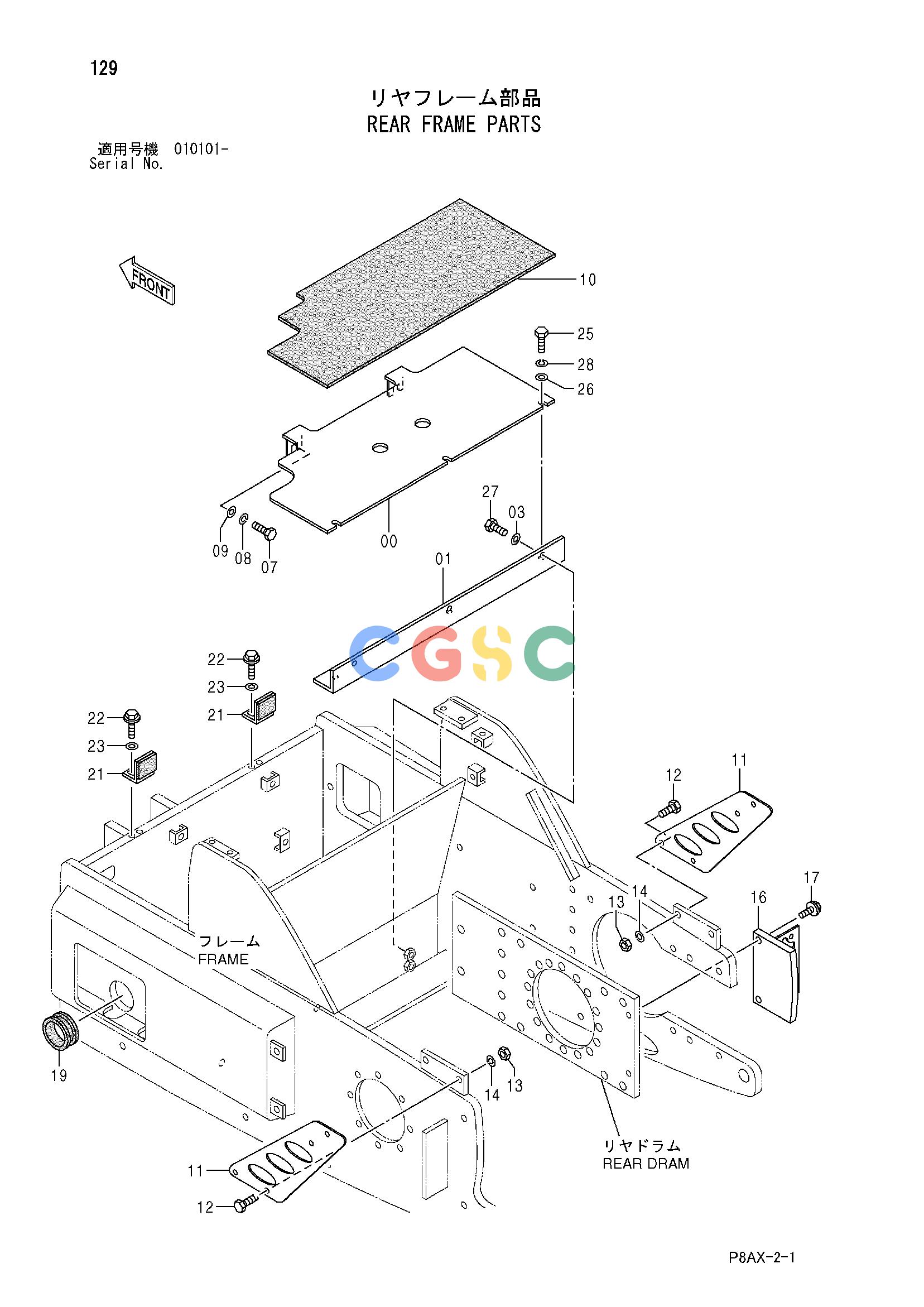

日立零件查询（CS125）REAR FRAME PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425313 | [1] | FLOOR | |
| 01. | 425344 | [1] | BRACKET | |
| 03. | 425066 | [3] | WASHER | |
| 07. | 500123 | [2] | BOLT | |
| 08. | 947890 | [2] | WASHER;SPRING | |
| 09. | 947327 | [2] | WASHER;PLANE | |
| 10. | 425190 | [1] | SEAT;RUBBER | |
| 11. | 425100 | [2] | PLATE | |
| 12. | 947645 | [4] | BOLT | |
| 13. | 947864 | [4] | NUT | |
| 14. | 947888 | [4] | WASHER;SPRING | |
| 16. | 425345 | [1] | PLATE | |
| 17. | 500091 | [2] | BOLT;SEMS | |
| 19. | 424953 | [1] | BUSHING;RUBBER | |
| 21. | 425402 | [2] | BRACKET | |
| 22. | 500048 | [4] | BOLT;SEMS | |
| 23. | 947324 | [4] | WASHER;PLANE | |
| 25. | 500131 | [3] | BOLT | |
| 26. | 425064 | [3] | WASHER | |
| 27. | 947695 | [3] | BOLT | |
| 28. | 947889 | [3] | WASHER;SPRING | |
