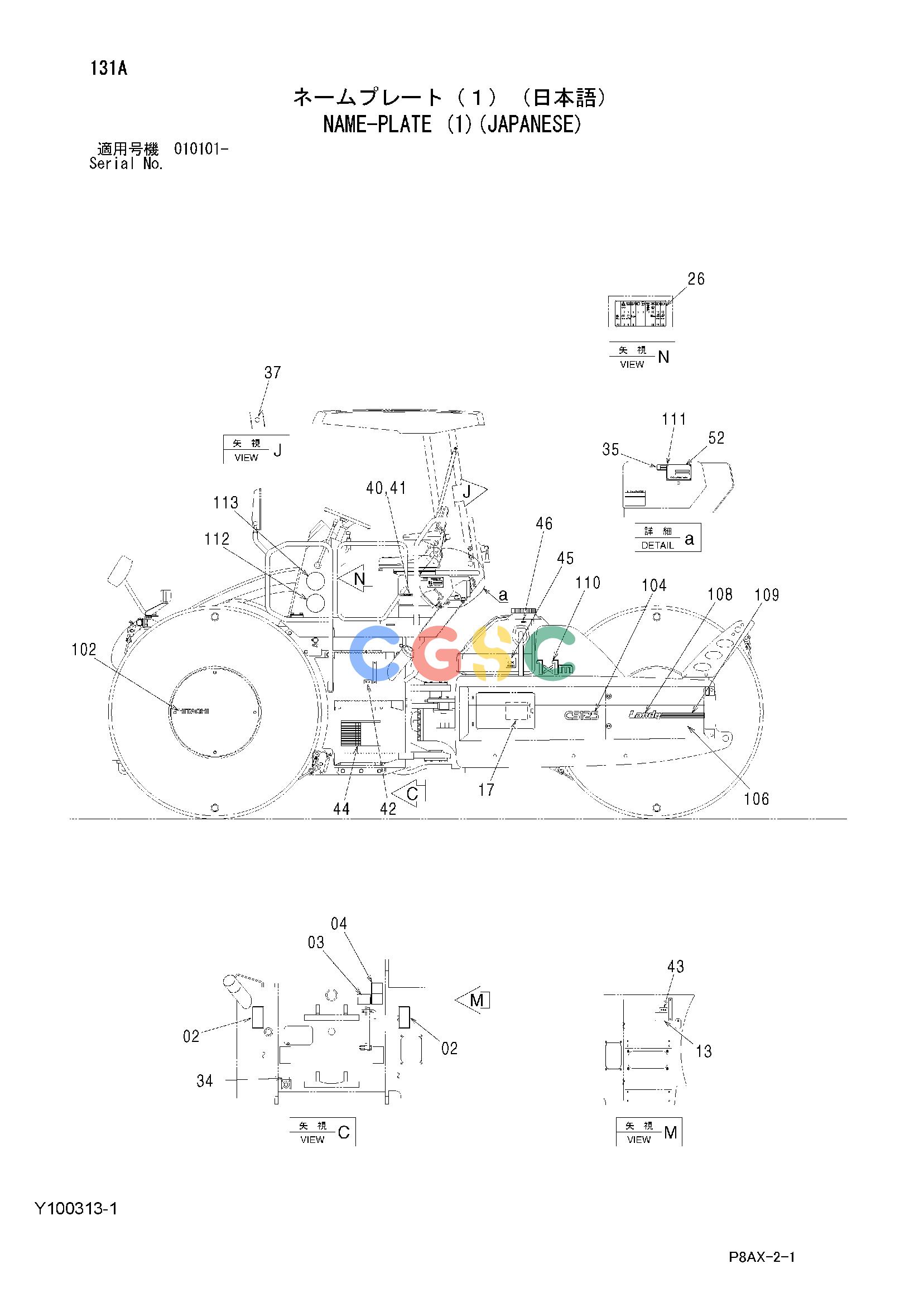

日立零件查询（CS125）NAME-PLATE (1)(JAPANESE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
541 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | Y300745 | [2] | SAFETY-SIGN | |
| 03. | 4334372 | [1] | NAME-PLATE | (LOCK LEVER) |
| 04. | 3085241 | [1] | SAFETY-SIGN | |
| 13. | 3075806 | [1] | NAME-PLATE | (CAUTION FOR HYDRAULIC OIL) |
| 17. | Y302016 | [1] | DECAL | |
| 26. | Y300748 | [1] | NAME-PLATE | (FUSE) |
| 34. | Y404384 | [1] | DECAL | (ENGINE OIL DRAIN) |
| 35. | 4628522 | [1] | NAME-PLATE | |
| 37. | 4087559 | [1] | NAME-PLATE | (STOPPER) |
| 40. | Y300751 | [1] | NAME-PLATE | (GATE LOCK)(L) |
| 41. | Y300752 | [1] | NAME-PLATE | (GATE LOCK)(R) |
| 42. | 4334429 | [1] | NAME-PLATE | (DIESEL FUEL) |
| 43. | 4341046 | [1] | NAME-PLATE | (HYDRAULIC OIL) |
| 44. | Y200130 | [1] | NAME-PLATE | (REPAIR TABLE) |
| 45. | Y402208 | [1] | DECAL | |
| 46. | Y405047 | [1] | NAME-PLATE (670L) | |
| 52. | +++++++ | [1] | NAME-PLATE | (MACHINE MFG. NO.) |
| 102. | Y405031 | [2] | DECAL | (NAME OF COMPANY) |
| 104. | Y405039 | [1] | DECAL | (NAME OF MACHINE: CS125) |
| 106. | Y405036 | [1] | DECAL | |
| 108. | Y405033 | [1] | DECAL (LANDY) | |
| 109. | Y405034 | [1] | DECAL (STRIPE) | |
| 110. | Y200122 | [1] | DECAL (1X1M) | |
| 111. | M492564 | [4] | SCREW;DRIVE | |
| 112. | +++++++ | [1] | NAME-PLATE | (NOISE) |
| 113. | +++++++ | [1] | NAME-PLATE | (EXHAUST GAS) |
