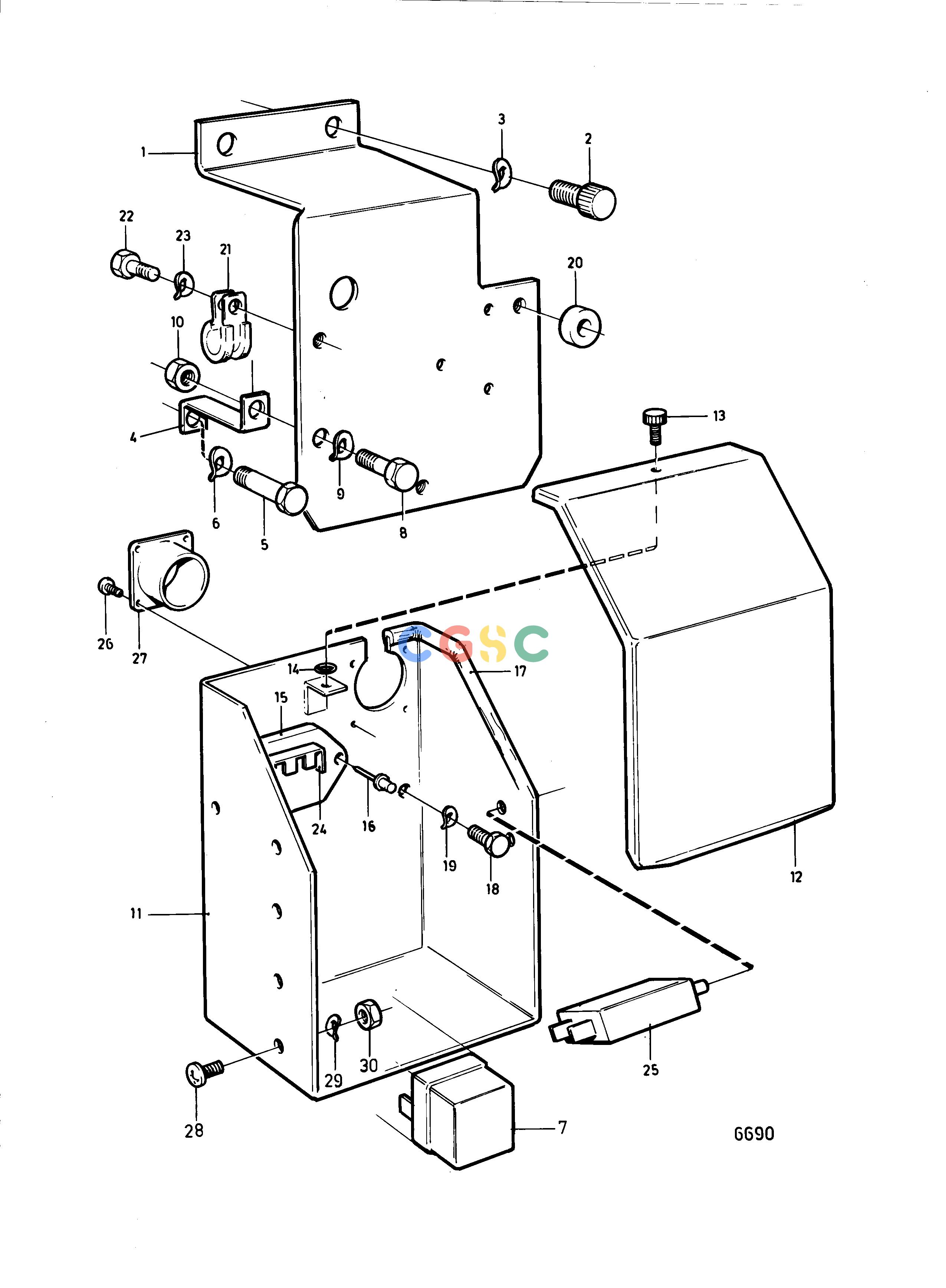

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemElectric Box and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
362 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846819
|
[1] |
Bracket
|
|
| 2. |
940114
|
[2] |
Hexagon screw
|
|
| 3. |
942336
|
[2] |
Spring washer
|
|
| 4. |
846911
|
[1] |
Bracket
|
|
| 5. |
940114
|
[1] |
Hexagon screw
|
|
| 6. |
942336
|
[1] |
Spring washer
|
|
| 7. |
1504951
|
[1] |
Relay
|
24V 150A
|
| 8. |
955524
|
[1] |
Hexagon screw
|
|
| 9. |
941907
|
[1] |
Spring washer
|
|
| 10. |
955826
|
[1] |
Hexagon nut
|
|
| 11. |
846791
|
[1] |
Box
|
|
| 12. |
846662
|
[1] |
Cap
|
|
| 13. |
846736
|
[1] |
Lock screw
|
|
| 14. |
925051
|
[1] |
O-ring
|
|
| 15. |
1234048
|
[1] |
Bottom section
|
|
| 16. |
942670
|
[2] |
Blind rivet
|
|
| 17. |
1214306
|
[1] |
Stop dog
|
|
| 18. |
956094
|
[3] |
Cross recessed screw
|
|
| 19. |
941906
|
[3] |
Spring washer
|
|
| 20. |
807183
|
[3] |
Spacer sleeve
|
|
| 21. |
949747
|
[1] |
Clamp
|
|
| 22. |
955294
|
[1] |
Hexagon screw
|
|
| 23. |
941907
|
[1] |
Spring washer
|
|
| 24. |
1234263
|
[1] |
Pin
|
|
| 25. |
966689
|
[2] |
Fuse
|
8A
|
| 26. |
955119
|
[4] |
Cross recessed screw
|
|
| 27. |
|
|
|
|
| 28. |
956075
|
[5] |
Cross recessed screw
|
|
| 29. |
941905
|
[5] |
Spring washer
|
|
| 30. |
955780
|
[5] |
Hexagon nut
|
|
