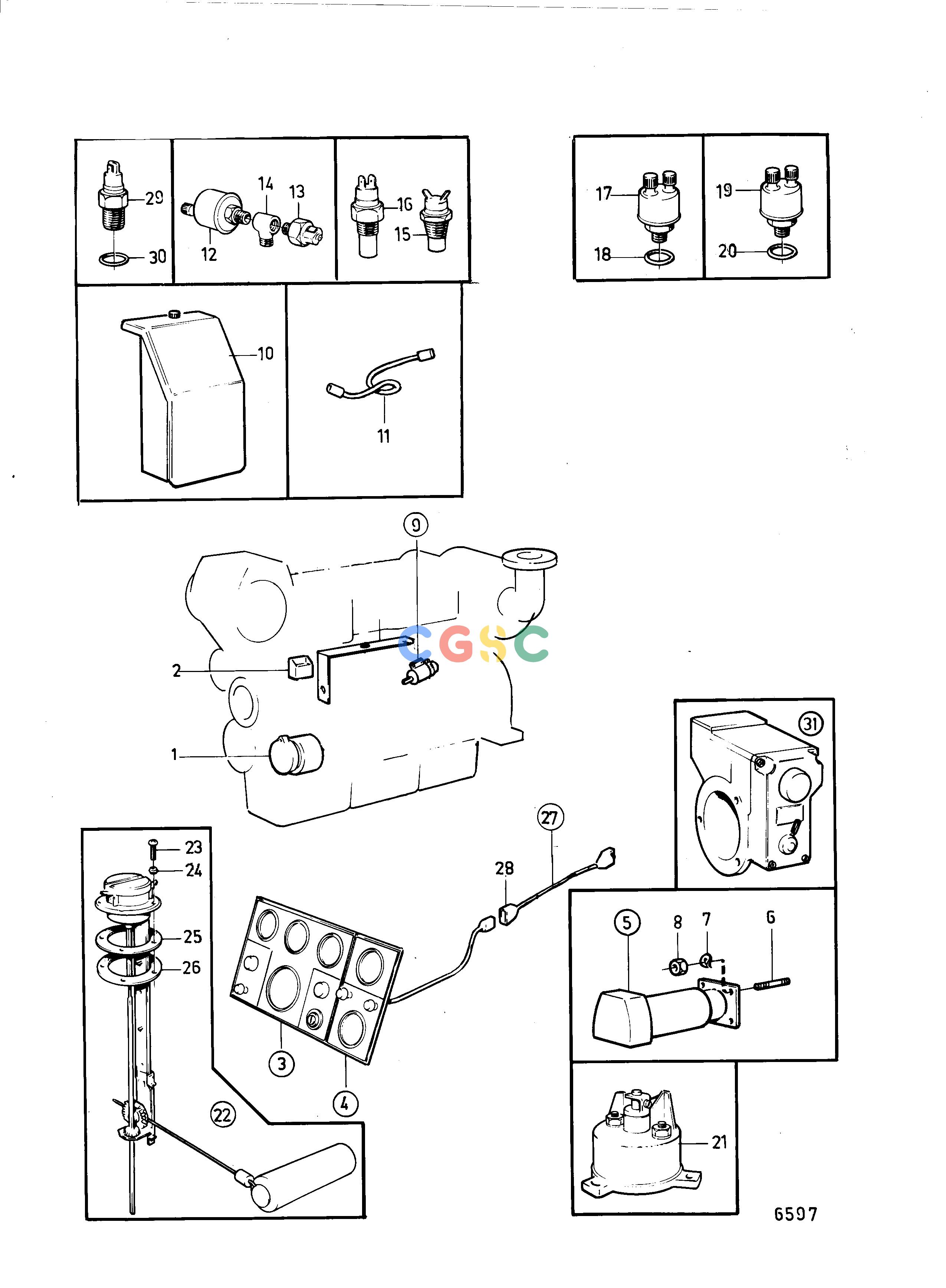

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemElectrical Equipment and Instruments StdEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7742190_104
|
|
alternator and installation comps
|
|
| 1. |
|
|
|
28V 60A
|
| 1. |
7742190_109
|
|
alternator and installation comps
|
|
| 2. |
823766
|
[1] |
Governor
|
28V 60A
|
| 3. |
842567
|
[1] |
Instrument panel
|
24V
|
| 3. |
|
|
|
24V
|
| 4. |
846803
|
[1] |
Instrument panel
|
Not included in alternator 841765., 24V
|
| 4. |
837996
|
[1] |
Instrument panel
|
Not included in alternator 841765., 24V
|
| 5. |
870998
|
[1] |
Starter motor
|
24V repl by 847308
|
| 5. |
847308
|
[1] |
Starter motor
|
24V
|
| 5. |
|
|
|
|
| 6. |
953486
|
[3] |
Stud
|
|
| 7. |
942336
|
[3] |
Spring washer
|
|
| 8. |
955827
|
[3] |
Hexagon nut
|
|
| 9. |
|
|
|
|
| 10. |
7742190_098
|
|
electrical box and installation comps
|
|
| 10. |
|
|
|
|
| 11. |
846616
|
[1] |
Cable block
|
Spec. 867494, 867648.
|
| 12. |
843231
|
[1] |
Oil pressure sensor
|
|
| 13. |
843812
|
[1] |
Contact
|
Alarm (881348)
|
| 14. |
942490
|
[1] |
T-nipple
|
|
| 15. |
827150
|
[1] |
Sensor
|
|
| 16. |
822858
|
[1] |
Thermo monitor
|
Alarm
|
| 17. |
837781
|
[1] |
Oil pressure sensor
|
See group 4A
|
| 18. |
947624
|
[1] |
Gasket
|
|
| 19. |
837782
|
[1] |
Pressure sensor
|
See group 2B
|
| 20. |
947624
|
[1] |
Gasket
|
|
| 21. |
837772
|
[1] |
Position sensor
|
|
| 22. |
837999
|
[1] |
Sensor
|
|
| 23. |
956078
|
[4] |
Cross recessed screw
|
L=16mm
|
| 23. |
956081
|
[1] |
Cross recessed screw
|
L=25mm
|
| 24. |
834481
|
[5] |
Gasket
|
|
| 25. |
89865
|
[1] |
Gasket
|
|
| 26. |
|
|
|
|
| 27. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 27. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 27. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 28. |
7742190_138
|
|
cables and terminals
|
|
| 29. |
354671
|
[1] |
Tachometer sensor
|
See group 2A
|
| 30. |
925059
|
[1] |
O-ring
|
|
| 31. |
7742190_117
|
|
emergency stop
|
|
| 32. |
|
|
|
|
