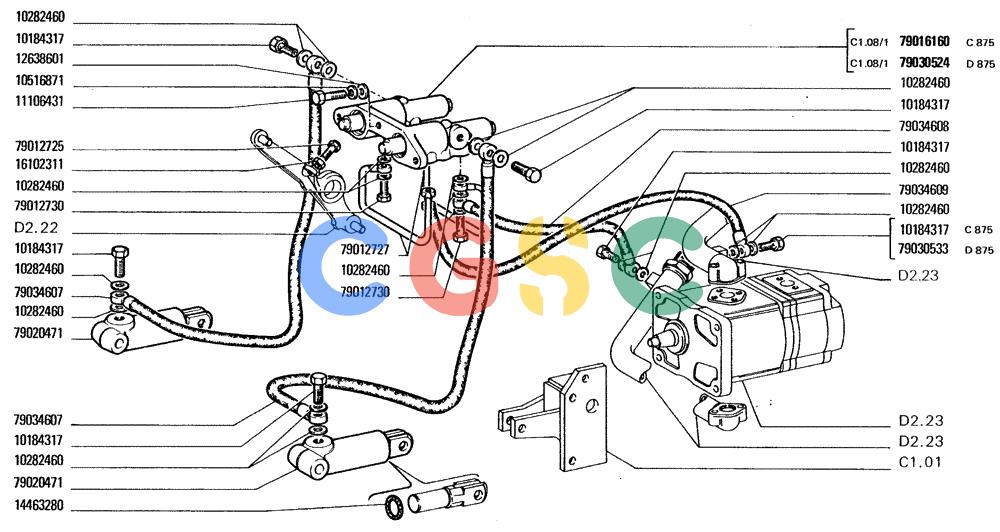

纽荷兰零件查询(FD20) - CRAWLER DOZER (C1.02[002]) - BRAKE HYDRAULIC SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
909 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10184317. | 10184317 | [5] | BANJO BOLT,M14 x 1.5 x 27mm | BHBUNION Superseded by part number: 10184311 |
| 10282460. | 10282460 | [18] | SEALING WASHER,M14.2 x 20 x 1, Copper | MODGASKET Superseded by part number: 4858608 |
| 10516871. | 10516871 | [3] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER Superseded by part number: 10571873 |
| 11106431. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LECSCREW Superseded by part number: 9515003 |
| 12638601. | 12638601 | [3] | WASHER,M10 x 18 x 2 | BHB Superseded by part number: 14499521 |
| 14463280. | 14463280 | [2] | O-RING,24.99mm ID x 3.53" Width | BHB-214, 70 Duro, .984" ID x .139" Thk Superseded by part number: 14463281 |
| 16102311. | 16102311 | [2] | THIN NUT,Thin, M8 x 1.25, Cl 04 | TTF Superseded by part number: 103889 |
| 79012725. | 79012725 | [2] | SCREW | LEC |
| 79012727. | 79012727 | [2] | RIGID TUBE | LECPIPE |
| 79012730. | 79012730 | [2] | BANJO BOLT | LECUNION |
| 79016160. | 79016160 | [1] | HYDRAULIC VALVE | LECVALVE Superseded by part number: 79030524 |
| 79020471. | 79020471 | [2] | CYLINDER | LEC |
| 79027022. | 79027022 | [2] | HOSE | LEC Superseded by part number: 79034607 |
| 79027023. | 79027023 | [1] | HOSE | LEC Superseded by part number: 79034608 |
| 79027024. | 79027024 | [1] | HOSE | LEC Superseded by part number: 79028894 |
| 79030524. | 79030524 | [1] | BODY | LECVALVE |
| 79030533. | 79030533 | [1] | BANJO BOLT | LECUNION |
| 79034607. | 79034607 | [2] | FLEXIBLE HOSE | LECHOSE |
| 79034608. | 79034608 | [1] | FLEXIBLE HOSE | LECHOSE |
| 79034609. | 79034609 | [1] | FLEXIBLE HOSE | LECHOSE |
