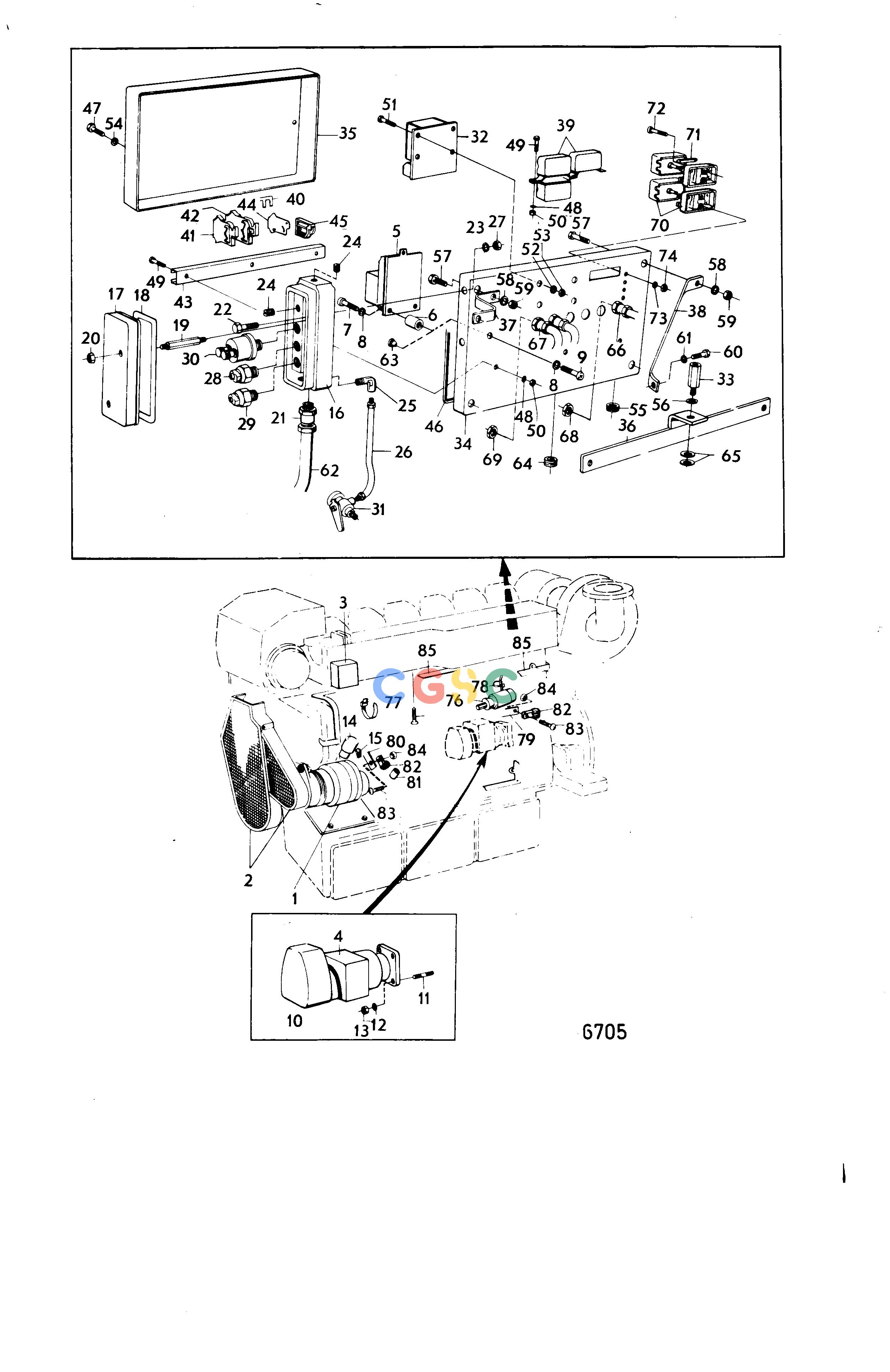

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemElectrical Equipment Classed Marine Auxiliary EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
28V 25A
|
| 2. |
|
|
|
See group 2A
|
| 3. |
7742190_112
|
|
thermoswitch and protecting box with installation comps
|
|
| 4. |
7742190_114
|
|
starter casing with installation comps
|
|
| 5. |
823480
|
[1] |
Charge regulator
|
Bröyt spec. 867510., 24V 25A
|
| 6. |
899709
|
[3] |
Vibration damper
|
|
| 7. |
956091
|
[3] |
Cross recessed screw
|
|
| 8. |
941906
|
[6] |
Spring washer
|
|
| 9. |
956092
|
[3] |
Cross recessed screw
|
|
| 10. |
870998
|
[1] |
Starter motor
|
24V repl by 847308
|
| 10. |
847308
|
[1] |
Starter motor
|
24V
|
| 10. |
|
|
|
|
| 11. |
953486
|
[3] |
Stud
|
|
| 12. |
942336
|
[3] |
Spring washer
|
|
| 13. |
955827
|
[3] |
Hexagon nut
|
|
| 14. |
1507899
|
[1] |
Tachometer sensor
|
|
| 15. |
76614
|
[2] |
Rubber collar
|
|
| 16. |
823486
|
[1] |
Intermediate section
|
|
| 17. |
823487
|
[1] |
Cover
|
|
| 18. |
823490
|
[1] |
Gasket
|
|
| 19. |
823488
|
[2] |
Spacer screw
|
|
| 20. |
950363
|
[2] |
Lock nut
|
|
| 21. |
881192
|
[1] |
Grommet
|
|
| 22. |
940135
|
[3] |
Hexagon screw
|
|
| 23. |
941907
|
[3] |
Spring washer
|
|
| 24. |
16325
|
[3] |
Plug
|
|
| 25. |
180110
|
[1] |
Elbow nipple
|
|
| 26. |
334175
|
[1] |
Hose assembly
|
|
| 27. |
955826
|
[3] |
Hexagon nut
|
|
| 28. |
843812
|
[1] |
Contact
|
Stop
|
| 29. |
843813
|
[1] |
Contact
|
Alarm
|
| 30. |
881432
|
[1] |
Sensor
|
|
| 31. |
836273
|
[1] |
Cock
|
|
| 32. |
837718
|
[1] |
Runaway monitor
|
|
| 33. |
837003
|
[1] |
Spacer screw
|
|
| 34. |
824411
|
[1] |
Clutch housing
|
|
| 35. |
836366
|
[1] |
Cover
|
|
| 36. |
836368
|
[1] |
Bracket
|
|
| 37. |
836367
|
[1] |
Bracket
|
|
| 38. |
836760
|
[1] |
Bracket
|
|
| 39. |
239883
|
[3] |
Relay
|
|
| 40. |
836177
|
[3] |
Current bar
|
|
| 41. |
824159
|
[40] |
Clamp
|
|
| 42. |
824160
|
[5] |
Clamp
|
Early type
|
| 43. |
824161
|
[1] |
Bracket
|
|
| 44. |
824172
|
[2] |
End plate
|
|
| 45. |
824173
|
[2] |
Bracket
|
|
| 46. |
842730
|
[1] |
Sealing strip
|
L=1420mm
|
| 47. |
955284
|
[2] |
Hexagon screw
|
|
| 48. |
941905
|
[5] |
Spring washer
|
|
| 49. |
956076
|
[5] |
Cross recessed screw
|
|
| 50. |
955780
|
[5] |
Hexagon nut
|
|
| 51. |
956061
|
[2] |
Cross recessed screw
|
|
| 52. |
941904
|
[2] |
Spring washer
|
|
| 53. |
955779
|
[2] |
Hexagon nut
|
|
| 54. |
941906
|
[2] |
Spring washer
|
|
| 55. |
662620
|
[2] |
Rubber button
|
AQ290A MO-20459.
|
| 56. |
941912
|
[1] |
Spring washer
|
|
| 57. |
940133
|
[4] |
Hexagon screw
|
|
| 58. |
942336
|
[4] |
Spring washer
|
|
| 59. |
955827
|
[4] |
Hexagon nut
|
|
| 60. |
940135
|
[1] |
Hexagon screw
|
|
| 61. |
941907
|
[1] |
Spring washer
|
|
| 62. |
|
|
|
Can't be used on alternator 841765.
|
| 63. |
655545
|
[3] |
Rubber button
|
AQ290A MO 20460-.
|
| 64. |
94081
|
[6] |
Plug
|
|
| 65. |
955900
|
[2] |
Washer
|
|
| 66. |
881192
|
[5] |
Grommet
|
|
| 67. |
881193
|
[2] |
Grommet
|
|
| 68. |
880243
|
[5] |
Nut
|
|
| 69. |
880755
|
[2] |
Nut
|
|
| 70. |
88578
|
[2] |
Fuse box
|
|
| 71. |
943905
|
[2] |
Fuse, blue
|
25A
|
| 71. |
942785
|
[2] |
Fuse
|
16A
|
| 72. |
956076
|
[4] |
Cross recessed screw
|
|
| 73. |
941905
|
[4] |
Spring washer
|
|
| 74. |
955780
|
[4] |
Hexagon nut
|
|
| 75. |
|
|
|
|
| 76. |
|
|
|
|
| 77. |
335146
|
[1] |
Cable tie
|
|
| 78. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 79. |
837619
|
[1] |
Attaching plate
|
|
| 80. |
837620
|
[1] |
Attaching plate
|
|
| 81. |
241608
|
[1] |
Protetective sleeve
|
|
| 82. |
952627
|
[2] |
Clamp
|
|
| 83. |
950047
|
[2] |
Cross recessed screw
|
|
| 84. |
955825
|
[2] |
Hexagon nut
|
|
| 85. |
|
|
|
|
| 86. |
950158
|
[3] |
Cross recessed sunk
|
Replaced by 1pc alternator 841989 and 1pc PULLby 829312.
|
