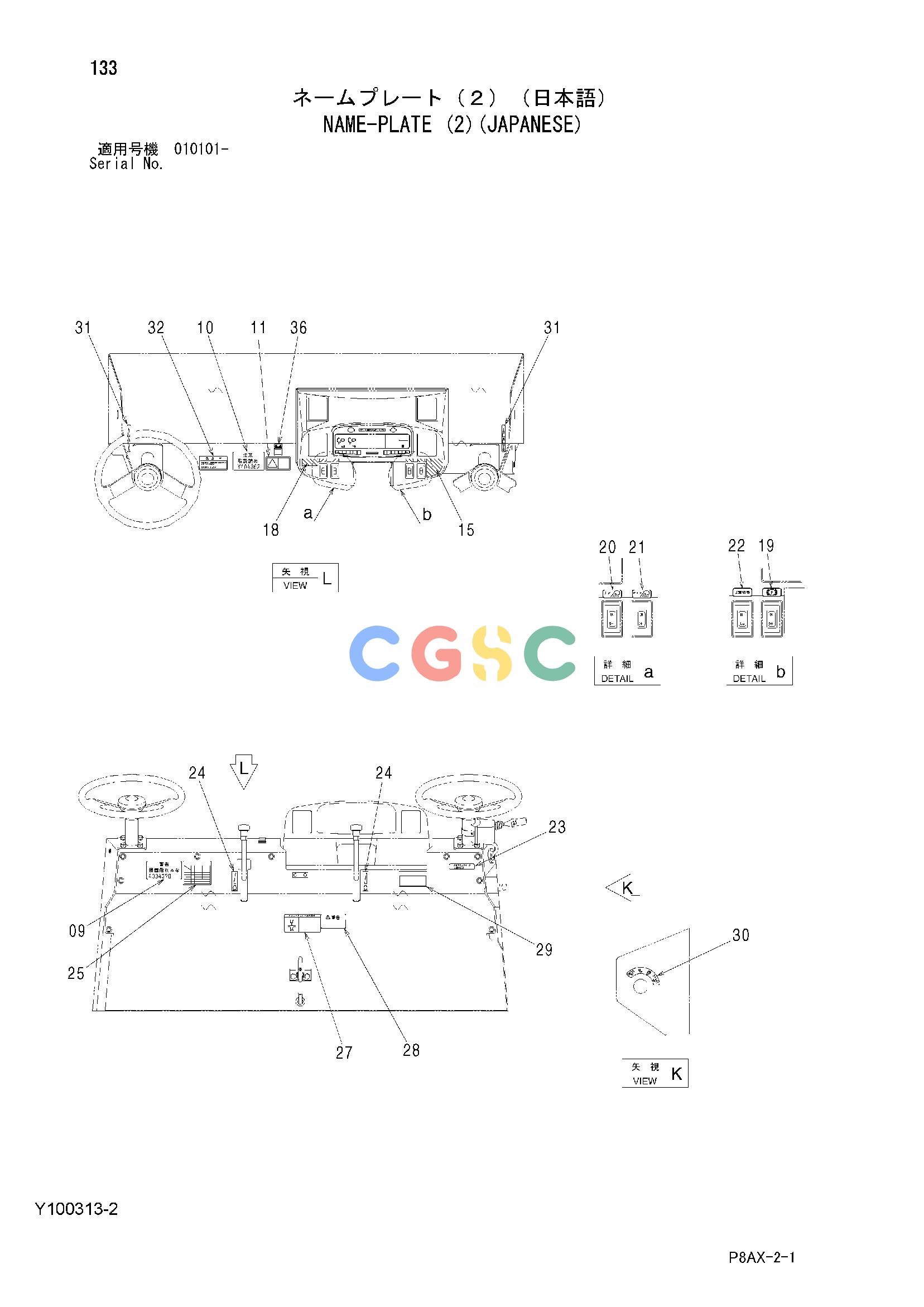

日立零件查询（CS125）NAME-PLATE (2)(JAPANESE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 09. | 4334370 | [1] | NAME-PLATE | (WANING: COMPORNENTS) |
| 10. | Y404382 | [1] | NAME-PLATE | (INTENSIVE READING MANUAL) |
| 11. | 4418273 | [1] | SAFETY-SIGN | (INTENSIVE READING MANUAL) |
| 15. | 4346138 | [1] | NAME-PLATE | (TO START ENGINE) |
| 18. | Y404380 | [1] | NAME-PLATE | (CAUTION: WORKING LAMP) |
| 19. | 4436084 | [1] | NAME-PLATE | (PARKING BRAKE) |
| 20. | Y405044 | [1] | NAME-PLATE | (WORKING LAMP) |
| 21. | Y405045 | [1] | NAME-PLATE | (SIDE WORKING LAMP) |
| 22. | Y405046 | [1] | NAME-PLATE | (FLOW RATE SELECTOR) |
| 23. | 4334550 | [1] | NAME-PLATE | (STEERING) |
| 24. | 4343695 | [2] | NAME-PLATE | (THROTTLE LEVER) |
| 25. | Y300747 | [1] | NAME-PLATE | (SPECIFICATION: CS125) |
| 27. | Y405114 | [1] | NAME-PLATE | (UNLODE) |
| 28. | Y415119 | [1] | NAME-PLATE | (PARKING BRAKE) |
| 29. | Y405118 | [1] | NAME-PLATE | (BRAKE PEDAL) |
| 30. | 4336655 | [1] | NAME-PLATE (KEY SWITCH) | |
| 31. | Y405107 | [2] | NAME-PLATE (FNR) | |
| 32. | Y405106 | [1] | NAME-PLATE | |
| 36. | Y405108 | [1] | NAME-PLATE | |
