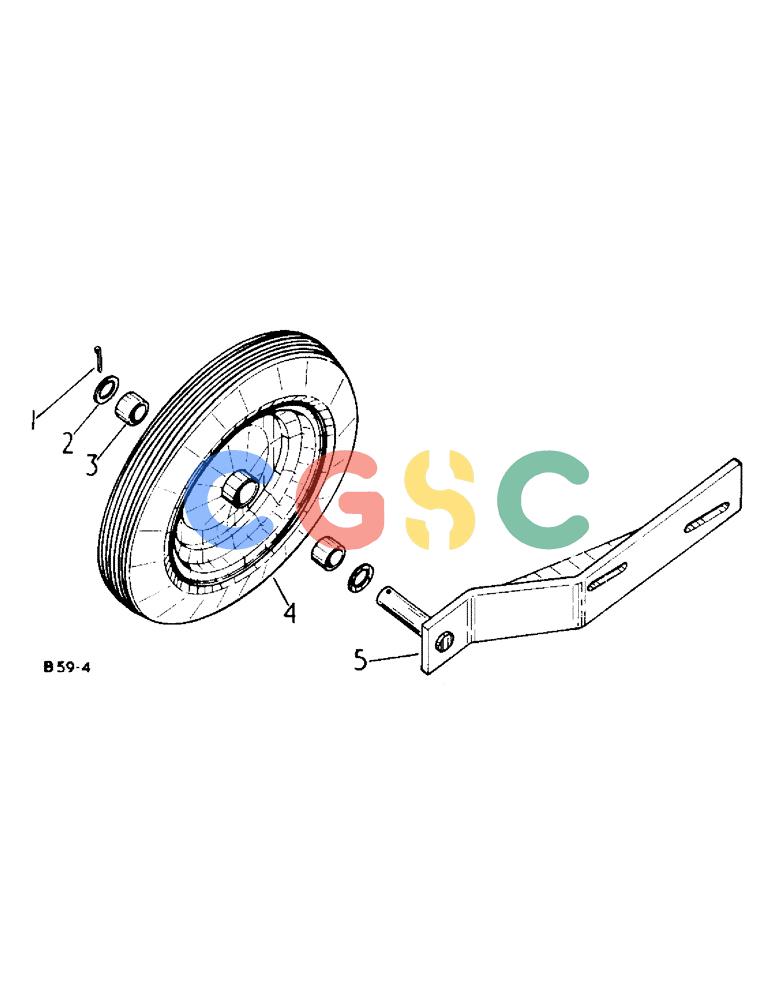

凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-36) - PICKUP GAUGE WHEEL ATTACHMENT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
521 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 2. |
668752R1
|
[4] |
WASHER
|
IH
29/32 x 1-1/4 x 16 ga, (or as required) Superseded by part number: 86624165
|
| 3. |
753885R1
|
[2] |
BUSHING
|
IH
7/8 x 1-1/8 x 3/4 Superseded by part number: 753885R2
|
| 4. |
3102101R91
|
[1] |
WHEEL (STEERING)
|
IH
WHEEL ASSY, pickup Superseded by part number: 753885R1, 3103187R91
|
| 5. |
3102097R1
|
[1] |
BRACKET
|
IH
ASY, pickup
|
| . . |
469668R1
|
[2] |
WASHER
|
IH
.406 x .734 x .056 Superseded by part number: 86632580
|
