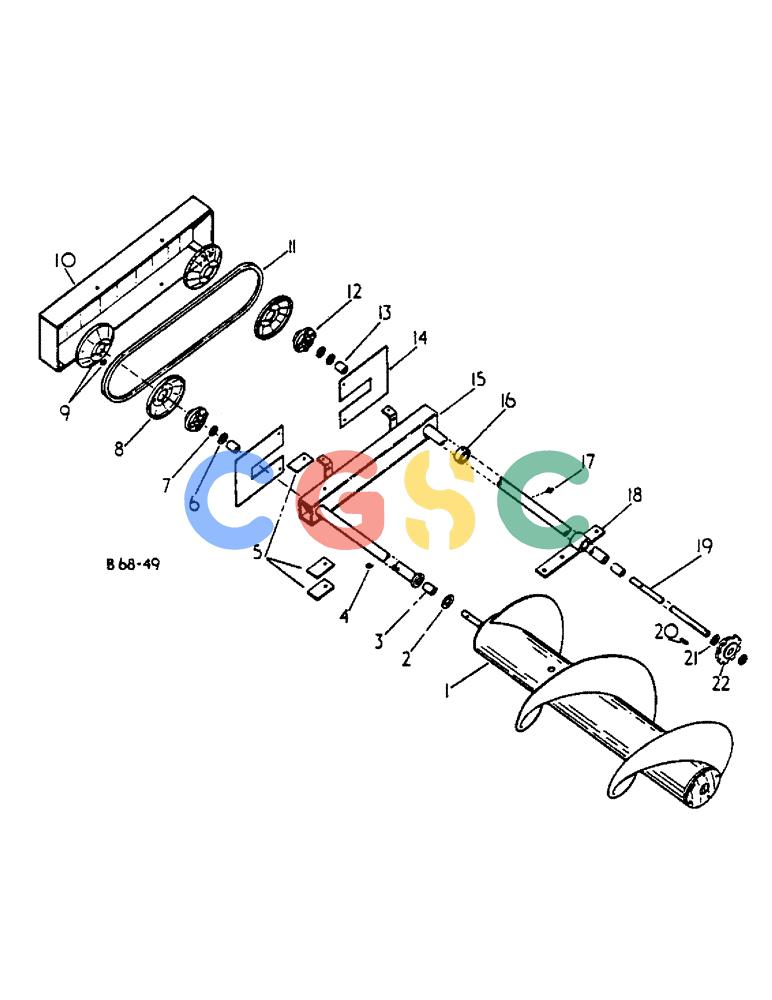

| 1. |
3101782R1
|
[1] |
AUGER
|
IH
ASSY
|
| 2. |
3100617R1
|
[1] |
THRUST WASHER
|
IH
thrust
|
| . . |
NLS
|
[3] |
NO LONGER SERVICED
|
BAS
29/32 x 2 x 16 ga, (or as required)
|
| 3. |
495290R1
|
[2] |
BUSHING
|
IH
|
| 4. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 self tapping lub
|
| . . |
21784R1
|
[1] |
WASHER
|
IH
.266 x .500 x .054 Superseded by part number: 86624137
|
| 5. |
3101792R1
|
[3] |
STOP
|
IH
auger
|
| . . |
18776R1
|
[1] |
BOLT,Hex, 5/16"-18 x 5 1/2", G2
|
IH
5/16 x 5-1/2 type 1 Superseded by part number: 113-180
|
| . . |
632225R1
|
[1] |
LOCK NUT
|
IH
5/16 whiz flanged lock Superseded by part number: 145458
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
.344 x .750 x .054 Superseded by part number: 86637953
|
| 6. |
20703R1
|
[6] |
WASHER
|
IH
29/32 x 1-3/4 x 16 ga, (or as required) Superseded by part number: 495-81059
|
| 7. |
23365R1
|
[4] |
WASHER
|
IH
29/32 x 1-11/32 x 20 ga, (or as required)
|
| 8. |
495480R1
|
[4] |
PULLEY
|
IH
auger drive sheave
|
| 9. |
Q397
|
[40] |
WASHER
|
IH
11/32 x 3/4 x 16 ga Superseded by part number: 95-81069
|
| 10. |
3103016R1
|
[1] |
SHIELD
|
IH
ASSY, auger drive Superseded by part number: 1254002C1
|
| . . |
181591
|
[4] |
BOLT,Hex, 5/16" - 24 x 1/2", Gr 5
|
IH
5/16-NF x 1/2 type 5 Superseded by part number: 181331
|
| . . |
103320
|
[4] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| 11. |
3103014R2
|
[1] |
BELT,1431.69 mm L
|
IH
Auger drive 1431.69 mm L Superseded by part number: 567947R2
|
| 12. |
754621R1
|
[2] |
HUB
|
IH
V sheave
|
| . . |
179822
|
[8] |
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
|
IH
Superseded by part number: 88275
|
| . . |
9635082
|
[8] |
NUT,5/16" - 18, Gr 5
|
NH
5/16 pln hex
|
| 14. |
3103015R1
|
[2] |
PLATE
|
IH
auger drive shield back
|
| 15. |
3102994R91
|
[1] |
ARM
|
IH
W/4 BUSHING 495290R1, auger relief
|
| 16. |
3103005R1
|
[1] |
COLLAR
|
IH
auger pivot tube locking
|
| . . |
22210R1
|
[1] |
SET SCREW,Hex Soc, 5/16"-18 x 1/2"
|
IH
SCREW, 5/16 x 1/2 C/PT znp hdl/s set Superseded by part number: 80442
|
| 18. |
3103001R1
|
[1] |
BEARING ASSY,35.875 mm ID
|
IH
BEARING ASSY, auger pivot tube
|
| . . |
102635
|
[3] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 19. |
3103000R1
|
[1] |
SHAFT
|
IH
auger drive
|
| . . |
21891R1
|
[2] |
HEADED PIN,5/16" x 2"
|
IH
PIN, 5/16 x 2 hd type 1 Superseded by part number: 439-5532
|
| . . |
103384
|
[2] |
COTTER PIN,1/8" x 3/4"
|
IH
Pin, Split (Cotter), 1/8" x 3/4" Superseded by part number: 80755
|
| 20. |
Q53
|
[1] |
KEY,1/4" Sq x 1", Par
|
IH
|
| 21. |
668752R1
|
[7] |
WASHER
|
IH
29/32 x 1-1/4 x 16 ga znd, (or as required) Superseded by part number: 86624165
|
| 22. |
3103007R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, auger drive shaft
|
| . . |
432-1620
|
[1] |
COTTER PIN,1/4" x 1 1/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 1/4" Superseded by part number: 87402
|
