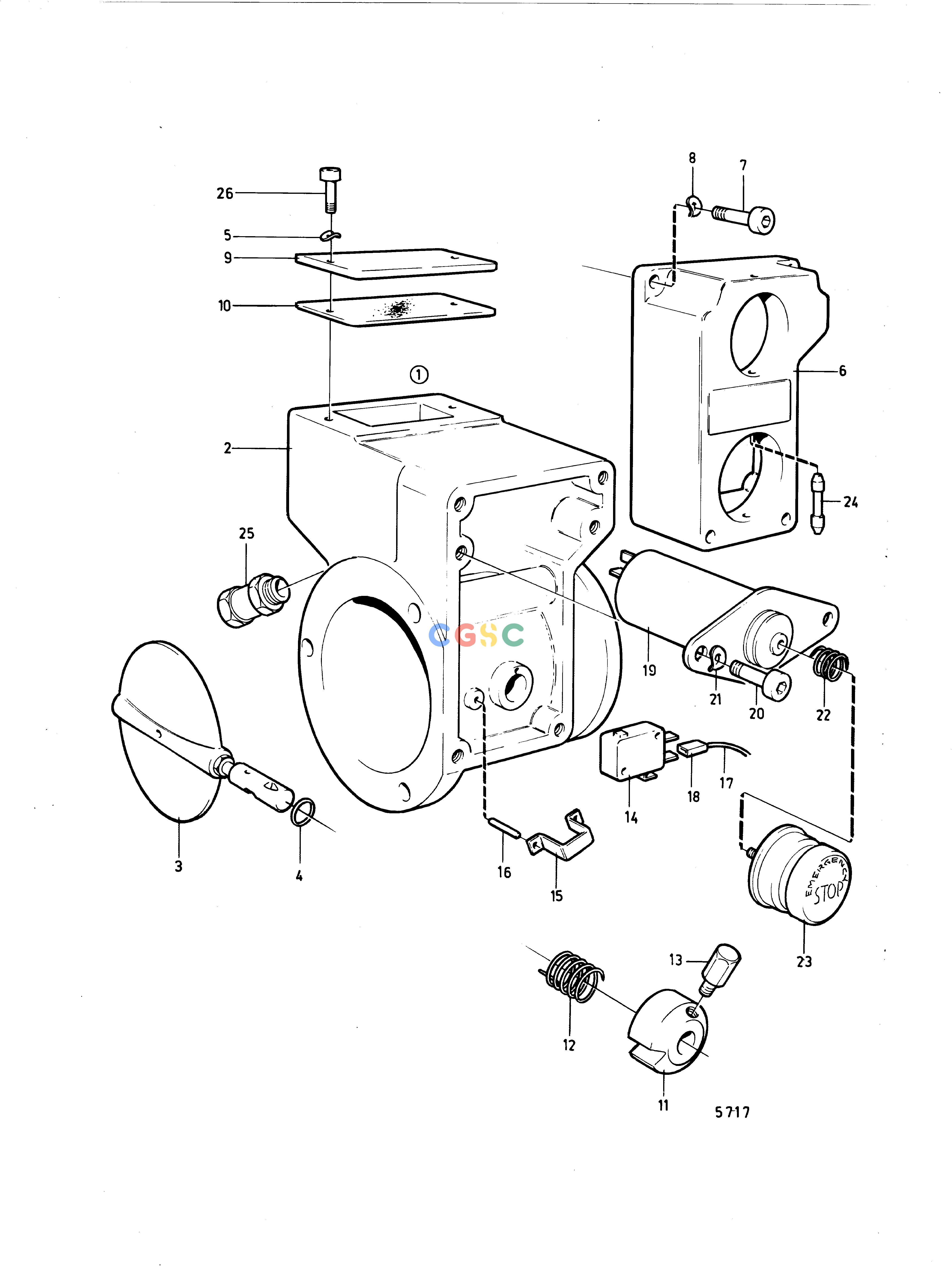

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemEmergency StopEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
240 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845590
|
[1] |
Shutter housing
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
925053
|
[1] |
O-ring
|
|
| 5. |
941905
|
[2] |
Spring washer
|
|
| 6. |
842893
|
[1] |
Cap
|
|
| 7. |
959190
|
[4] |
Hex. socket screw
|
|
| 8. |
941905
|
[4] |
Spring washer
|
|
| 9. |
843696
|
[1] |
Cap
|
|
| 10. |
843697
|
[1] |
Gasket
|
|
| 11. |
842899
|
[1] |
Spacer sleeve
|
|
| 12. |
842898
|
[1] |
Spring
|
|
| 13. |
842903
|
[1] |
Knob
|
|
| 14. |
850200
|
[1] |
Toggle switch
|
|
| 15. |
844574
|
[1] |
Spring
|
|
| 16. |
951938
|
[2] |
Spring pin
|
|
| 17. |
|
|
|
Can't be used on alternator 841765.
|
| 18. |
7742190_138
|
|
cable terminals
|
|
| 19. |
842894
|
[1] |
Stop solenoid
|
|
| 20. |
942001
|
[2] |
Hex. socket screw
|
|
| 21. |
941906
|
[2] |
Spring washer
|
|
| 22. |
842900
|
[1] |
Compression spring
|
|
| 23. |
842897
|
[1] |
Stopping device
|
|
| 24. |
842902
|
[1] |
Spacer sleeve
|
|
| 25. |
844576
|
[1] |
Grommet
|
|
| 26. |
941460
|
[2] |
Hex. socket screw
|
|
