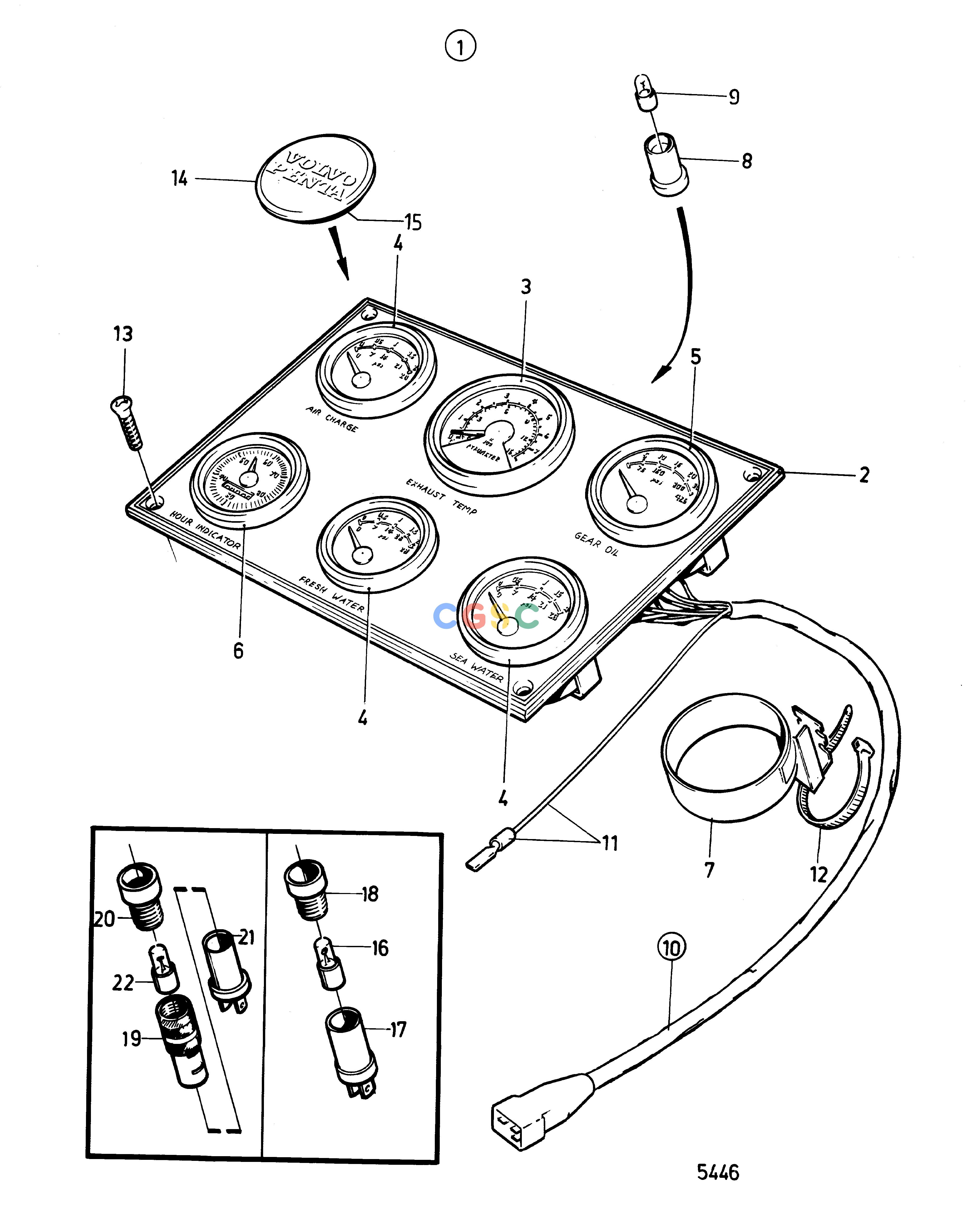

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemInstrument PanelEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
962 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843078
|
[1] |
Instrument panel
|
24V
|
| 2. |
842846
|
[1] |
Instrument plate
|
|
| 3. |
842841
|
[1] |
Pyrometer
|
|
| 4. |
837754
|
[3] |
Instrument
|
|
| 5. |
837747
|
[1] |
Instrument
|
|
| 6. |
845479
|
[1] |
Hour counter
|
(845479)
|
| 7. |
837859
|
[1] |
Anchorage
|
|
| 8. |
808175
|
[6] |
Bulb socket
|
|
| 9. |
182059
|
[6] |
Bulb
|
|
| 10. |
843040
|
[1] |
Cable block
|
|
| 11. |
7742190_138
|
|
cable and cable terminals
|
|
| 11. |
|
|
|
|
| 12. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 13. |
944540
|
[4] |
Screw
|
|
| 14. |
842599
|
[1] |
Cover washer
|
|
| 15. |
842601
|
[1] |
Foil
|
|
| 16. |
182034
|
[2] |
Bulb
|
(277803)
|
| 17. |
355777
|
[2] |
Retainer
|
|
| 18. |
1561793
|
[1] |
Lamp
|
Orange
|
| 18. |
1573962
|
[1] |
Control lamp
|
Green
|
| 19. |
819350
|
[3] |
Sleeve
|
|
| 20. |
827766
|
[3] |
Lens
|
Orange
|
| 21. |
808175
|
[3] |
Bulb socket
|
|
| 22. |
182059
|
[3] |
Bulb
|
|
