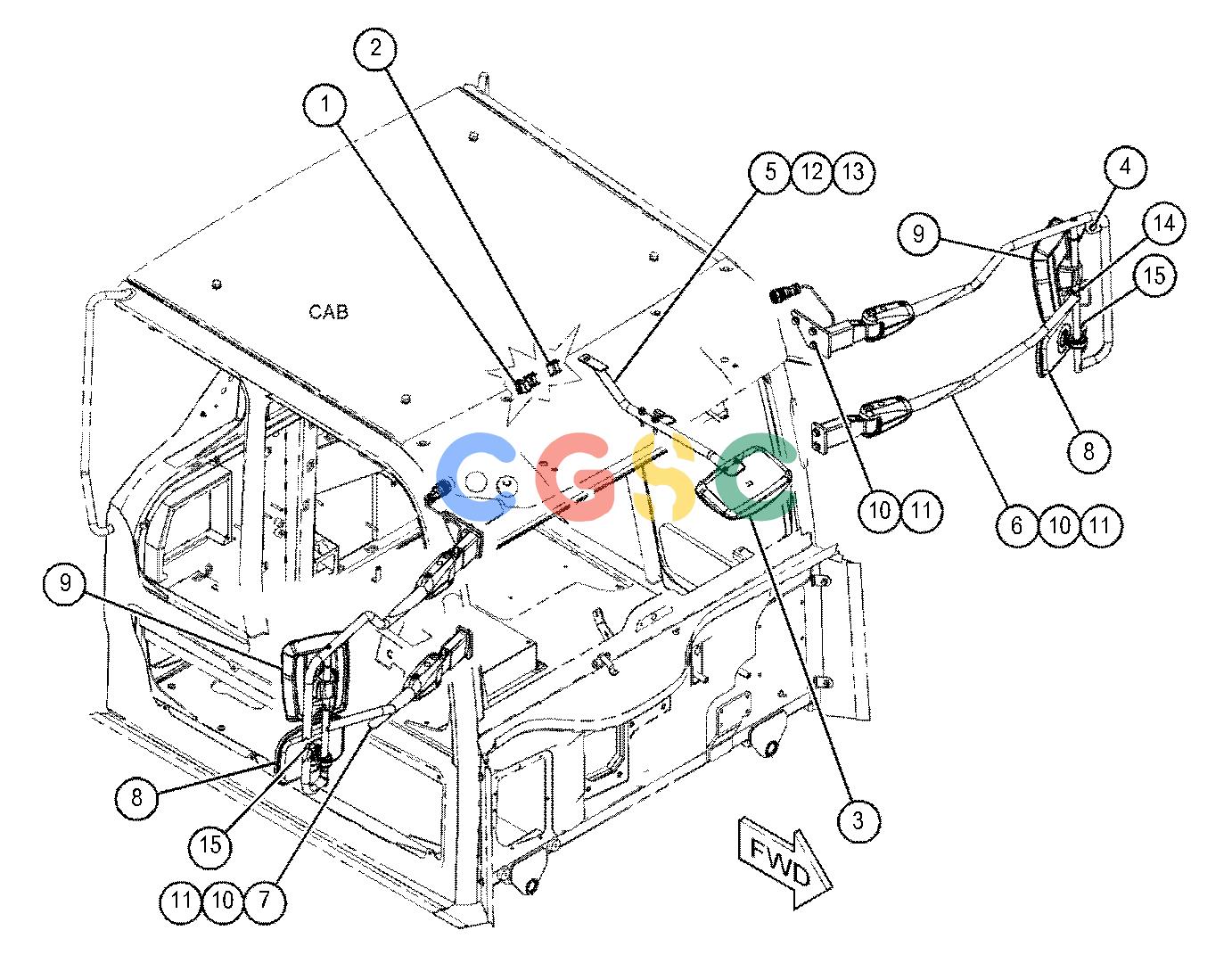

卡特零件查询（730） 500-5946: MIRROR GP-REAR VIEW
广数供应链运营团队, 15 02月, 2025，浏览：
418 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-6089 | [1] | PLUG(ROCKER SWITCH) | |
| 2. | 302-6392 | [2] | PLUG | |
| 3. | 436-2899 | [1] | MIRROR AS(CENTER) | |
| 4. | 456-0632 | [2] | LAMP AS-INDICATOR(12-VOLT, 24-VOLT) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 500-5941 | [1] | ARM AS | |
| 6. | 557-5474 | [1] | ARM AS | |
| 7. | 557-5961 | [1] | ARM AS | |
| | | | (EACH ARM AS INCLUDES) |
| | 331-4226 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 359-5179 | [1] | PLUG AS-CONNECTOR(14-PIN) | |
| 8. | 512-2408 | [2] | MIRROR AS | |
| 9. | 526-5057 | [2] | MIRROR AS | |
| 10. | 5P-8245 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4192M | [10] | BOLT(M12X1.75X25-MM) | |
| 12. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 14. | 3S-2093 | [6] | STRAP-CABLE | |
| 15. | 220-4081 | [4] | CAP | |
| | M | | METRIC PART |
