卡特零件查询（730） 500-5947: MIRROR GP-REAR VIEW
广数供应链运营团队, 15 02月, 2025，浏览：
747 次

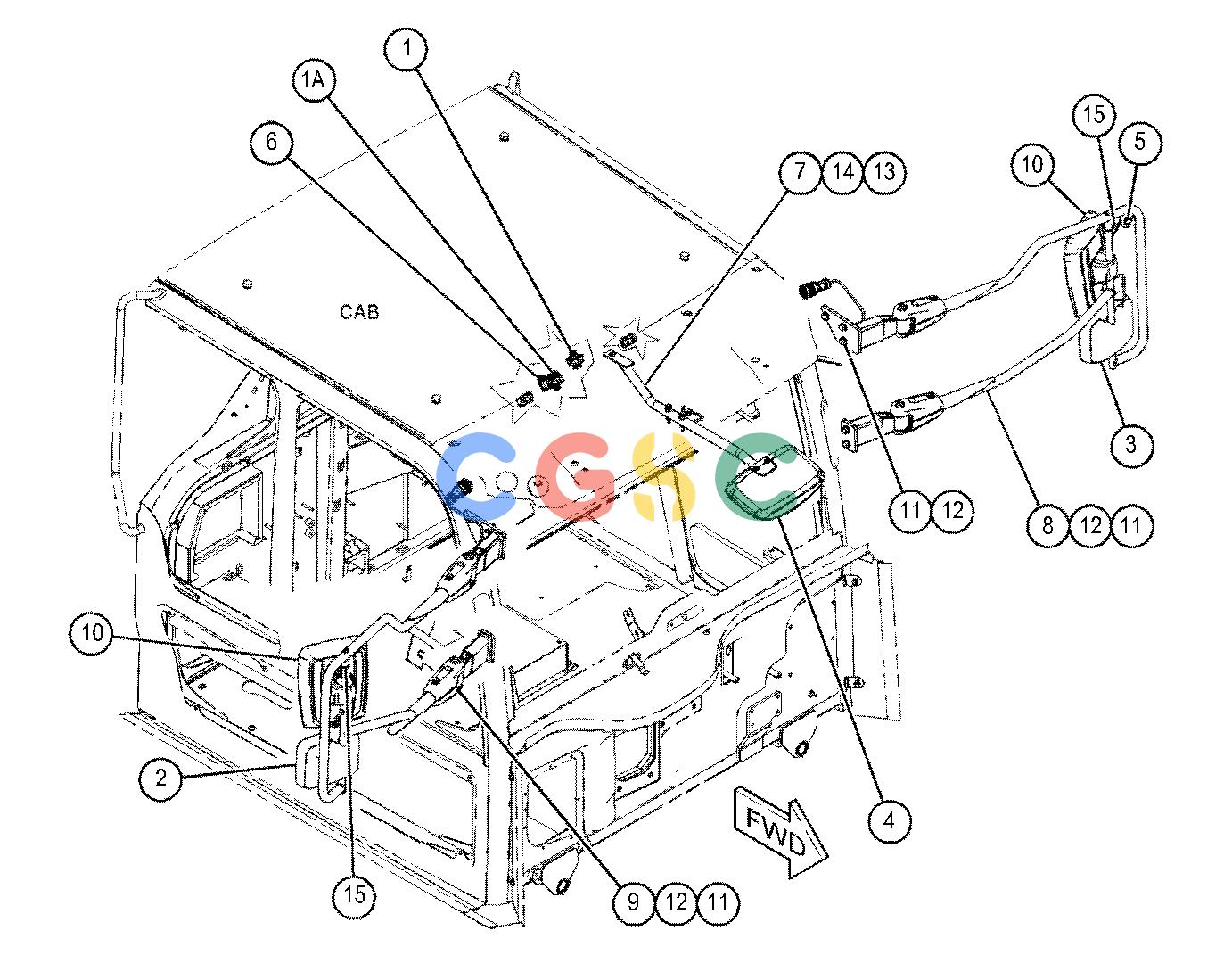

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 337-6640 | [1] | SWITCH AS-POSITION(MIRROR)(LH) | |
| 1A. | 337-6640 | [1] | SWITCH AS-POSITION(MIRROR)(RH) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 8T-8729 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 231-2300 | [1] | RECEPTACLE AS-CONNECTOR(8-PIN) | |
| 2. | 353-3585 | [1] | MIRROR-CONVEX(RH) | |
| 3. | 353-3587 | [1] | MIRROR-CONVEX(LH) | |
| 4. | 443-2539 | [1] | MIRROR AS(RH) | |
| 5. | 456-0632 | [2] | LAMP AS-INDICATOR(12-VOLT, 24-VOLT)(WHITE) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| 6. | 468-8078 | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| | 111-7899 | [1] | GASKET | |
| 7. | 500-5941 | [1] | ARM AS(MIRROR) | |
| 8. | 557-5474 | [1] | ARM AS | |
| 9. | 557-5961 | [1] | ARM AS | |
| | | | (EACH ARM AS INCLUDES) |
| | 359-5179 | [1] | PLUG AS-CONNECTOR(14-PIN) | |
| | 331-4226 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| 10. | 508-0795 | [2] | MIRROR AS(FRONT) | |
| 11. | 5P-8245 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4192M | [10] | BOLT(M12X1.75X25-MM) | |
| 13. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 15. | 3S-2093 | [2] | STRAP-CABLE | |
| | M | | METRIC PART |
