凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-43) - BALE COUNTER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
481 次

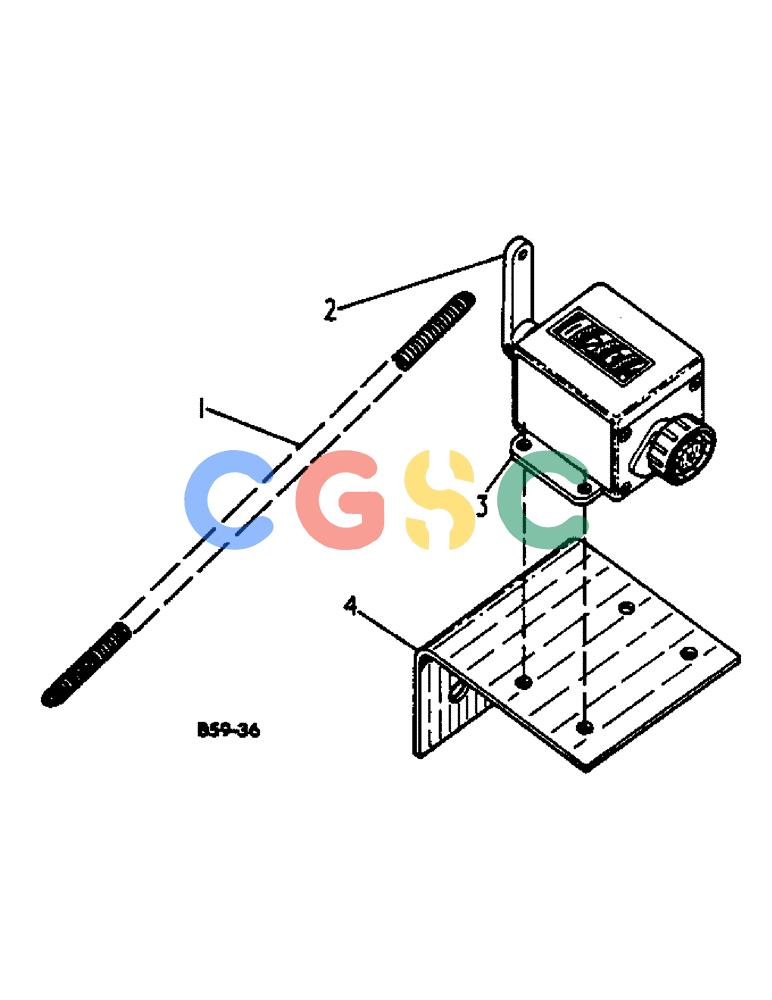

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
495525R1
|
[1] |
SPRING
|
IH
bale counter
|
| . . |
125637
|
[1] |
COTTER PIN,1/8" x 2"
|
IH
PIN, SPLIT (COTTER), 1/8" x 2" Superseded by part number: 86523955
|
| 2. |
204005R1
|
[1] |
ARM
|
IH
w/set screw, bale counter Superseded by part number: 656707R91
|
| 3. |
753668R91
|
[1] |
COUNTER
|
IH
w/attaching hardware bale, or
|
| 3. |
753312R91
|
[1] |
COUNTER
|
IH
w/attaching hardware bale Superseded by part number: 753668R91
|
| . . |
131835
|
[4] |
SCREW,Sl Fil Hd, #4 - 40 x 3/8"
|
IH
no. 4 x 3/8 znp fil/hds mach
|
| . . |
131043
|
[4] |
LOCK WASHER,#4
|
IH
Washer, Lock, #4 Superseded by part number: 84877
|
| . . |
101963H
|
[4] |
WASHER
|
IH
9/64 x 3/8 x 22 ga C-Z Superseded by part number: 86511189
|
| 4. |
662364R1
|
[1] |
BRACKET
|
IH
PLATFORM, bale counter
|
| . . |
120583
|
[2] |
SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"
|
IH
1/4 x 5/8 znp r/hds mach Superseded by part number: 86511931
|
| . . |
109084
|
[2] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
103319
|
[2] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
