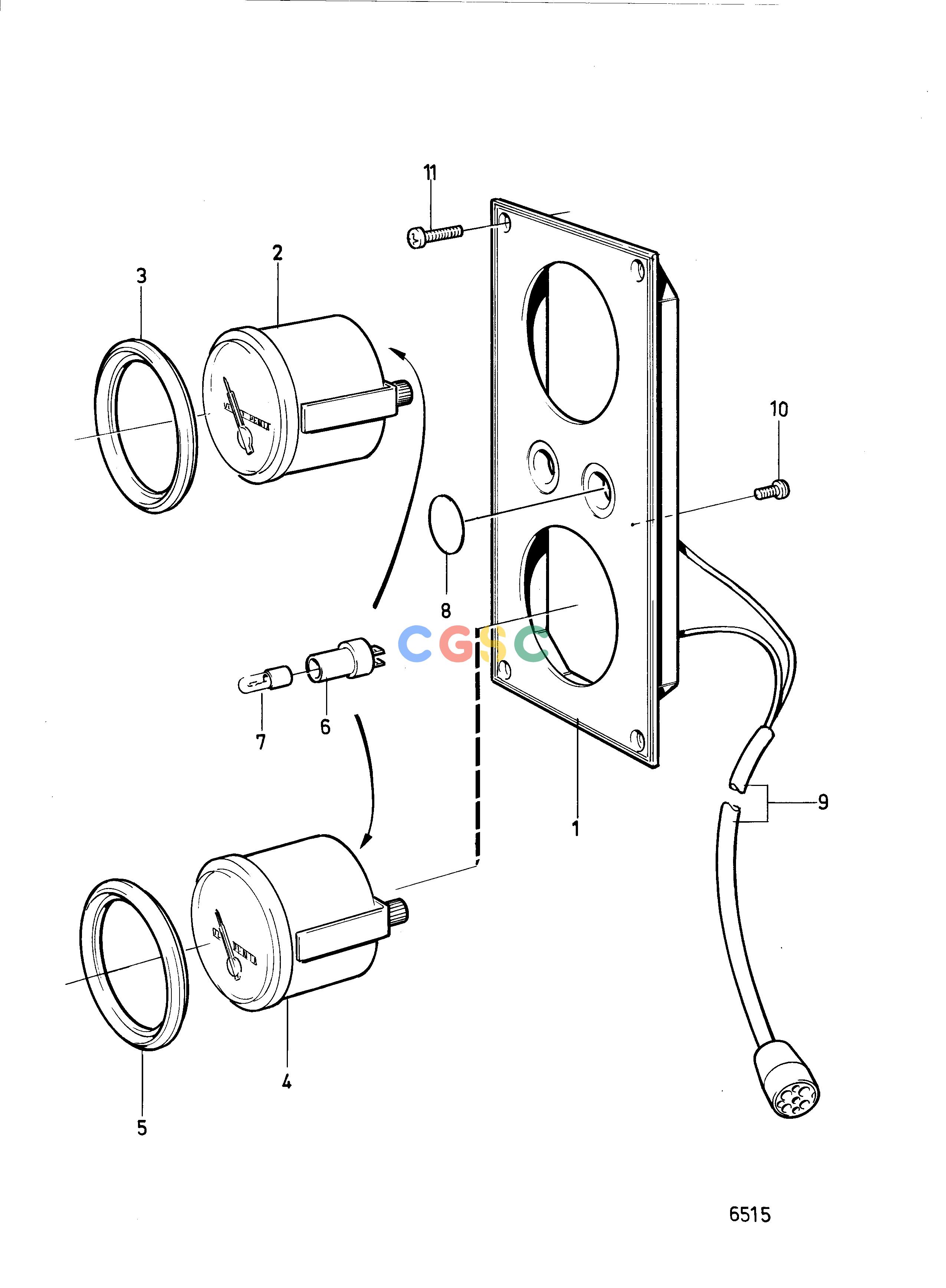

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemInstrument Panel and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828604
|
[1] |
Instrument panel
|
|
| 2. |
828622
|
[1] |
Oil pressure gauge
|
|
| 3. |
828542
|
[1] |
Front ring
|
|
| 4. |
828626
|
[1] |
Pressure gauge
|
|
| 5. |
828542
|
[1] |
Front ring
|
|
| 6. |
808175
|
[2] |
Bulb socket
|
|
| 7. |
182059
|
[2] |
Bulb
|
|
| 8. |
828607
|
[2] |
Cover plate
|
|
| 9. |
|
|
|
Spec. 867057, 867058, 867059, 867279.
|
| 10. |
949947
|
[1] |
Cross recessed screw
|
(966832)
|
| 11. |
828647
|
[4] |
Screw
|
|
