斗山零件查询BRAKE PIPING(1) SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

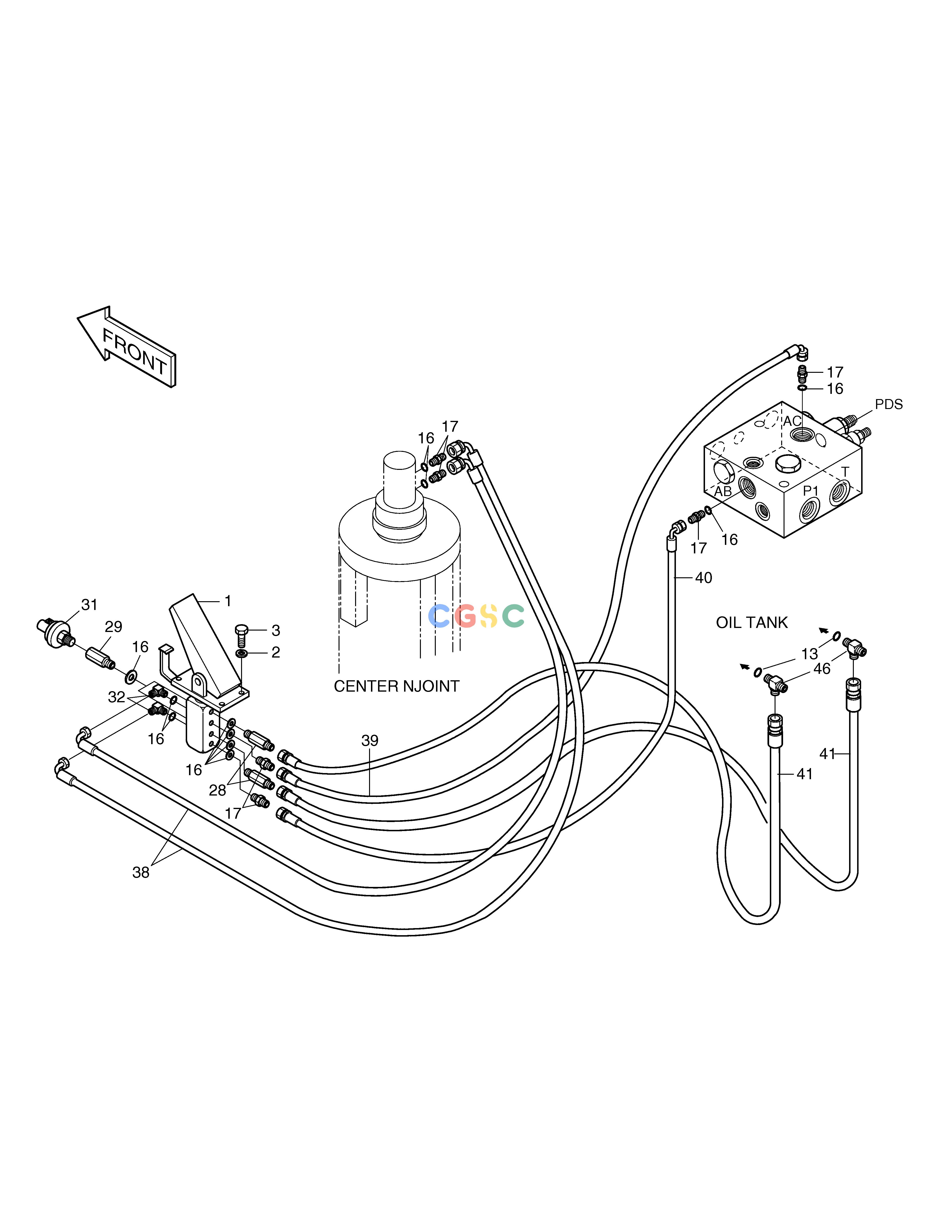

400-01227
|
[-] |
BRAKE PIPING
|
|
| 1. |
2420-9428C
|
[1] |
VALVE;FOOT BRAKE
|
|
| 13. |
S8000181
|
[1] |
O-RING
|
|
| 16. |
S8000141
|
[12] |
O-RING
|
|
| 17. |
2181-1126D7
|
[6] |
ADAPTER
|
|
| 2. |
S5102503
|
[4] |
. WASHER
|
|
| 28. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 29. |
181-00182
|
[2] |
REDUCER
|
|
| 3. |
S0555753
|
[4] |
BOLT M8X1.25X25
|
|
| 31. |
549-00010
|
[2] |
SWITCH;PRESSURE
|
|
| 32. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 38. |
2184-1129D22
|
[2] |
HOSE (90-90)PF3/8-2050L
|
|
| 39. |
2184-1036D46
|
[1] |
HOSE PF3/8-2700L
|
|
| 40. |
2184-1036D90
|
[1] |
HOSE PF3/8-2600L
|
|
| 41. |
2184-1026D425
|
[2] |
HOSE PF3/8-4350L
|
|
| 46. |
2181-1951D23
|
[2] |
TEE
|
|
