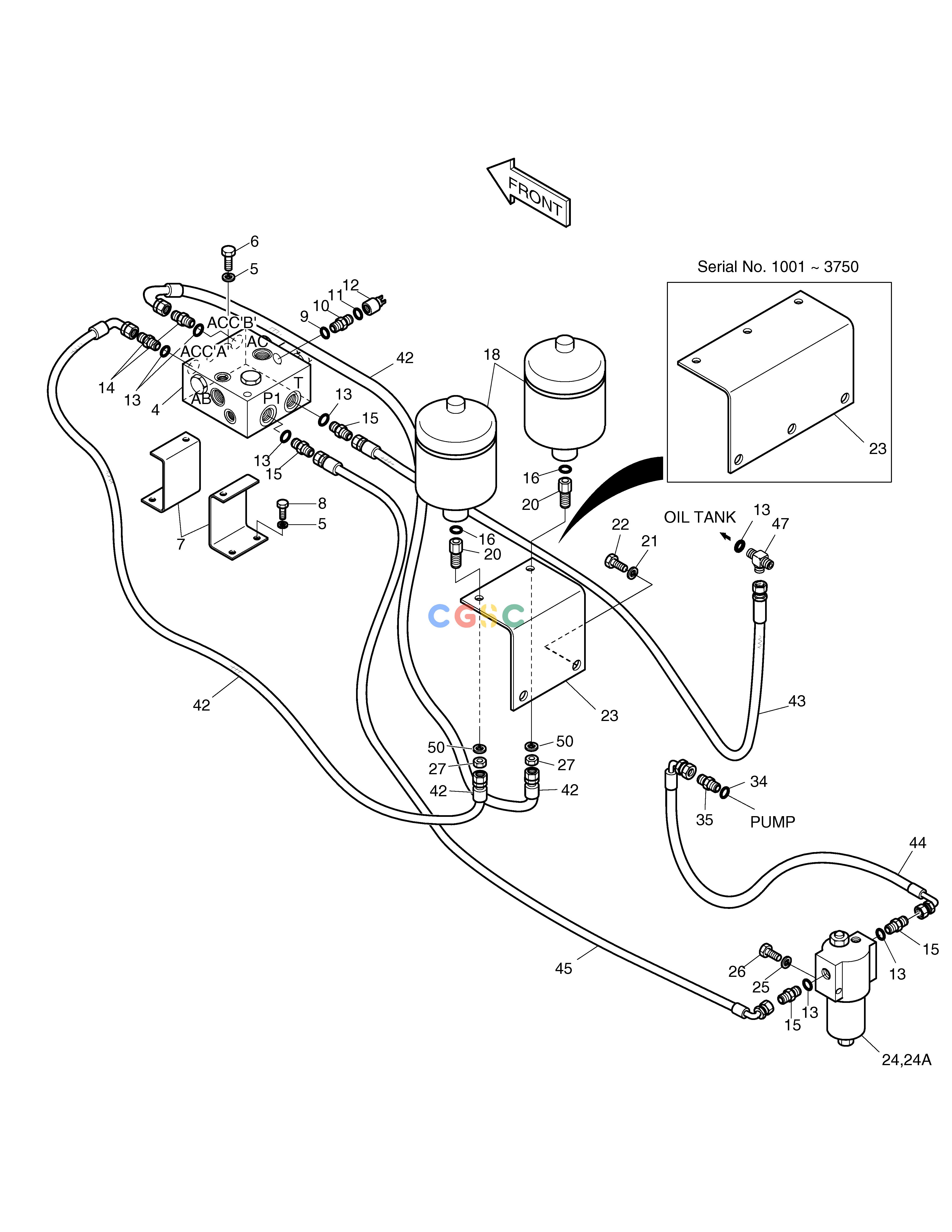

斗山零件查询BRAKE PIPING(2) SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
379 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01227A
|
[-] |
BRAKE PIPING
|
|
| 10. |
2181-2180
|
[1] |
ADAPTER PF1/4-PFO1/4
|
|
| 11. |
S8180211
|
[1] |
SEAL;RING
|
|
| 12. |
2549-9093
|
[1] |
SWITCH;LOW PRESSURE
|
|
| 13. |
S8000181
|
[7] |
O-RING
|
|
| 14. |
2181-1126D23
|
[2] |
ADAPTER
|
|
| 15. |
2181-1126D6
|
[4] |
ADAPTER
|
|
| 16. |
S8000141
|
[2] |
O-RING
|
|
| 18. |
2460-9055
|
[2] |
ACCUMULATOR
|
|
| 20. |
181-00524
|
[2] |
ADAPTER
|
|
| 21. |
S5102703
|
[3] |
WASHER
|
|
| 21. |
S5102703
|
[2] |
WASHER
|
|
| 22. |
S0515953
|
[3] |
BOLT M12X1.75X65
|
|
| 22. |
S0515953
|
[2] |
BOLT M12X1.75X65
|
|
| 23. |
195-02381
|
[1] |
BRACKET
|
|
| 23. |
K1025564
|
[1] |
BRACKET
|
|
| 24. |
471-00024A
|
[1] |
FILTER;BRAKE(EXPORT)
|
|
| 24. |
471-00061
|
[1] |
FILTER;BRAKE
|
|
| 24A. |
474-00009
|
[1] |
ELEMENT;BRAKE FILTER
|
|
| 25. |
S5102303
|
[2] |
. WASHER
|
|
| 26. |
S0553753
|
[2] |
BOLT
|
|
| 27. |
121-00010D1
|
[2] |
NUT
|
|
| 34. |
S8040101
|
[1] |
O-RING
|
|
| 35. |
2181-1126D3
|
[1] |
ADAPTER
|
|
| 4. |
2420-9325A
|
[1] |
VALVE;BRAKE SUPPLY
|
|
| 42. |
2184-1036D256
|
[2] |
HOSE PF3/8-650L
|
|
| 43. |
2184-1026D388
|
[1] |
HOSE PF1/2-2200L
|
|
| 44. |
2184-1096D146
|
[1] |
HOSE PF1/2-1080L
|
|
| 45. |
2184-1036D51
|
[1] |
HOSE PF1/2-2500L
|
|
| 47. |
2181-1951D8
|
[1] |
TEE
|
|
| 5. |
S5102603
|
[4] |
. WASHER
|
|
| 50. |
S5111001
|
[2] |
WASHER;SPRING
|
|
| 6. |
S0559353
|
[2] |
BOLT M10X1.5X90
|
|
| 7. |
2197-1552B
|
[2] |
BRACKET
|
|
| 8. |
S0511853
|
[4] |
BOLT
|
|
| 9. |
S8000111
|
[1] |
O-RING
|
|
