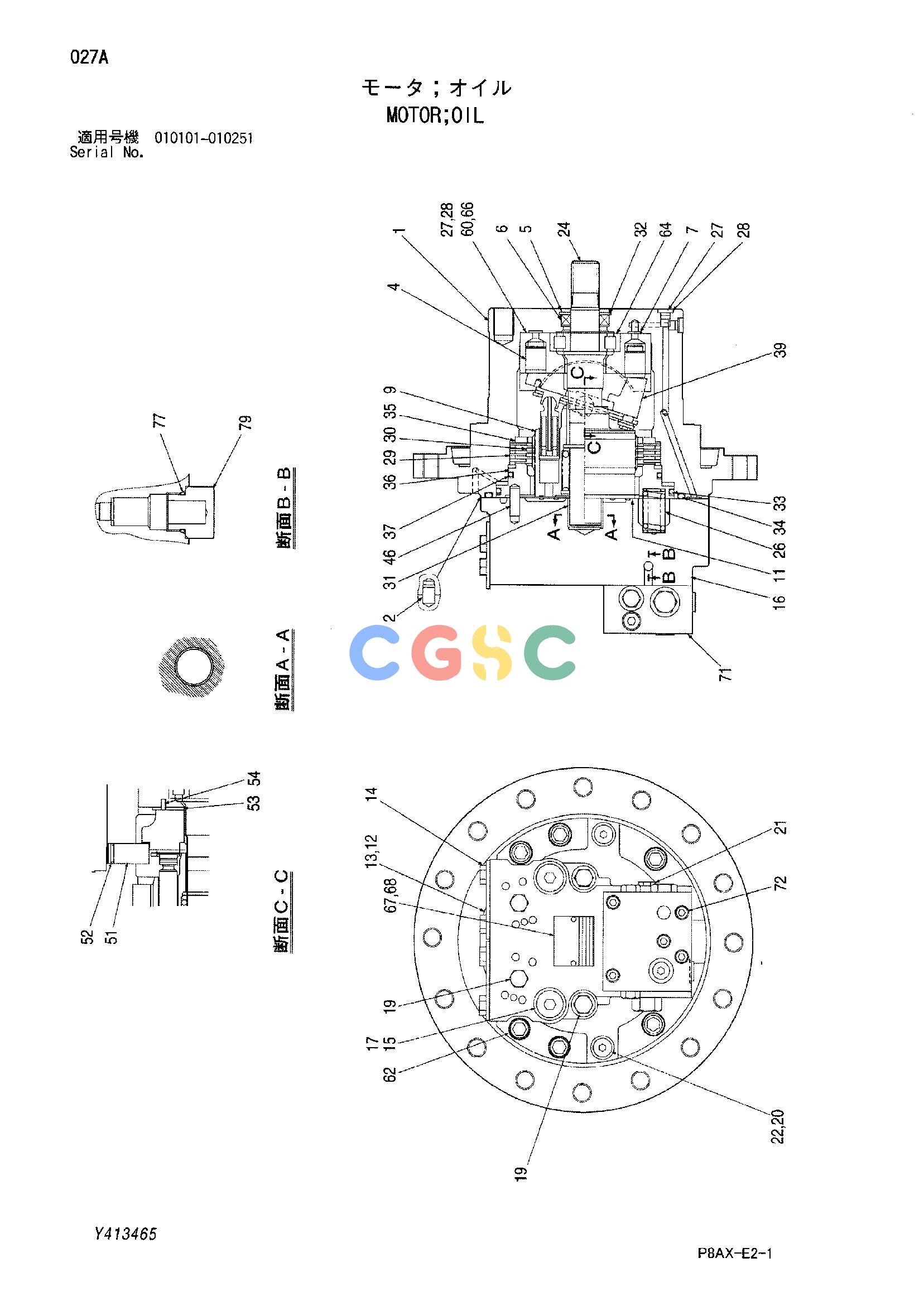

日立零件查询（CS125）MOTOR;OIL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
133 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425129-01 | [1] | MOTOR;OIL | |
| 1. | +++++++ | [1] | HOUSING | |
| 2. | 813822 | [2] | PIN | |
| 4. | 425129-02 | [2] | PISTON | |
| 5. | 425129-03 | [1] | RING;RETAINING | |
| 6. | 425129-04 | [1] | SEAL;OIL | |
| 7. | 438601 | [7] | O-RING | |
| 9. | 425129-05 | [1] | BLOCK;CYL. | |
| 11. | 425129-06 | [1] | PLATE;VALVE | |
| 12. | 425129-07 | [2] | GASKET | |
| 13. | 425129-08 | [2] | COVER | |
| 14. | 425129-09 | [4] | BOLT | |
| 15. | 425463-31 | [2] | PLUG | |
| 16. | +++++++ | [1] | CAP | |
| 17. | 430623 | [2] | O-RING | |
| 19. | 425129-10 | [4] | PLUG | |
| 20. | 425463-74 | [2] | PLUG | |
| 21. | 232061 | [1] | PLUG | |
| 22. | 438402 | [2] | O-RING | |
| 24. | 425129-11 | [1] | SHAFT | |
| 26. | 425129-12 | [8] | SPRING | |
| 27. | 425463-46 | [7] | PLUG | |
| 28. | 425129-13 | [7] | O-RING | |
| 29. | 425129-14 | [4] | PLATE | |
| 30. | 425129-15 | [3] | PLATE | |
| 31. | 425129-16 | [1] | BRG. | |
| 32. | 150012 | [1] | RING;RETAINING | |
| 33. | 438605 | [1] | O-RING | |
| 34. | 438607 | [1] | O-RING | |
| 35. | 425129-17 | [1] | STOPPER | |
| 36. | 425129-18 | [1] | PISTON | |
| 37. | 438603 | [1] | O-RING | |
| 39. | 425129-19 | [1] | PLATE | |
| 46. | 425129-20 | [2] | PIN | |
| 51. | 425129-21 | [2] | ROLLER | |
| 52. | 446266 | [2] | O-RING | |
| 53. | 425129-22 | [2] | BRG. | |
| 54. | 425129-23 | [2] | PIN;SPRING | |
| 60. | 425129-24 | [1] | HOLDER | |
| 62. | 425129-25 | [6] | SCREW | |
| 64. | 425129-26 | [1] | BRG.;ROL. | |
| 66. | 425129-27 | [4] | BOLT | |
| 67. | +++++++ | [1] | NAME-PLATE | |
| 68. | 425463-54 | [2] | SCREW;DRIVE | |
| 71. | 425129-31 | [1] | VALVE;SHUTTLE | |
| 72. | 425129-28 | [4] | BOLT;SOCKET | |
| 77. | 425463-52 | [1] | O-RING | |
| 79. | 425129-29 | [1] | PLUG | |
