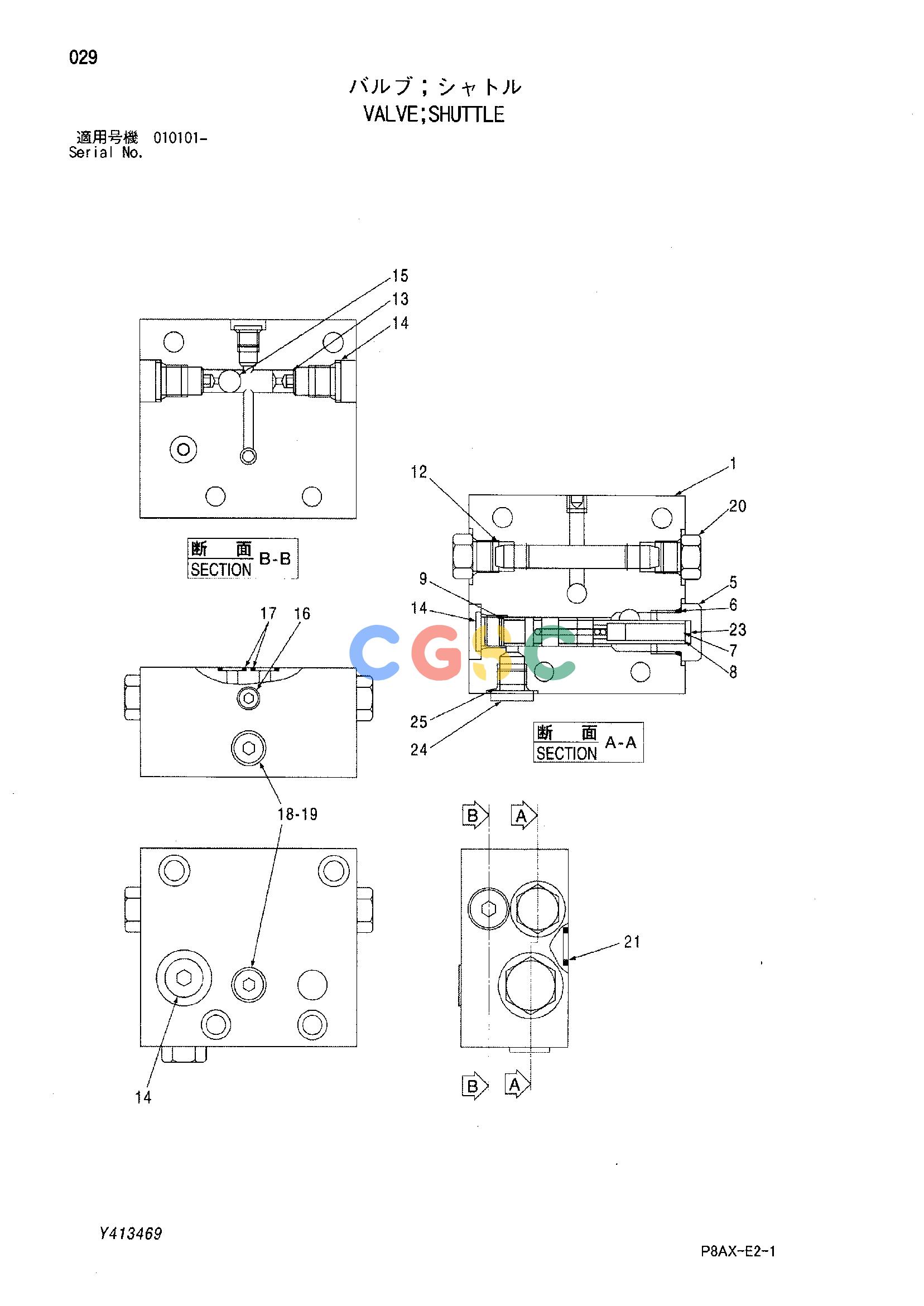

日立零件查询（CS125）VALVE;SHUTTLE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425129-31 | [1] | VALVE;SHUTTLE | |
| | 425129-31 | [1] | VALVE;SHUTTLE | |
| 1. | 425129-32 | [1] | HOUSING | |
| 1. | 425129-32 | [1] | HOUSING | |
| 5. | 425129-33 | [1] | PLUG | |
| 5. | 425129-33 | [1] | PLUG | |
| 6. | 425129-34 | [1] | O-RING | |
| 6. | 425129-34 | [1] | O-RING | |
| 7. | 425129-35 | [1] | NEEDLE | |
| 7. | 425129-35 | [1] | NEEDLE | |
| 8. | 425129-36 | [1] | SPRING | |
| 8. | 425129-36 | [1] | SPRING | |
| 9. | 425129-37 | [1] | SPOOL | |
| 9. | 425129-37 | [1] | SPOOL | |
| 12. | 425129-38 | [1] | SPOOL | |
| 12. | 425129-38 | [1] | SPOOL | |
| 13. | 425129-39 | [2] | PLUG | |
| 13. | 425129-39 | [2] | PLUG | |
| 14. | 425129-40 | [4] | PLUG | |
| 14. | 425129-40 | [4] | PLUG | |
| 15. | 425129-41 | [1] | BALL | |
| 15. | 425129-41 | [1] | BALL | |
| 16. | 425856-30 | [1] | PLUG | |
| 16. | 425856-30 | [1] | PLUG | |
| 17. | 438600 | [2] | O-RING | |
| 17. | 438600 | [2] | O-RING | |
| 18. | 425463-46 | [2] | PLUG | |
| 18. | 425463-46 | [2] | PLUG | |
| 19. | 425129-13 | [2] | O-RING | |
| 19. | 425129-13 | [2] | O-RING | |
| 20. | 425129-10 | [2] | PLUG | |
| 20. | 425129-10 | [2] | PLUG | |
| 21. | 438602 | [4] | O-RING | |
| 21. | 438602 | [4] | O-RING | |
| 23. | 425129-42 | [1] | SPACER | |
| 23. | 425129-42 | [1] | SPACER | |
| 24. | 425463-74 | [1] | PLUG | |
| 24. | 425463-74 | [1] | PLUG | |
| 25. | 438402 | [1] | O-RING | |
| 25. | 438402 | [1] | O-RING | |
