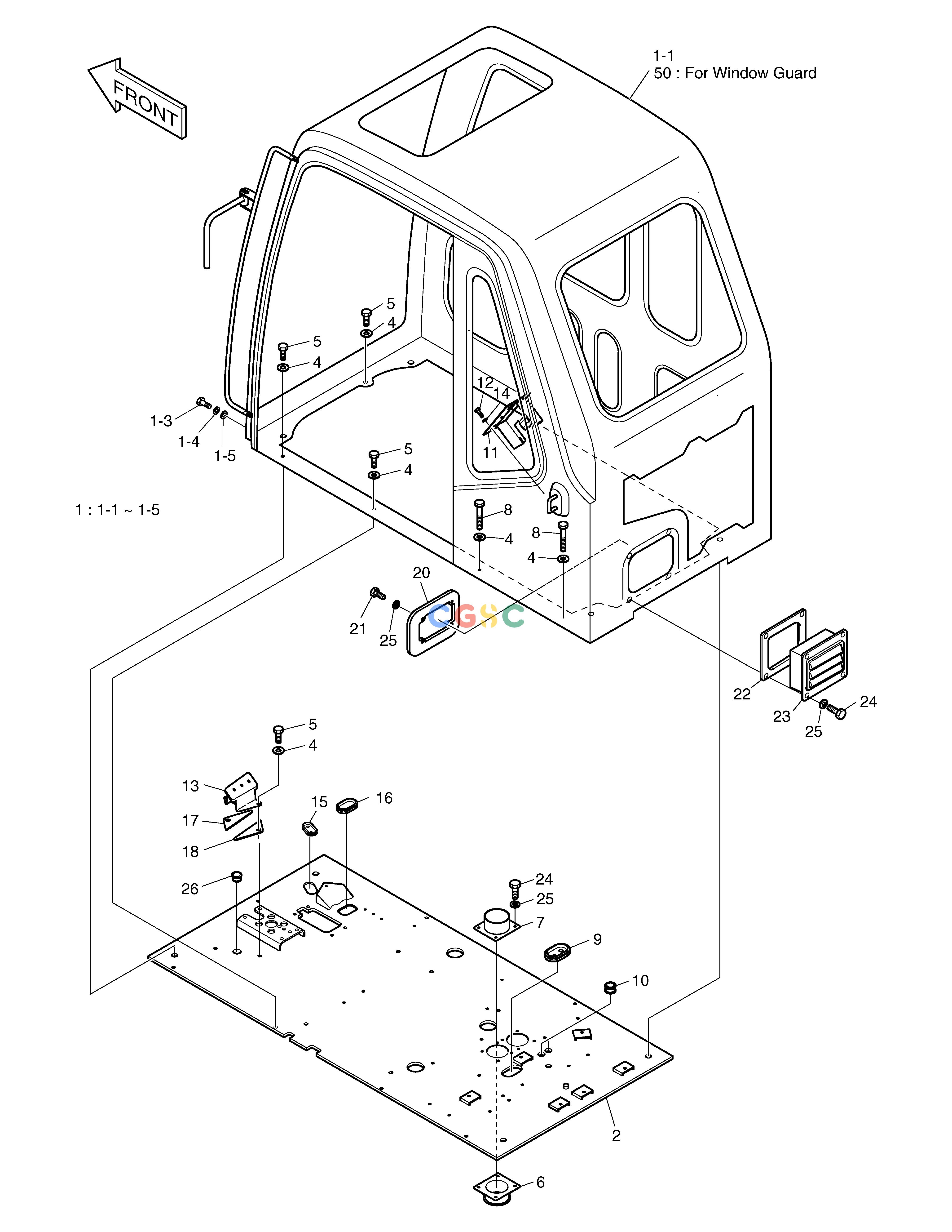

斗山零件查询CABIN ASS'Y SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00235B
|
[-] |
CABIN ASS'Y
|
|
| -. |
622-00235E
|
[-] |
CABIN ASS'Y
|
|
| -. |
622-00235G
|
[-] |
CABIN ASS'Y
|
|
| -. |
622-00235H
|
[-] |
CABIN ASS'Y
|
|
| -. |
622-00235K
|
[-] |
CABIN ASS'Y
|
|
| 1. |
622-00299
|
[1] |
CABIN ASS'Y
|
622-00299A
|
| 1. |
622-00299A
|
[1] |
CABIN ASS'Y
|
622-00299B
|
| 1. |
622-00299B
|
[1] |
CABIN ASS'Y
|
622-00299C
|
| 1. |
622-00299C
|
[1] |
CABIN ASS'Y
|
|
| 1. |
622-00299G
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00210A
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00210B
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00210C
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00210E
|
[1] |
CABIN ASS'Y
|
|
| 1-1. |
622-00210H
|
[1] |
CABIN ASS'Y
|
|
| 1-3. |
2120-2166D4
|
[4] |
BOLT
|
|
| 1-4. |
2114-2031D5
|
[4] |
WASHER
|
|
| 1-5. |
2114-1898D1
|
[4] |
WASHER
|
|
| 10. |
2160-1004D48
|
[2] |
BUSHING;RUBBER
|
|
| 11. |
195-01784B
|
[1] |
BRACKET;AUDIO CASSETTE
|
195-01784C
|
| 11. |
195-01784C
|
[1] |
BRACKET;AUDIO CASSETTE
|
|
| 12. |
S0508853
|
[3] |
. BOLT
|
|
| 13. |
2197-1704A
|
[1] |
BRACKET;FOOT REST(L.H)
|
|
| 14. |
S5010513
|
[3] |
WASHER
|
|
| 15. |
2160-1313
|
[1] |
BUSHING;RUBBER
|
|
| 16. |
2160-1312
|
[1] |
BUSHING;RUBBER
|
|
| 17. |
161-00329
|
[1] |
RUBBER;DAMPER(L.H)
|
|
| 18. |
161-00330
|
[1] |
RUBBER;DAMPER(L.H)
|
|
| 2. |
621-02185A
|
[1] |
PLATE;FLOOR
|
621-02185C
|
| 2. |
621-02185C
|
[1] |
PLATE;FLOOR
|
|
| 20. |
621-01160
|
[1] |
COVER;FRESH AIR DUCT
|
|
| 21. |
2120-2166D19
|
[4] |
. BOLT M6X1.0X12
|
|
| 22. |
2161-2317
|
[1] |
RUBBER;PLATE
|
|
| 23. |
621-01159
|
[1] |
PLATE;COVER
|
|
| 24. |
2120-2166D6
|
[12] |
BOLT
|
|
| 25. |
2114-1898D3
|
[16] |
WASHER
|
|
| 26. |
2161-2487
|
[1] |
CAP
|
|
| 4. |
2114-1898D1
|
[9] |
WASHER
|
|
| 5. |
2120-2166D2
|
[5] |
BOLT
|
|
| 50. |
622-00310
|
[1] |
CABIN ASS'Y-OPT.
|
622-00310A
|
| 50. |
622-00310A
|
[1] |
CABIN ASS'Y-OPT.
|
622-00310C
|
| 50. |
622-00310C
|
[1] |
CABIN ASS'Y-OPT.
|
622-00310E
|
| 50. |
622-00310E
|
[1] |
CABIN ASS'Y-OPT.
|
|
| 6. |
160-00030
|
[2] |
BOOT
|
|
| 7. |
195-01765B
|
[2] |
BRACKET
|
|
| 8. |
2120-2166D3
|
[4] |
BOLT M10X1.5X65
|
|
| 9. |
2160-1308
|
[1] |
BUSHING;RUBBER
|
|
