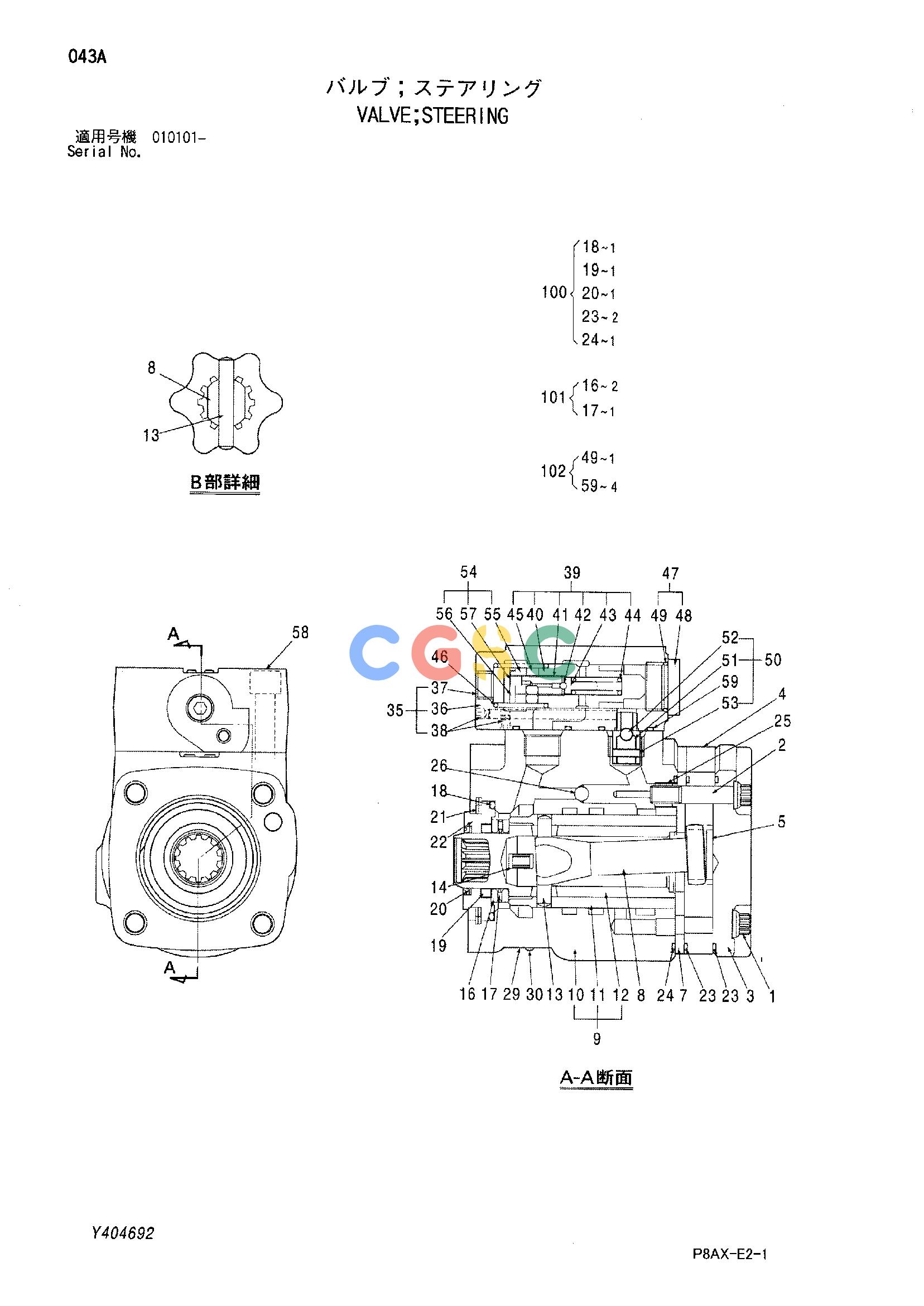

日立零件查询（CS125）VALVE;STEERING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425127 | [1] | VALVE;STEERING | |
| 1. | +++++++ | [6] | SCREW | |
| 2. | +++++++ | [1] | SCREW;SET | |
| 3. | +++++++ | [1] | CAP | |
| 4. | +++++++ | [1] | ROTOR | |
| 5. | +++++++ | [1] | SPACER | |
| 7. | +++++++ | [1] | PLATE | |
| 8. | +++++++ | [1] | GEAR;DRIVE | |
| 9. | +++++++ | [1] | CONTROL PARTS | |
| 10. | +++++++ | [1] | HOUSING | |
| 11. | +++++++ | [1] | SLEEVE | |
| 12. | +++++++ | [1] | SPOOL | |
| 13. | +++++++ | [1] | PIN | |
| 14. | +++++++ | [6] | SPRING | |
| 16. | +++++++ | [2] | RACE;THRUST-BRG | |
| 17. | +++++++ | [1] | BRG.;NEEDLE | |
| 18. | +++++++ | [1] | O-RING | |
| 19. | +++++++ | [1] | SEAL;OIL | |
| 20. | +++++++ | [1] | SEAL;DUST | |
| 21. | +++++++ | [1] | RING;RETAINING | |
| 22. | +++++++ | [1] | BUSHING | |
| 23. | +++++++ | [2] | O-RING | |
| 24. | +++++++ | [1] | O-RING | |
| 25. | +++++++ | [1] | SCREW;ADAPTER | |
| 26. | +++++++ | [1] | BALL | |
| 29. | +++++++ | [1] | NAME-PLATE | |
| 30. | +++++++ | [2] | RIVET | |
| 35. | +++++++ | [1] | HOUSING ASS'Y | |
| 36. | +++++++ | [1] | HOUSING | |
| 37. | +++++++ | [1] | PLUG | |
| 38. | +++++++ | [2] | BALL | |
| 39. | +++++++ | [1] | VALVE ASS'Y | |
| 40. | +++++++ | [1] | SPOOL | |
| 41. | +++++++ | [1] | SEAT;VALVE | |
| 42. | +++++++ | [1] | BALL | |
| 43. | +++++++ | [1] | GUIDE;BALL | |
| 44. | +++++++ | [1] | SPRING | |
| 45. | +++++++ | [1] | NUT;LOCK | |
| 46. | +++++++ | [1] | SPRING | |
| 47. | +++++++ | [1] | PLUG ASS'Y | |
| 48. | +++++++ | [1] | PLUG | |
| 49. | +++++++ | [1] | O-RING | |
| 50. | +++++++ | [1] | ORIFICE-CHECK ASS'Y | |
| 51. | +++++++ | [1] | BODY;ORIFICE-CHECK | |
| 52. | +++++++ | [1] | BALL | |
| 53. | +++++++ | [1] | PIN | |
| 54. | +++++++ | [1] | FILTER ASS'Y | |
| 55. | +++++++ | [1] | BODY;FILTER | |
| 56. | +++++++ | [1] | RING | |
| 57. | +++++++ | [1] | FILTER | |
| 58. | 509023 | [2] | BOLT | |
| 59. | +++++++ | [4] | O-RING | |
| 100. | 426452 | [1] | KIT;SEAL | |
| 101. | 426478 | [1] | KIT;BRG. | |
| 102. | 426479 | [1] | KIT;SEAL | |
