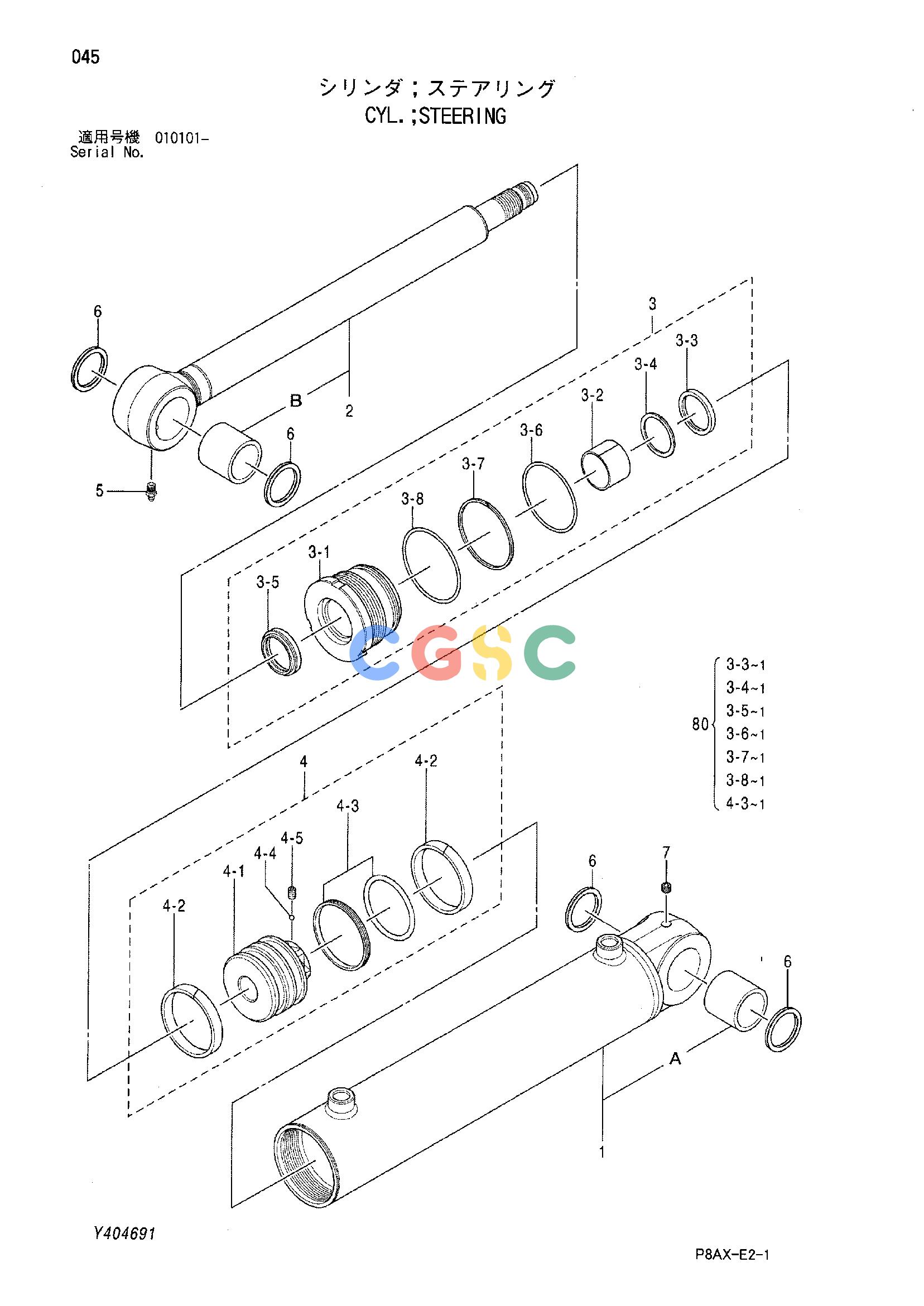

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425126 | [1] | CYL.;STEERING | |
| 1. | 425126-10 | [1] | TUBE;CYL. | |
| 1A. | 425013 | [1] | BUSHING | |
| 2. | 425126-20 | [1] | ROD;PISTON | |
| 2A. | 425013 | [1] | BUSHING | |
| 3. | 425126-30 | [1] | HEAD;CYL. | |
| 3-1. | 425126-31 | [1] | HEAD;CYL. | |
| 3-2. | 425126-32 | [1] | BUSHING | |
| 3-3. | 425126-33 | [1] | PACKING;U-RING | |
| 3-4. | 425126-34 | [1] | RING;BACK-UP | |
| 3-5. | 425126-35 | [1] | RING;WIPER | |
| 3-6. | 425126-36 | [1] | O-RING | |
| 3-7. | 425126-37 | [1] | RING;BACK-UP | |
| 3-8. | 425126-38 | [1] | O-RING | |
| 4. | 425126-40 | [1] | PISTON | |
| 4-1. | 425126-41 | [1] | PISTON | |
| 4-2. | 425126-42 | [2] | RING;SLIDE | |
| 4-3. | 425126-43 | [1] | RING;SEAL | |
| 4-4. | 425460-44 | [1] | BALL;STEEL | |
| 4-5. | 425126-44 | [1] | SCREW;SET | |
| 5. | 425460-60 | [1] | FITTING;GREASE | |
| 6. | 425126-50 | [4] | SEAL;DUST | |
| 7. | 425126-60 | [1] | PLUG | |
| 80. | 426477 | [1] | KIT;SEAL | |
