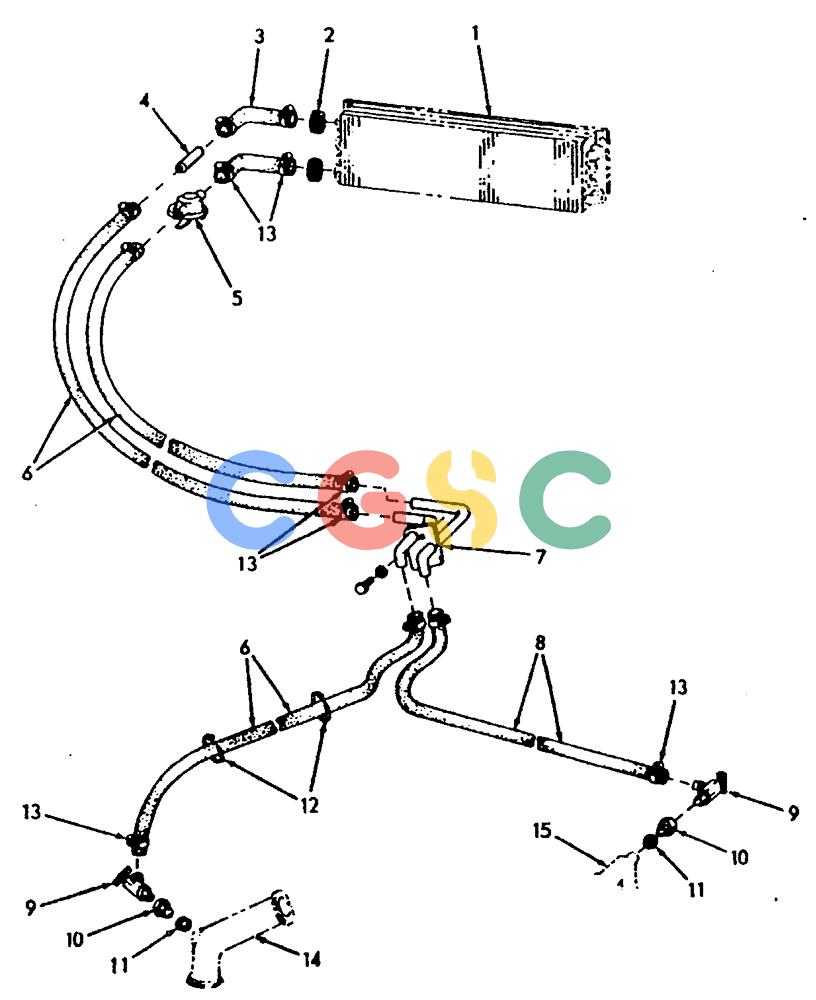

纽荷兰零件查询(FD20) - CRAWLER DOZER (E1.01/1[001]) - HEATER HOSES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 73107282 | [2] | GROMMET | CMI |
| 5. | 73107263 | [1] | HYDRAULIC VALVE | CMIVALVE , HEAT CONTROL |
| 7. | 73133903 | [1] | PLATE | NHWATER BULKHEAH |
| 7. | 70922300 | [2] | SCREW | BHBCAPSCREW , 3/8'' NC x 3/4'' Superseded by part number: 86500692 |
| 7. | 70919312 | [2] | WASHER | CMILOCKWASHER , 3/8'' Superseded by part number: 80680 |
| 9. | 70089894 | [2] | DRAINCOCK/TAP SUPPLY | BHBVALVE , SHUT-OFF |
| 10. | 73074000 | [2] | REDUCER | CMIADAPTOR |
| 11. | 10295385 | [2] | GASKET | MKT |
| 12. | 70930871 | [3] | COLLAR | CMITIE |
| 13. | 70922660 | [12] | CLAMP | BHB Superseded by part number: 12173790 |
| 16. | 73114665 | [1] | HOSE | CMI(5/8'' I.D. x 30 FT.) (USE AS REQUIRED) |
