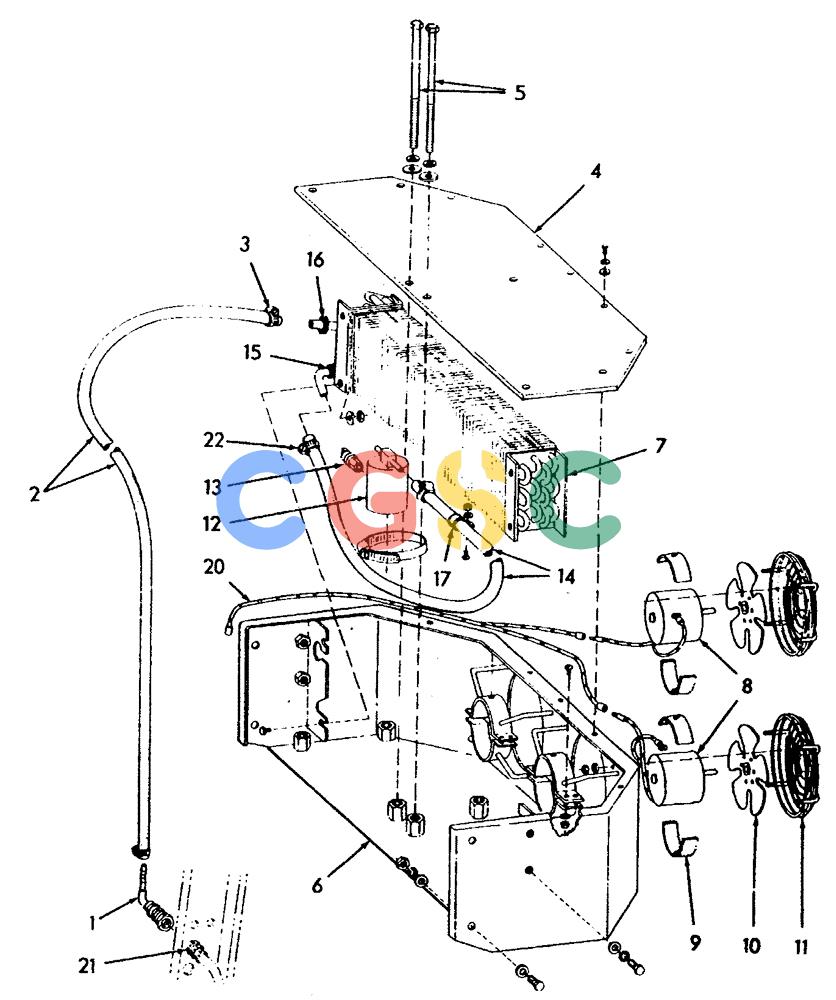

纽荷兰零件查询(FD20) - CRAWLER DOZER (E1.01[004]) - CONDENSER AND LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
673 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73108403 | [1] | HYD CONNECTOR | CMIFITTING,QUICK DISCONNECT |
| 3. | 73107640 | [4] | CLAMP | CMI |
| 4. | 73114680 | [1] | COVER | CMI |
| 4. | 70927340 | [5] | SCREW | CMICAPSCREW, 1/4''NC x 3/4'' Superseded by part number: 281032 |
| 4. | 70919310 | [5] | WASHER | MKTLOCKWASHER, 1/4'' Superseded by part number: 70904204 |
| 4. | 70911114 | [5] | WASHER | CMI Superseded by part number: 70928190 |
| 5. | 70932835 | [7] | SCREW | CMIBOLT,3/8''NC x 7-7/8'' |
| 5. | 70919312 | [7] | WASHER | CMILOCKWASHER, 3/8'' Superseded by part number: 80680 |
| 5. | 70912597 | [7] | WASHER | CMI |
| 6. | 73114679 | [1] | CASE | CMI |
| 6. | 70922763 | [8] | SCREW | BHBCAPSCREW , 3/8''NC x 1'' Superseded by part number: 70929069 |
| 6. | 70911026 | [4] | NUT | BHB3/8'' Superseded by part number: 87861 |
| 7. | 73114681 | [1] | COIL | CMICONDENSER |
| 7. | 70928182 | [4] | SCREW | CMICAPSCREW , 1/4''NCx 1/2'' |
| 7. | 70917730 | [4] | NUT | CMIELASTIC STOP, 1/4''NC |
| 8. | 73121737 | [2] | SMALL ELECTRIC MOTOR | CMIMOTOR , FAN (SERVICE REPLACEMENT)(ALSO ORDER ITEM 20 AND SKETCH S-6556) |
| 8. | 70930494 | [8] | SCREW | CMIRD.-HD. , # 1-32 NF x 3/4'' |
| 8. | 70910533 | [8] | LOCK WASHER | CMILOCKWASHER , # 10 Superseded by part number: 70910284 |
| 8. | 70917415 | [8] | NUT | BHB#10-32NF |
| 9. | 73114682 | [4] | PAD | CMI |
| 10. | 73107665 | [2] | FAN | CMIBLADE |
| 11. | 73114683 | [2] | GUARD | CMI |
| 11. | 70917479 | [16] | NUT | CMI# 6-32 NC |
| 12. | 73114684 | [1] | FILTER | CMIDRYER |
| 12. | 70922200 | [1] | CLAMP | BHB3-5/16'' TO 4-1/4'' DIAM. |
| 13. | 73107652 | [1] | WARNING LIGHT | CMICONTROL , HIGH PRESSURE |
| 15. | 70929167 | [1] | GROMMET | CMIOUTLET |
| 16. | 73107282 | [1] | GROMMET | CMIINLET |
| 17. | 73114685 | [2] | CLIP | CMI |
| 18. | 70932509 | [1] | FLEXIBLE HOSE | CMIHOSE , 13/32'' I.D. x 25 FT.(USE AS REQUIRED) |
| 19. | 70932508 | [1] | FLEXIBLE HOSE | CMIHOSE , 5/16'' I.D.x 25 FT.(USE AS REQUIRED) |
| 20. | 73122184 | [1] | WIRE HARNESS | CMIWIRE ASSY. |
