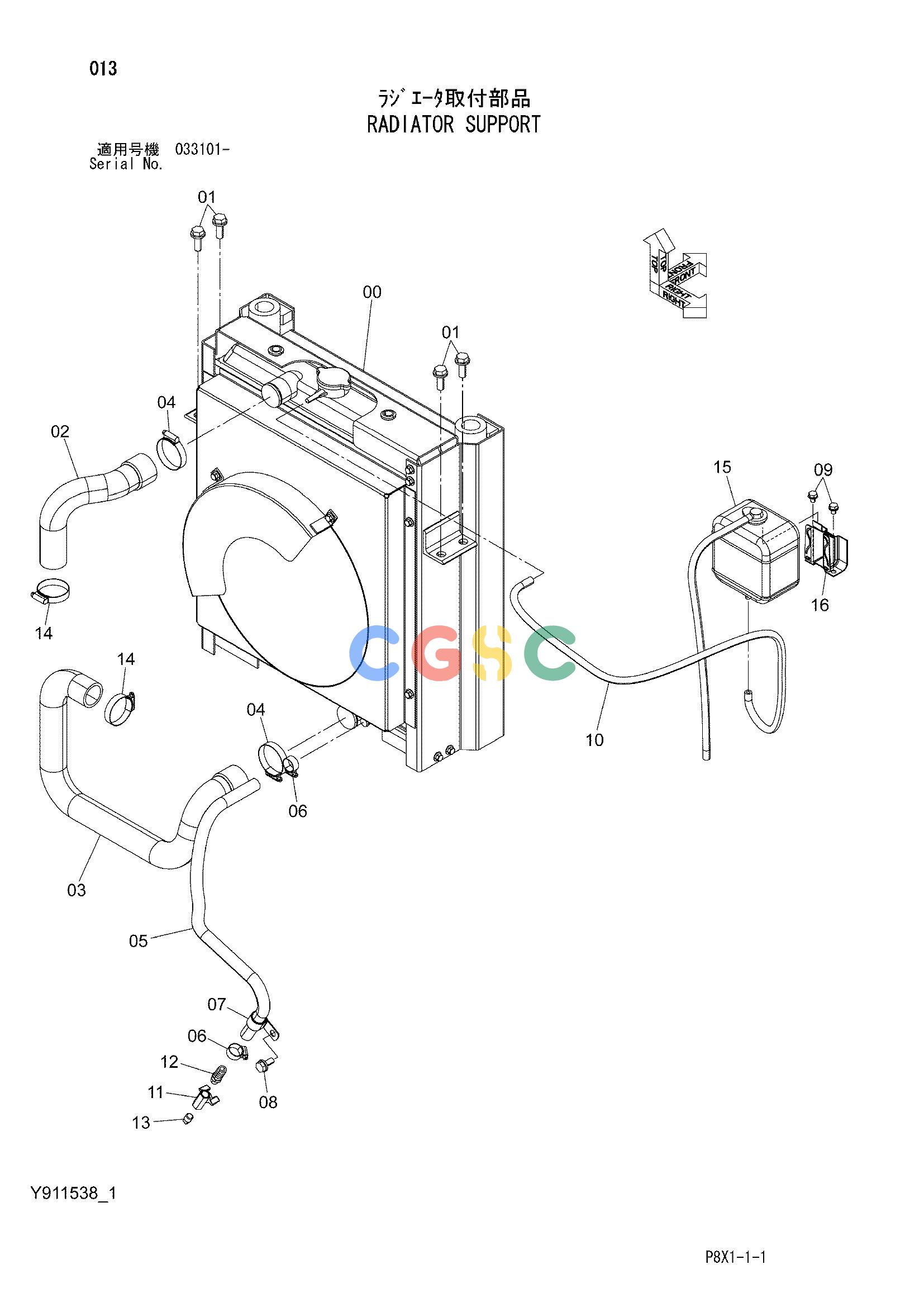

日立零件查询（CS125-3）RADIATOR SUPPORT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
988 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y417591 | [1] | RADIATOR | <for details: see separate page> |
| 01. | J271235 | [4] | BOLT;SEMS | |
| 01A. | J901235 | [1] | BOLT | |
| 01B. | J222012 | [1] | WASHER | |
| 02. | Y302275 | [1] | HOSE;WATER | |
| 03. | Y302276 | [1] | HOSE;WATER | |
| 04. | 4504198 | [2] | CLAMP;HOSE | |
| 05. | Y404749 | [1] | HOSE;VINYL | |
| 06. | 4514699 | [2] | CLAMP;HOSE | |
| 07. | 4190277 | [1] | CLIP | |
| 08. | J271025 | [1] | BOLT;SEMS | |
| 08A. | J901025 | [1] | BOLT | |
| 08B. | J222010 | [1] | WASHER | |
| 09. | J260812 | [2] | BOLT;SEMS | |
| 09A. | J900812 | [1] | BOLT | |
| 09B. | A590108 | [1] | WASHER;PLANE | |
| 10. | Y404072 | [1] | HOSE;WATER | |
| 11. | Y406813 | [1] | VALVE;BALL | |
| 12. | Y405707 | [1] | FITTING;HOSE | |
| 13. | 94-2022 | [1] | PLUG | |
| 14. | 4505385 | [2] | CLAMP;HOSE | |
| 15. | Y417709 | [1] | TANK;RESERVE | |
| 16. | Y417710 | [1] | STAY | |
