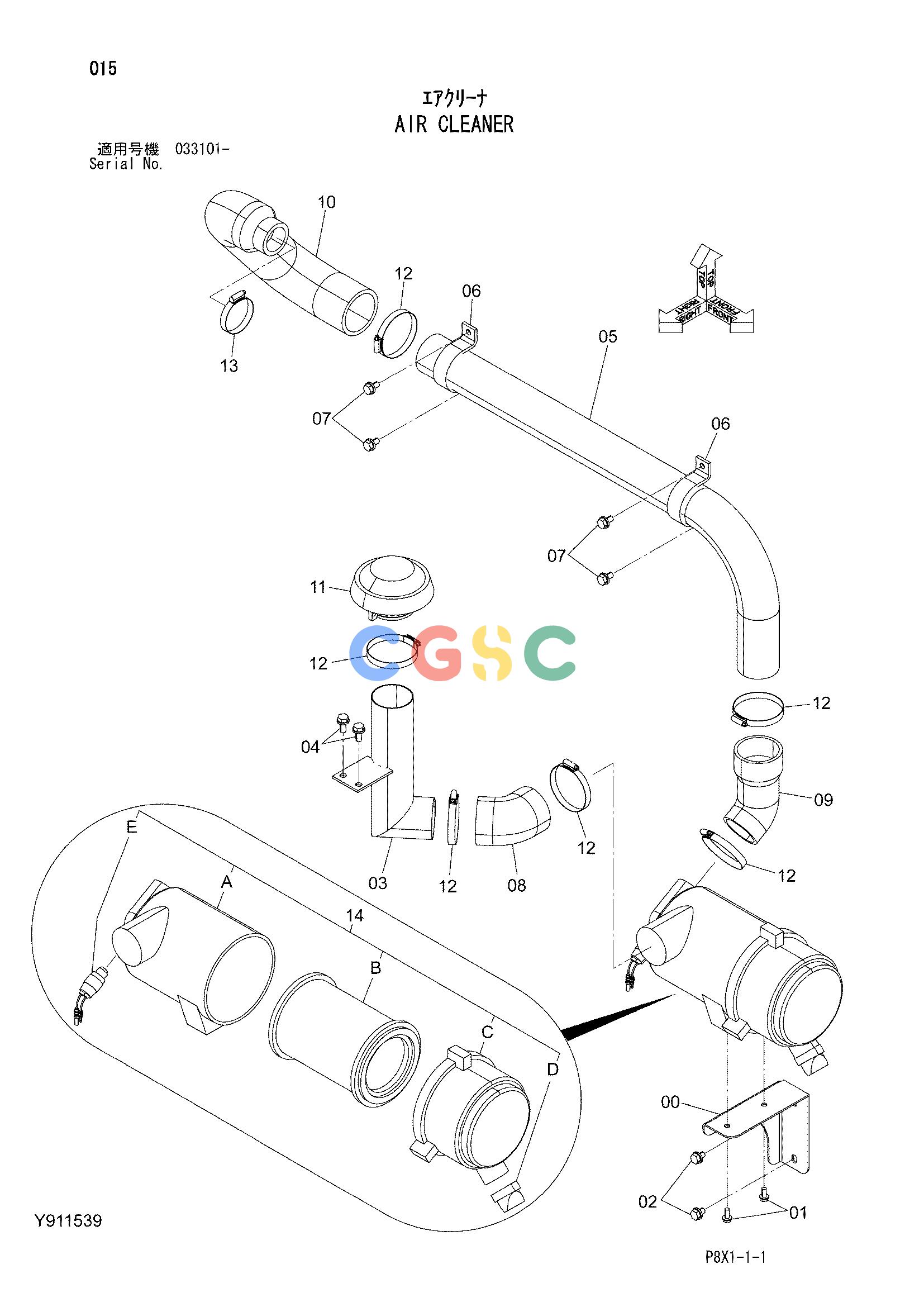

日立零件查询（CS125-3）AIR CLEANER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
331 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y302273 | [1] | BRACKET | |
| 01. | J260820 | [2] | BOLT;SEMS | |
| 01A. | J900820 | [1] | BOLT | |
| 01B. | A590108 | [1] | WASHER;PLANE | |
| 02. | J271016 | [2] | BOLT;SEMS | |
| 02A. | J901016 | [1] | BOLT | |
| 02B. | J222010 | [1] | WASHER | |
| 03. | Y802801 | [1] | PIPE;AIR | |
| 04. | J271025 | [2] | BOLT;SEMS | |
| 04A. | J901025 | [1] | BOLT | |
| 04B. | J222010 | [1] | WASHER | |
| 05. | Y417684 | [1] | PIPE;AIR | |
| 06. | 4000909 | [2] | CLAMP;PIPE | |
| 07. | J271020 | [4] | BOLT;SEMS | |
| 07A. | J901020 | [1] | BOLT | |
| 07B. | J222010 | [1] | WASHER | |
| 08. | Y417722 | [1] | HOSE;RUBBER | |
| 09. | Y417685 | [1] | HOSE;RUBBER | |
| 10. | Y302274 | [1] | HOSE;RUBBER | |
| 11. | 4186284 | [1] | CAP | |
| 12. | 4507512 | [6] | CLAMP;HOSE | |
| 13. | 4504199 | [1] | CLAMP;HOSE | |
| 14. | Y417592 | [1] | CLEANER;AIR | |
| 14A. | Y418160 | [1] | BODY | |
| 14B. | Y405153 | [1] | ELEMENT | |
| 14C. | Y405154 | [1] | COVER | |
| 14D. | Y405155 | [1] | VALVE | |
| 14E. | 4224238 | [1] | INDICATOR | |
