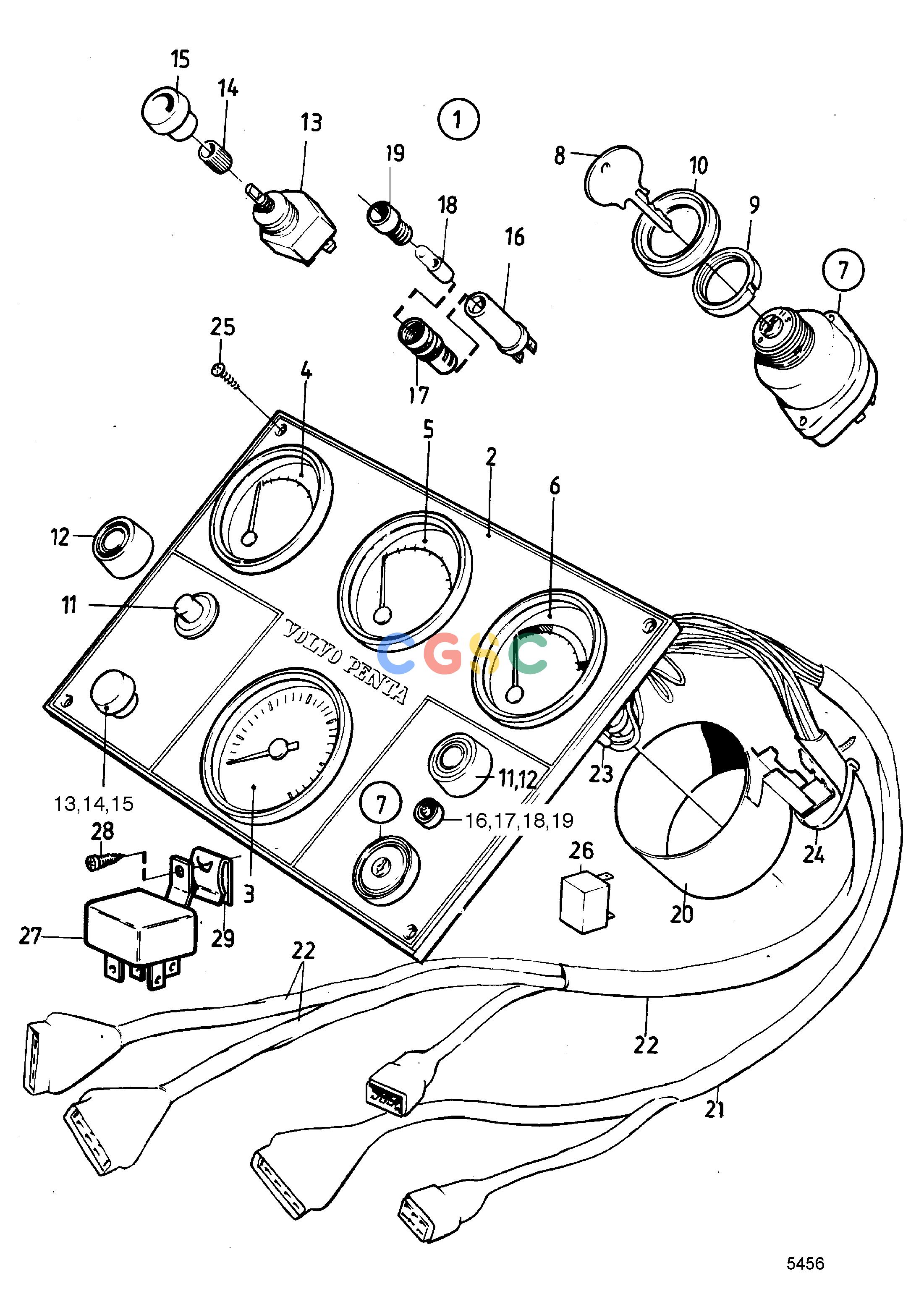

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemInstrument Panel: 844738EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
257 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
844738
|
[1] |
Instrument panel
|
24V
|
| 2. |
844723
|
[1] |
Instrument plate
|
|
| 3. |
842563
|
[1] |
Tachometer
|
|
| 4. |
837758
|
[1] |
Thermometer
|
|
| 5. |
837756
|
[1] |
Instrument
|
|
| 6. |
837730
|
[1] |
Voltmeter
|
|
| 7. |
824963
|
[1] |
Starter switch
|
|
| 8. |
831606
|
[2] |
Key
|
For cable area 6,5-10,5mm²
|
| 9. |
831536
|
[1] |
Nut
|
|
| 10. |
827769
|
[1] |
Collar
|
|
| 11. |
843684
|
[2] |
Button
|
|
| 12. |
837533
|
[2] |
Rubber cap
|
|
| 13. |
842918
|
[1] |
Rheostat
|
|
| 14. |
843002
|
[1] |
Nut
|
|
| 15. |
842921
|
[1] |
Knob
|
|
| 16. |
808175
|
[5] |
Bulb socket
|
|
| 17. |
819350
|
[5] |
Sleeve
|
|
| 18. |
182059
|
[5] |
Bulb
|
|
| 19. |
827766
|
[5] |
Lens
|
|
| 20. |
837859
|
[2] |
Anchorage
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
7742190_138
|
|
cable and cable terminals
|
|
| 24. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 25. |
944540
|
[4] |
Screw
|
|
| 26. |
837722
|
[1] |
Resistor
|
|
| 27. |
837878
|
[1] |
Relay
|
|
| 28. |
955126
|
[1] |
Cross recessed screw
|
|
| 29. |
192557
|
[1] |
Spring nut
|
|
