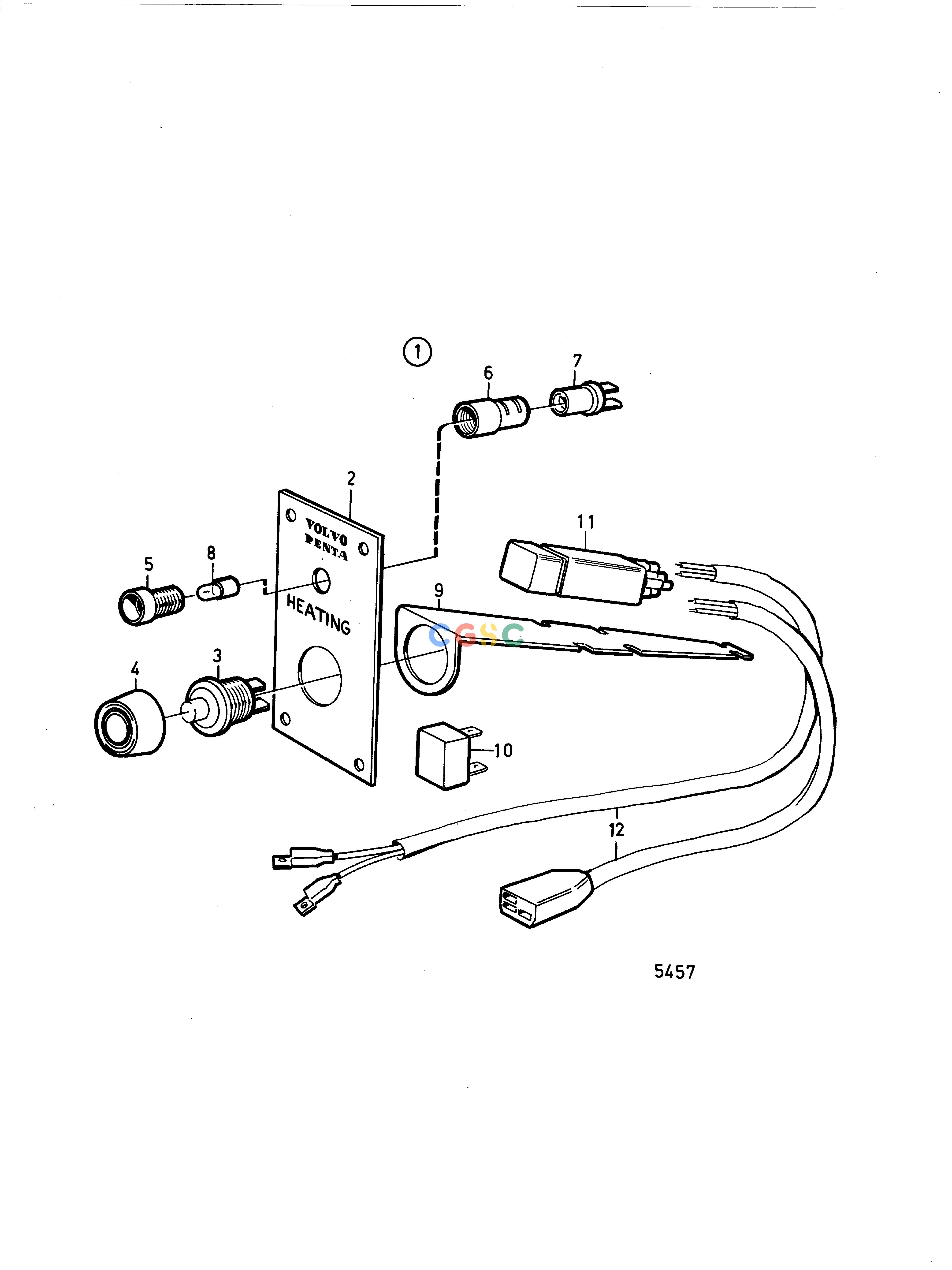

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemInstrument Panel: 844757EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
24V
|
| 2. |
|
|
|
|
| 3. |
843684
|
[1] |
Button
|
|
| 4. |
837533
|
[1] |
Rubber cap
|
|
| 5. |
827766
|
[1] |
Lens
|
|
| 6. |
819350
|
[1] |
Sleeve
|
|
| 7. |
808175
|
[1] |
Bulb socket
|
|
| 8. |
182059
|
[1] |
Bulb
|
|
| 9. |
844431
|
[1] |
Cable holder
|
|
| 10. |
837878
|
[1] |
Relay
|
|
| 11. |
839621
|
[1] |
Protecting sleeve
|
|
| 12. |
7742190_138
|
|
cable and cable terminals
|
|
| 12. |
|
|
|
|
