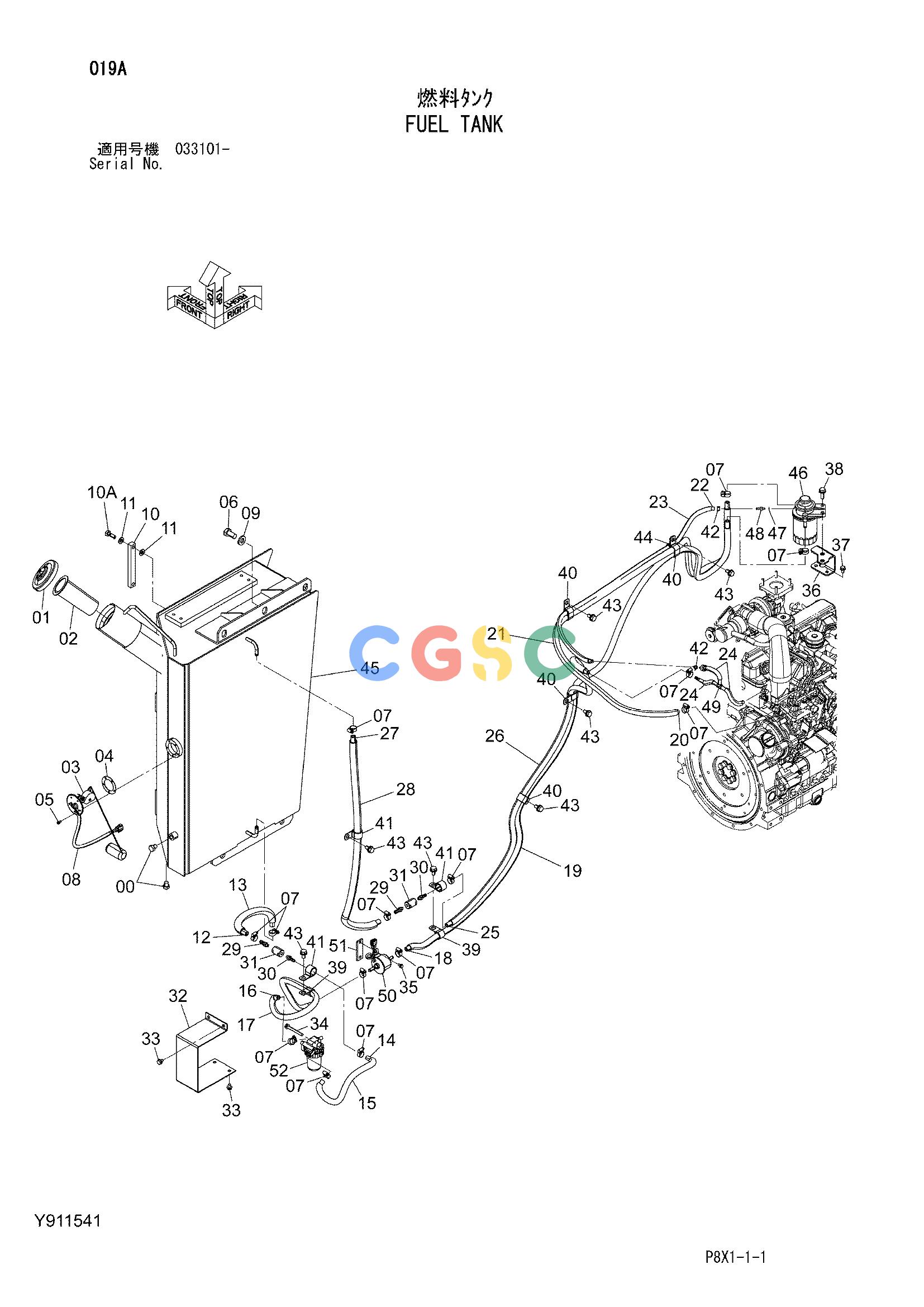

日立零件查询（CS125-3）FUEL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
229 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 446536 | [2] | PLUG | |
| 01. | 4361638 | [1] | CAP | |
| 02. | 4121496 | [1] | FILTER | |
| 03. | 4257128 | [1] | FLOAT | |
| 04. | 4269607 | [1] | PACKING | |
| 05. | J450510 | [5] | SCREW;SEMS | |
| 07. | 4514700 | [14] | CLAMP;HOSE | |
| 08. | 4344477 | [1] | TUBE;CORRUGATED | |
| 09. | J222016 | [5] | WASHER | |
| 10. | 8053499 | [1] | GAUGE;LEVEL | |
| 10A. | 4100967 | [2] | BOLT | |
| 11. | 449558 | [4] | WASHER;SEAL | |
| 12. | Y417762 | [1] | HOSE;FUEL | |
| 13. | Y417763 | [1] | TUBE | |
| 14. | Y417758 | [1] | HOSE;FUEL | |
| 15. | Y417759 | [1] | TUBE | |
| 16. | Y417756 | [1] | HOSE;FUEL | |
| 17. | Y417757 | [1] | TUBE | |
| 18. | Y417960 | [1] | HOSE;FUEL | |
| 19. | Y417961 | [1] | TUBE | |
| 20. | Y417962 | [1] | HOSE;FUEL | |
| 21. | Y417963 | [1] | TUBE | |
| 22. | Y417964 | [1] | HOSE;FUEL | |
| 23. | Y417965 | [1] | TUBE | |
| 24. | Y417776 | [3] | TUBE;CORRUGATED | |
| 25. | Y417760 | [1] | HOSE;FUEL | |
| 26. | Y417761 | [1] | TUBE | |
| 27. | Y417764 | [1] | HOSE;FUEL | |
| 28. | Y417765 | [1] | TUBE | |
| 29. | Y417766 | [2] | JOINT;HOSE | |
| 30. | Y417767 | [2] | JOINT;HOSE | |
| 31. | Y417733 | [2] | SOCKET | |
| 32. | Y417734 | [1] | COVER | |
| 33. | J260812 | [4] | BOLT;SEMS | |
| 33A. | J900812 | [1] | BOLT | |
| 33B. | A590108 | [1] | WASHER;PLANE | |
| 34. | J260870 | [1] | BOLT;SEMS | |
| 34A. | J900870 | [1] | BOLT | |
| 34B. | A590108 | [1] | WASHER;PLANE | |
| 35. | J260612 | [2] | BOLT;SEMS | |
| 35A. | J900612 | [1] | BOLT | |
| 35B. | A590106 | [1] | WASHER;PLANE | |
| 36. | Y802852 | [1] | BRACKET;FILTER | |
| 37. | J260816 | [2] | BOLT;SEMS | |
| 37A. | J900816 | [1] | BOLT | |
| 37B. | A590108 | [1] | WASHER;PLANE | |
| 38. | J271030 | [2] | BOLT;SEMS | |
| 38A. | J901030 | [1] | BOLT | |
| 38B. | J222010 | [1] | WASHER | |
| 39. | 4190274 | [2] | CLIP | |
| 40. | 4190282 | [4] | CLIP | |
| 41. | 4190263 | [3] | CLIP | |
| 42. | 4394363 | [2] | CLAMP;HOSE | |
| 43. | J271020 | [7] | BOLT;SEMS | |
| 43A. | J901020 | [1] | BOLT | |
| 43B. | J222010 | [1] | WASHER | |
| 44. | 4190275 | [1] | CLIP | |
| 45. | Y600146 | [1] | TANK;FUEL | |
| 46. | Y417701 | [1] | FILTER;FUEL | |
| 46A. | Y417702 | [1] | ELEMENT;FILTER | |
| 47. | Y417707 | [1] | PACKING | |
| 48. | Y417711 | [1] | FITTING | |
| 49. | Y417712 | [1] | TUBE | |
| 50. | 4647138 | [1] | PUMP | |
| 51. | Y415353 | [1] | RUBBER | |
| 52. | Y417708 | [1] | SEPARATOR | |
