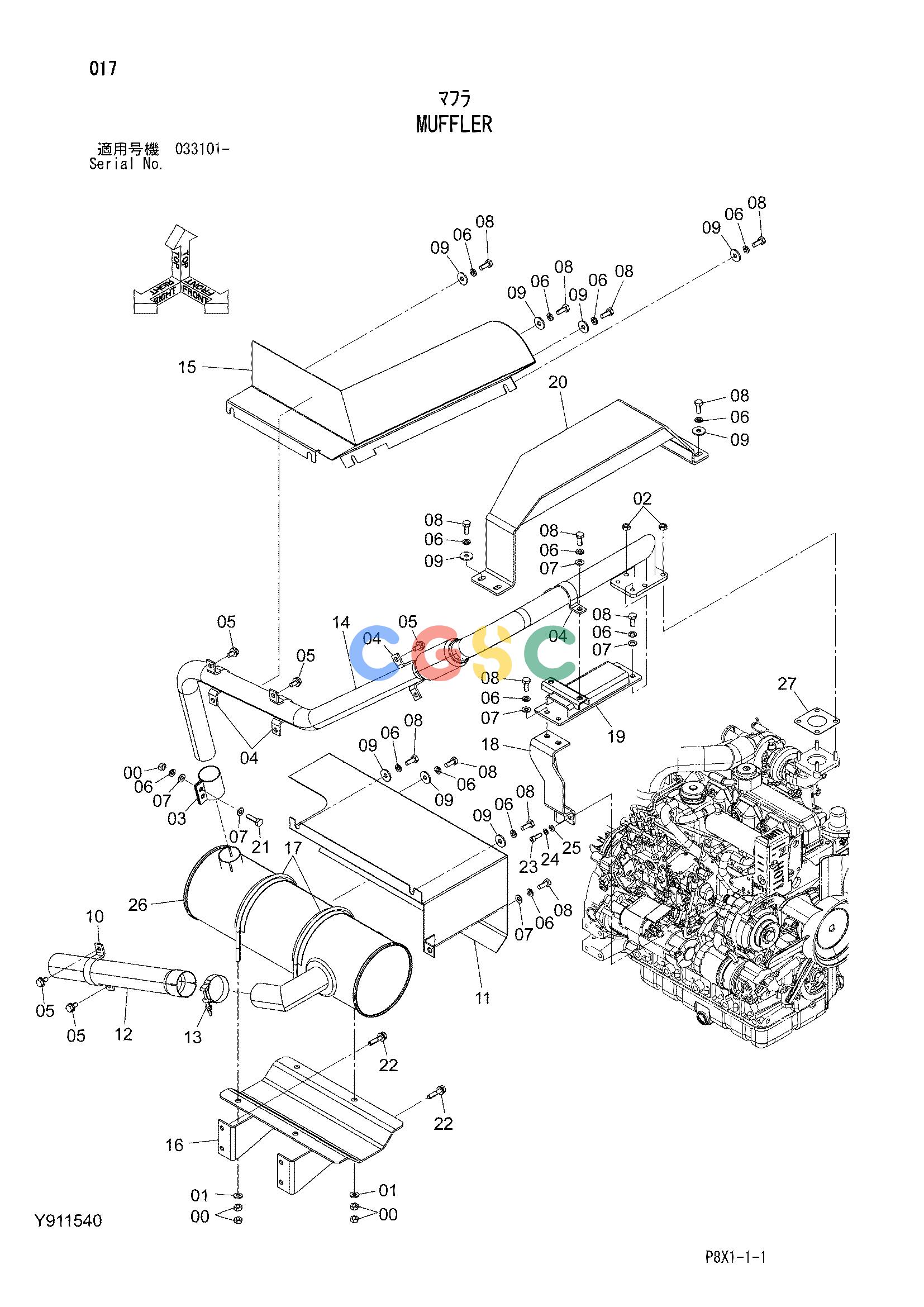

日立零件查询（CS125-3）MUFFLER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | J950010 | [10] | NUT | |
| 01. | J222010 | [4] | WASHER | |
| 02. | 4045246 | [4] | NUT;U | |
| 03. | 4108754 | [1] | CLAMP | |
| 04. | Y417688 | [4] | CLAMP;PIPE | |
| 05. | J271020 | [8] | BOLT;SEMS | |
| 05A. | J901020 | [1] | BOLT | |
| 05B. | J222010 | [1] | WASHER | |
| 06. | A590910 | [20] | WASHER;SPRING | |
| 07. | A590110 | [11] | WASHER;PLANE | |
| 08. | J901025 | [18] | BOLT | |
| 09. | J217083 | [11] | WASHER | |
| 10. | 4053865 | [1] | CLAMP;PIPE | |
| 11. | Y802806 | [1] | COVER | |
| 12. | Y417687 | [1] | PIPE;EXHAUST | |
| 13. | 4285235 | [1] | CLAMP;HOSE | |
| 14. | Y701189 | [1] | PIPE;EXHAUST | |
| 15. | Y701187 | [1] | COVER | |
| 16. | Y701190 | [1] | BRACKET | |
| 17. | Y802808 | [2] | BOLT;U | |
| 18. | Y802851 | [1] | BRACKET | |
| 19. | Y802879 | [1] | BRACKET | |
| 20. | Y802880 | [1] | COVER | |
| 21. | J901035 | [2] | BOLT | |
| 22. | J021045 | [4] | BOLT;SEMS | |
| 23. | J780825 | [2] | BOLT;SOCKET | |
| 24. | A590908 | [2] | WASHER;SPRING | |
| 25. | A590108 | [2] | WASHER;PLANE | |
| 26. | Y417593 | [1] | MUFFER | |
| 27. | Y417700 | [1] | GASKET | |
