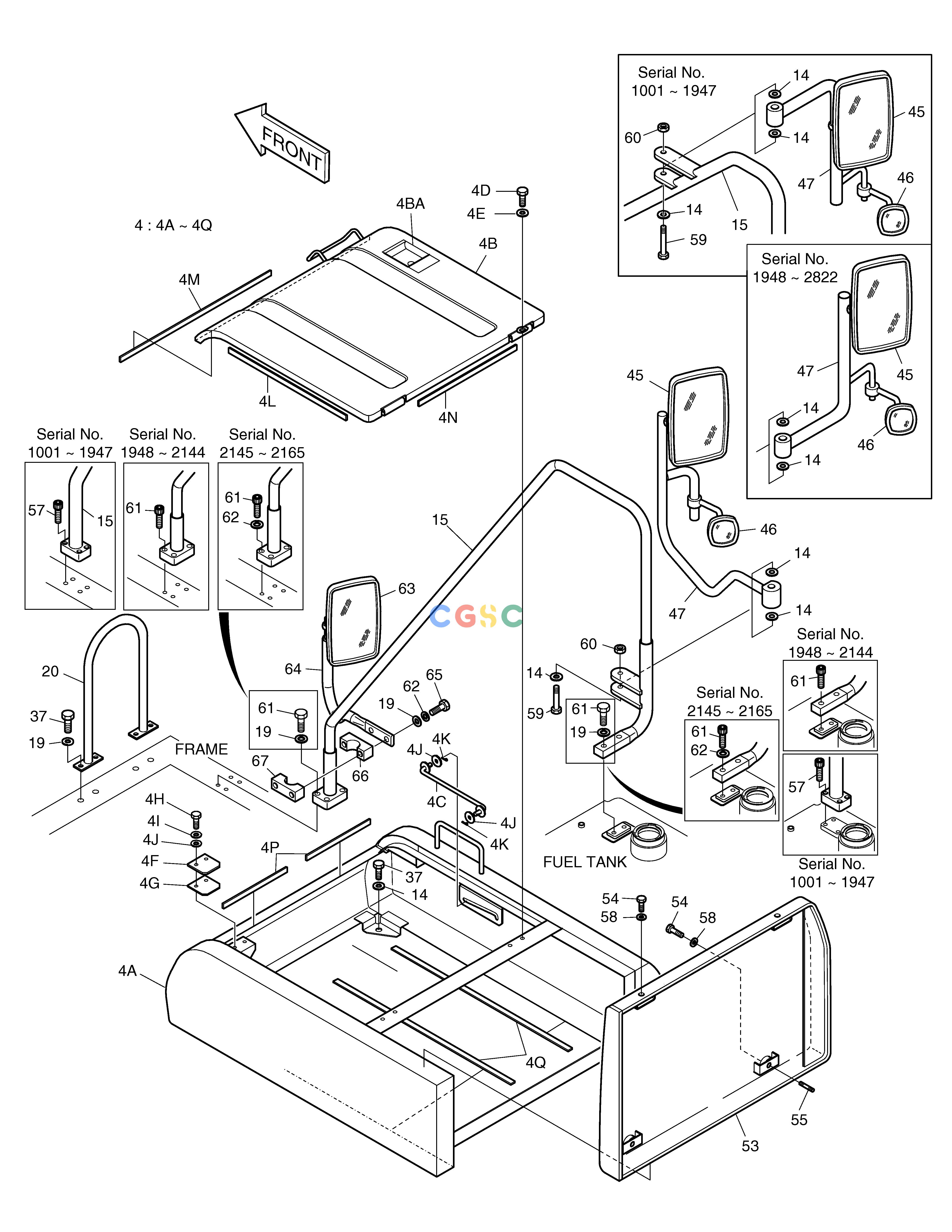

斗山零件查询COVER(4) SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
341 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02502
|
[-] |
COVER ASS'Y
|
|
| 14. |
2114-1058D30
|
[7] |
. WASHER
|
|
| 15. |
145-00075
|
[1] |
STAY
|
|
| 15. |
145-00075A
|
[1] |
STAY
|
|
| 15. |
145-00113
|
[1] |
STAY
|
145-00113A
|
| 15. |
145-00113A
|
[1] |
STAY
|
|
| 19. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 19. |
S5010713
|
[6] |
WASHER;PLAIN
|
|
| 19. |
S5010713
|
[12] |
WASHER;PLAIN
|
|
| 20. |
2145-1168
|
[1] |
STAY
|
|
| 37. |
S0515253
|
[8] |
. BOLT
|
|
| 4. |
621-02490A
|
[1] |
BATTERY COVER ASS'Y
|
621-02490B
|
| 4. |
621-02490B
|
[1] |
BATTERY COVER ASS'Y
|
|
| 4. |
621-02490C
|
[1] |
BATTERY COVER ASS'Y
|
|
| 45. |
903-00052
|
[1] |
MIRROR;MAIN
|
903-00068
|
| 45. |
903-00068
|
[1] |
MIRROR
|
|
| 46. |
2903-6005
|
[1] |
MIRROR;UNDER
|
|
| 47. |
145-00076
|
[1] |
STAY
|
|
| 47. |
145-00095
|
[1] |
STAY
|
|
| 47. |
K1002991A
|
[1] |
STAY
|
K1002991B
|
| 47. |
K1002991B
|
[1] |
STAY
|
|
| 4A. |
621-02489A
|
[1] |
COVER;BATTERY
|
|
| 4B. |
2621-3558B
|
[1] |
COVER
|
2621-3558C
|
| 4B. |
2621-3558C
|
[1] |
COVER
|
|
| 4B. |
2621-3558E
|
[1] |
COVER
|
|
| 4BA. |
125-00085
|
[1] |
LOCK
|
|
| 4BA. |
K1006422
|
[1] |
.. LOCK
|
|
| 4BA. |
2125-9054
|
[1] |
LOCK
|
125-00085
|
| 4C. |
2145-1243
|
[1] |
. STAY
|
|
| 4D. |
S0512053
|
[4] |
BOLT
|
|
| 4E. |
S5010613
|
[4] |
WASHER
|
|
| 4F. |
2621-3003B
|
[1] |
PLATE
|
|
| 4G. |
2114-1727B
|
[1] |
SHIM
|
|
| 4H. |
S0555753
|
[2] |
BOLT M8X1.25X25
|
|
| 4I. |
S5010513
|
[2] |
WASHER
|
|
| 4J. |
2114-1058D29
|
[2] |
WASHER
|
|
| 4K. |
2705-9002
|
[2] |
PIN
|
|
| 4L. |
NA00291
|
[2] |
|
|
| 4M. |
NA00289
|
[3] |
|
|
| 4N. |
NA00285
|
[1] |
|
|
| 4P. |
NA00287
|
[2] |
|
|
| 4Q. |
NA00283
|
[2] |
|
|
| 53. |
621-01927A
|
[1] |
COVER;FUEL TANK
|
|
| 54. |
S0511853
|
[4] |
BOLT
|
|
| 55. |
120-00279
|
[2] |
BOLT;STUD M10X1.5
|
|
| 57. |
S2212466
|
[8] |
BOLT
|
|
| 58. |
S5010613
|
[4] |
WASHER
|
|
| 59. |
S0561553
|
[1] |
BOLT M12X1.75X90
|
|
| 60. |
S4012733
|
[1] |
NUT
|
|
| 61. |
S2215466
|
[6] |
BOLT
|
|
| 61. |
S0560653
|
[6] |
BOLT M12X1.75X45
|
|
| 62. |
S5102703
|
[8] |
WASHER
|
|
| 62. |
S5102703
|
[2] |
WASHER
|
|
| 63. |
903-00065
|
[1] |
MIRROR;SIDE
|
|
| 63. |
903-00068
|
[1] |
MIRROR
|
|
| 64. |
145-00132
|
[1] |
STAY
|
|
| 64. |
145-00132A
|
[1] |
STAY
|
|
| 65. |
S0561253
|
[2] |
BOLT M12X1.75X75
|
|
| 66. |
124-00216
|
[1] |
CLAMP
|
|
| 67. |
124-00217
|
[1] |
CLAMP
|
|
