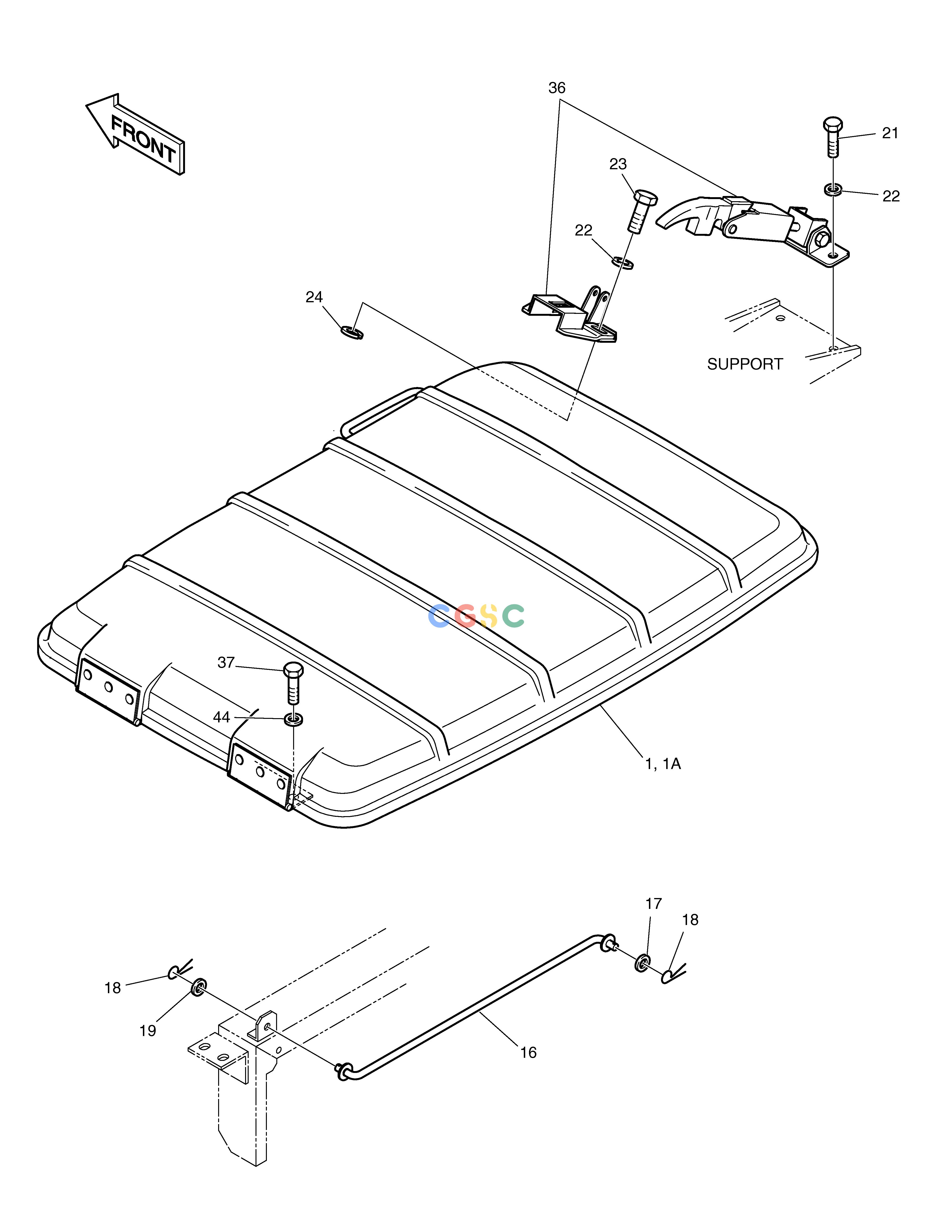

斗山零件查询COVER(5) SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02502
|
[-] |
COVER ASS'Y
|
|
| 1. |
627-00061
|
[1] |
COVER;ENGINE
|
627-00061A
|
| 1. |
627-00061A
|
[1] |
COVER;ENGINE
|
|
| 16. |
2145-1249
|
[1] |
STAY
|
|
| 17. |
2114-1058D33
|
[1] |
WASHER
|
|
| 18. |
2705-9002
|
[2] |
PIN
|
|
| 19. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 1A. |
1.162-00001
|
[1] |
RUBBER;CUSHION
|
|
| 21. |
S0508753
|
[4] |
BOLT M8X1.25X18
|
|
| 22. |
S5010513
|
[8] |
WASHER
|
|
| 23. |
S0508853
|
[4] |
. BOLT
|
|
| 24. |
S5102503
|
[4] |
. WASHER
|
|
| 36. |
2125-9052B
|
[2] |
CATCH
|
125-00086
|
| 36. |
125-00086
|
[2] |
CATCH
|
|
| 36. |
K1006424
|
[2] |
CATCH
|
|
| 37. |
S0515253
|
[6] |
. BOLT
|
|
| 44. |
2114-1058D46
|
[6] |
WASHER
|
|
