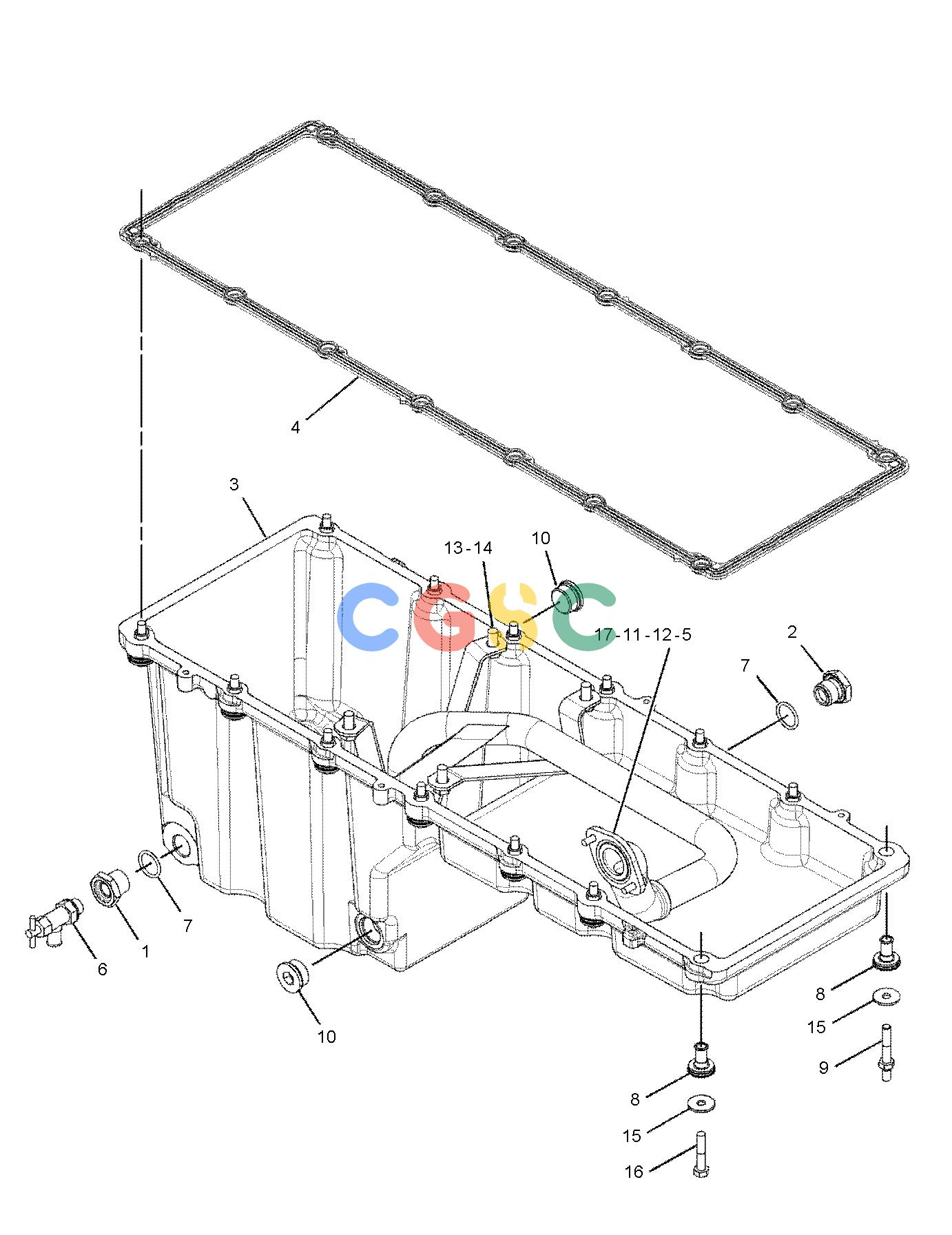

卡特零件查询（730） 351-7472: PAN GP-OIL
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-7427 | [1] | ADAPTER | |
| 2. | 9X-6451 | [1] | PLUG-DRAIN(MAGNETIC)(ENGINE OIL PAN) | |
| 3. | 210-1745 | [1] | PAN-OIL | |
| 4. | 217-3673 | [1] | SEAL-ISOLATION | |
| 5. | 350-3117 | [1] | BELL AS-SUCTION | |
| 6. | 351-0283 | [1] | VALVE AS-SHUTOFF(ENGINE OIL PAN) | |
| | 6V-7238 | [1] | VALVE-SHUTOFF | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 7. | 061-9458 | [2] | SEAL-O-RING | |
| 8. | 217-3674 | [14] | FASTENER AS | |
| 9. | 287-3049M | [1] | STUD(M10X1.5X50-MM) | |
| 10. | 319-6234 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-9334 | [1] | PLUG(1-5/16-12-THD) | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 11. | 3E-8016M | [2] | BOLT-SELF-LOCKING(M8X1.25X25-MM) | |
| 12. | 5P-8211 | [1] | SEAL-O-RING | |
| 13. | 5P-8245 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 6A-5591M | [4] | BOLT(M12X1.75X25-MM) | |
| 15. | 6N-8863 | [14] | WASHER(10.2X32X2.5-MM THK) | |
| 16. | 6V-4249M | [13] | BOLT(M10X1.5X50-MM) | |
| 17. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
