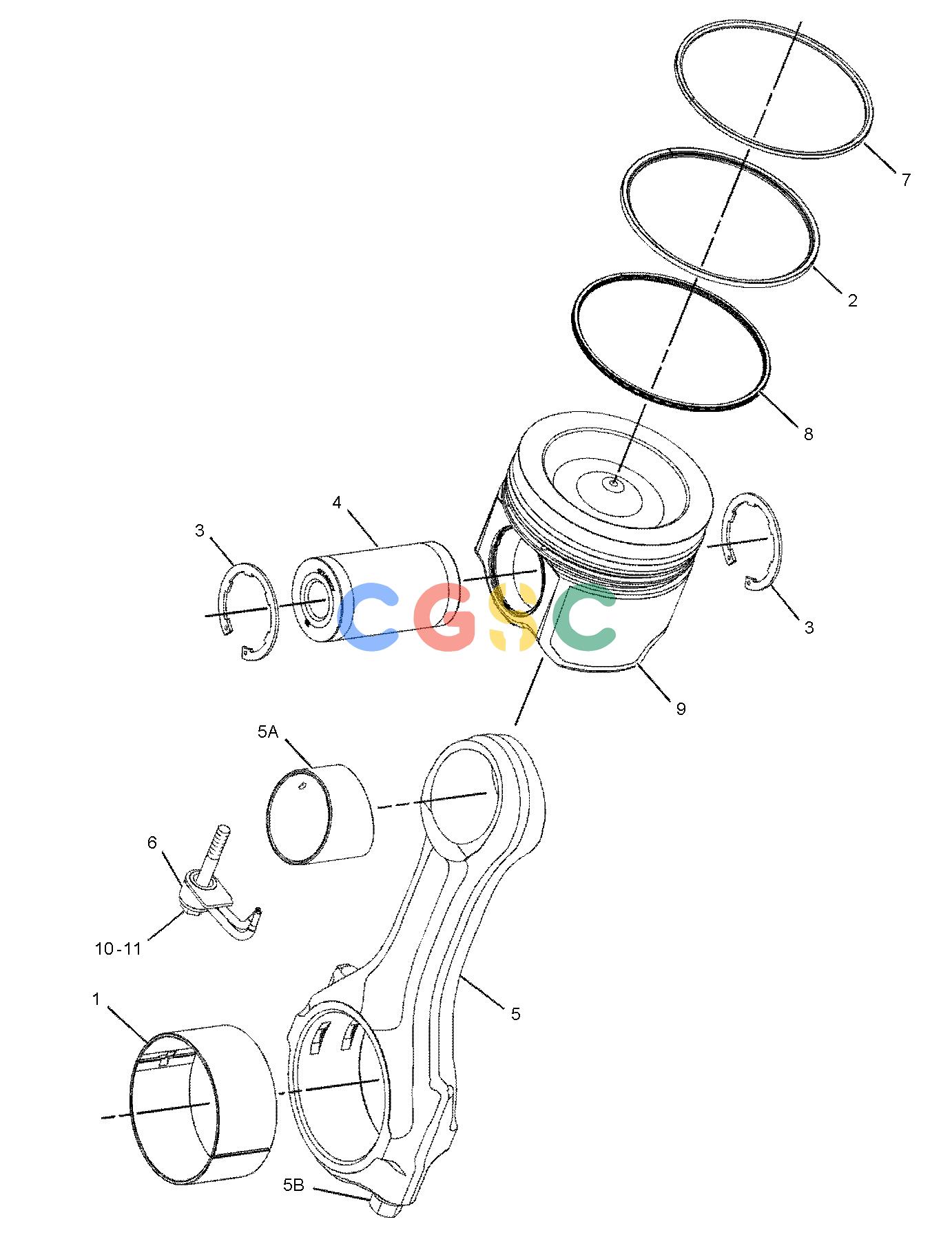

卡特零件查询（730） 452-9086: PISTON & ROD GP
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 514-4549 | [1] | BEARING-CONNECTING ROD | |
| 2. | 331-6025 | [1] | RING-PISTON | |
| 3. | 197-9326 | [2] | RETAINER | |
| 4. | 524-6478 | [1] | PIN-PISTON | |
| 5. | 223-9150 | [1] | ROD AS-CONNECTING | |
| 5A. | 115-2972 | [1] | BEARING-CONNECTING ROD | |
| 5B. | 115-2973M | [2] | BOLT-CONNECTING ROD | |
| 6. | 276-7222 | [1] | TUBE AS-OIL JET | |
| 7. | 415-7459 | [1] | RING-PISTON(TOP) | |
| 8. | 265-1113 | [1] | RING-PISTON(OIL CONTROL) | |
| 9. | 388-2310 | [1] | BODY AS-PISTON | |
| 10. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 11. | 8T-0100M | [1] | BOLT(M8X1.25X60-MM) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
