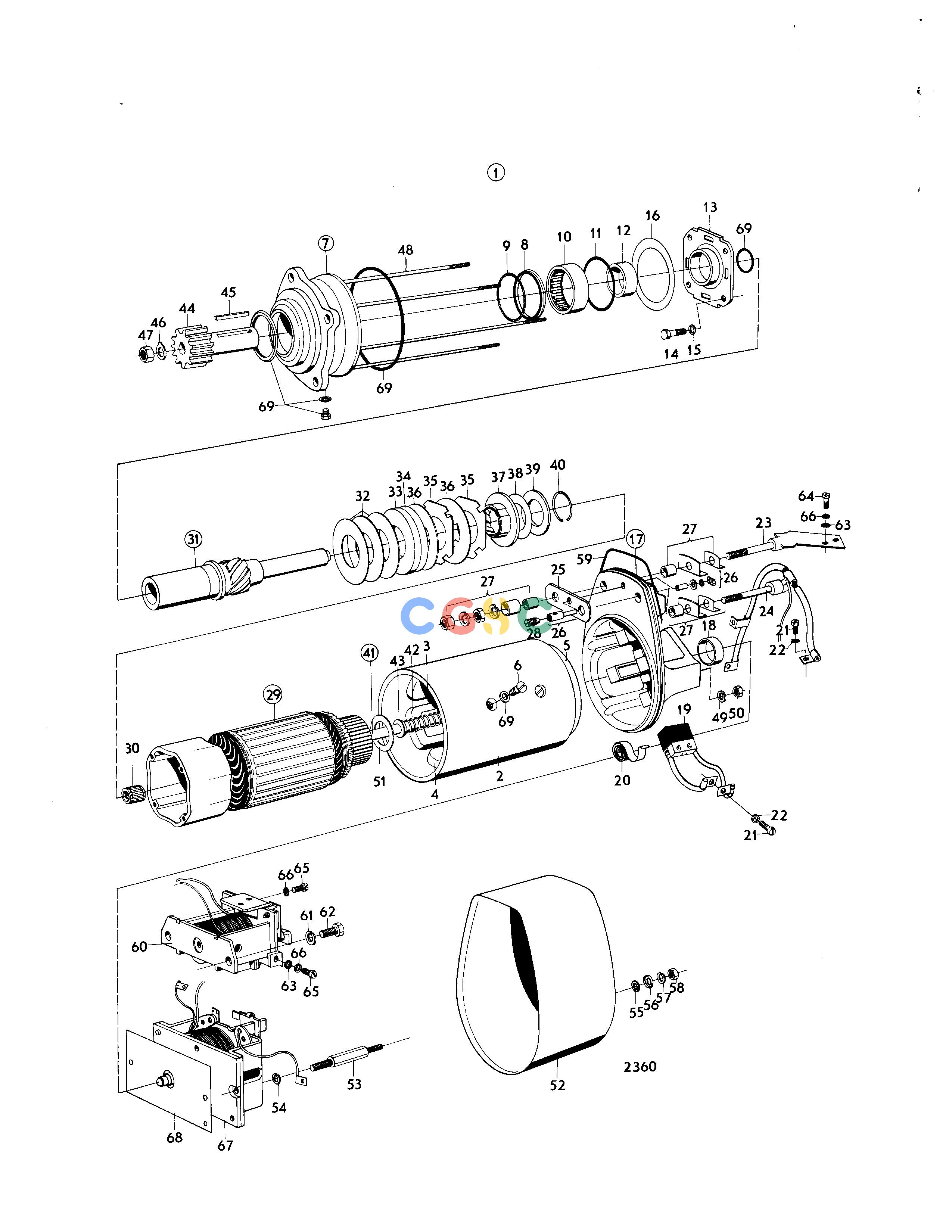

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemStarter: 870998EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
870998
|
[1] |
Starter motor
|
24V
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
243702
|
[1] |
Field winding
|
(243170)
|
| 5. |
240448
|
[1] |
Insulating washer
|
|
| 6. |
956224
|
[8] |
Cross recessed screw
|
|
| 7. |
243319
|
[1] |
Bearing shield
|
|
| 8. |
243172
|
[1] |
Sealing ring
|
|
| 9. |
240451
|
[1] |
Spring
|
|
| 10. |
240453
|
[1] |
Needle bearing
|
|
| 11. |
241903
|
[1] |
Washer
|
|
| 12. |
240455
|
[1] |
Bearing bushing
|
|
| 13. |
240456
|
[1] |
Bearing shield
|
|
| 14. |
955246
|
[4] |
Hexagon screw
|
|
| 15. |
941905
|
[4] |
Spring washer
|
|
| 16. |
240457
|
[1] |
Spacer washer
|
|
| 17. |
843534
|
[1] |
Bearing
|
|
| 18. |
240481
|
[1] |
Bearing bushing
|
|
| 19. |
273516
|
[1] |
Carbon brush set
|
|
| 20. |
240478
|
[4] |
Brush spring
|
|
| 21. |
241147
|
[4] |
Screw
|
|
| 22. |
941905
|
[4] |
Spring washer
|
|
| 23. |
240479
|
[1] |
Terminal screw
|
|
| 24. |
243174
|
[1] |
Cable
|
|
| 25. |
243175
|
[1] |
Insulating plate
|
TH=0.3mm
|
| 25. |
77839
|
[1] |
Insulating washer
|
TH=2,0mm
|
| 26. |
241000
|
[1] |
Connecting kit
|
|
| 27. |
241149
|
[1] |
Connecting kit
|
|
| 28. |
870856
|
[1] |
Screw
|
|
| 29. |
240458
|
[1] |
Rotor
|
|
| 30. |
243091
|
[1] |
Needle bearing
|
|
| 31. |
240927
|
[1] |
Cover
|
Repl by 845108
|
| 32. |
241909
|
[3] |
Washer
|
|
| 33. |
243176
|
[1] |
Ring
|
|
| 34. |
243704
|
[1] |
Adjusting washer
|
TH=0.20mm
|
| 34. |
240463
|
[1] |
Shim
|
TH=0.25mm
|
| 34. |
|
|
|
TH=0.35mm
|
| 35. |
243177
|
[5] |
Disc
|
|
| 36. |
240928
|
[6] |
Disc
|
|
| 37. |
845108
|
[1] |
Drive ring
|
(243178)
|
| 39. |
243179
|
[1] |
Stop ring
|
|
| 40. |
241908
|
[1] |
Lock ring
|
|
| 41. |
|
|
|
Repl by 273552
|
| 42. |
240470
|
[1] |
Spring
|
|
| 43. |
240471
|
[1] |
Lock ring
|
|
| 44. |
243180
|
[1] |
Starter pinion
|
|
| 45. |
240473
|
[1] |
Key
|
|
| 46. |
240474
|
[1] |
Lock washer
|
|
| 47. |
243323
|
[1] |
Nut
|
|
| 48. |
241901
|
[1] |
Bolt
|
L=196mm
|
| 48. |
241902
|
[3] |
Bolt
|
L=245mm
|
| 49. |
941906
|
[4] |
Spring washer
|
|
| 50. |
955781
|
[4] |
Hexagon nut
|
|
| 51. |
241904
|
[1] |
Shim
|
TH=0.2mm
|
| 51. |
240486
|
[1] |
Shim
|
TH=0.3mm
|
| 51. |
240487
|
[1] |
Shim
|
TH=0,5mm
|
| 52. |
243324
|
[1] |
Cover
|
|
| 53. |
243713
|
[2] |
Bolt
|
|
| 54. |
240498
|
[2] |
Washer
|
|
| 55. |
870829
|
[2] |
Gasket
|
|
| 56. |
72201
|
[2] |
Washer
|
|
| 57. |
941906
|
[2] |
Spring washer
|
|
| 58. |
955781
|
[2] |
Hexagon nut
|
|
| 59. |
72225
|
[1] |
O-ring
|
|
| 60. |
243181
|
[1] |
Starter relay
|
|
| 61. |
941907
|
[2] |
Spring washer
|
|
| 62. |
955294
|
[2] |
Hexagon screw
|
|
| 63. |
906822
|
[4] |
Washer
|
(72247)
|
| 64. |
870850
|
[2] |
Screw
|
|
| 65. |
241138
|
[3] |
Screw
|
|
| 66. |
941905
|
[5] |
Spring washer
|
|
| 67. |
241898
|
[1] |
Starter solenoid
|
|
| 68. |
240494
|
[1] |
Adjusting washer
|
TH=0.4mm
|
| 68. |
|
|
|
TH=0.8mm
|
| 69. |
273517
|
[1] |
Small parts kit
|
|
