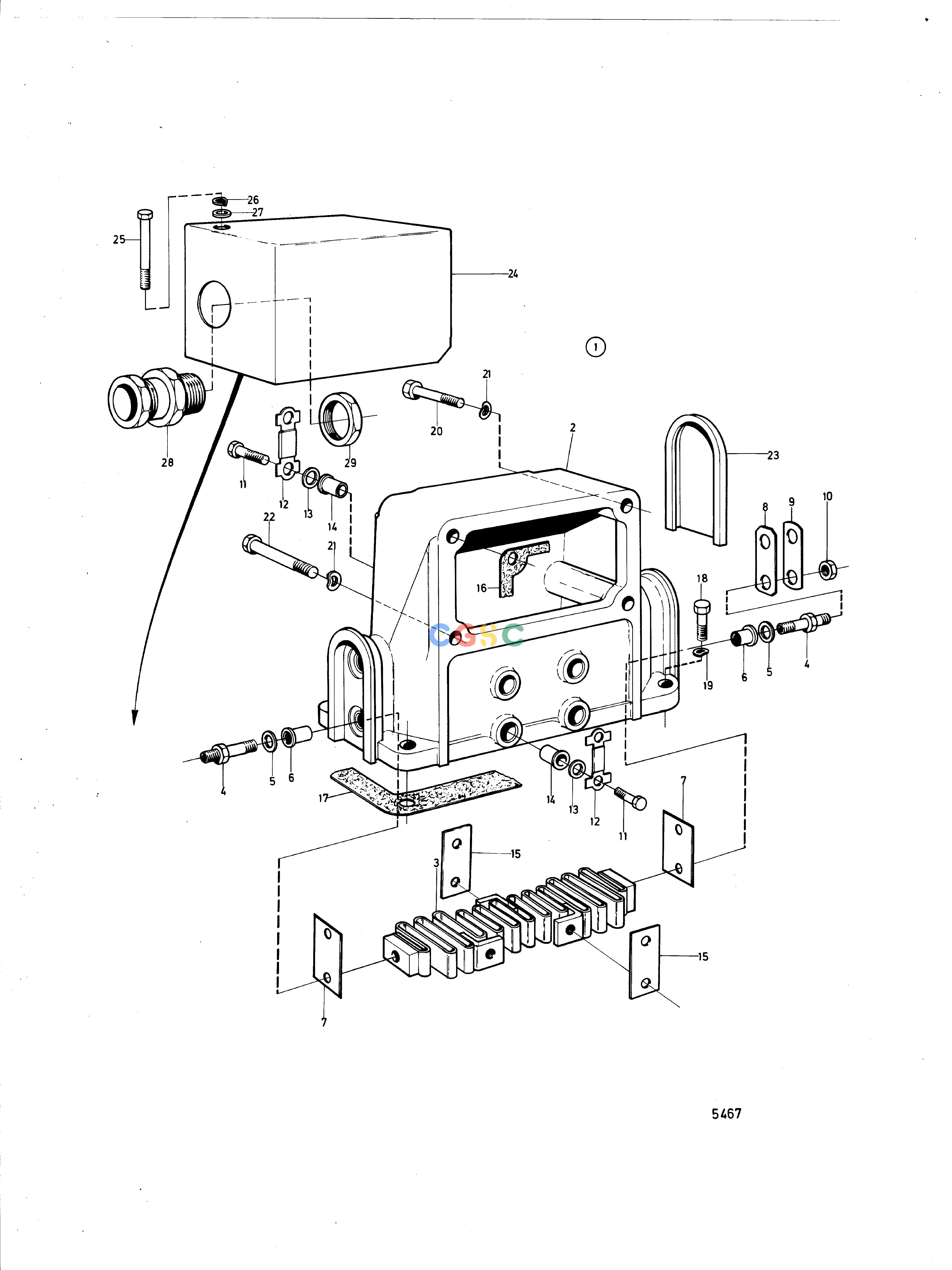

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemStarting Heater with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
922 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
844649
|
[1] |
Housing
|
|
| 3. |
468885
|
[2] |
Belt element
|
SEV Motorola 26692.
|
| 3. |
470213
|
[2] |
Element
|
D70B spec.867060. TD70B spec.867066. D70B spec.867055 alt.
|
| 4. |
1501520
|
[4] |
Screw
|
|
| 5. |
468809
|
[4] |
Washer
|
SEV Motorola 26692
|
| 5. |
949041
|
[4] |
Washer
|
D70B spec.867060. TD70B spec.867066. D70B spec.867055 alt.
|
| 6. |
468511
|
[4] |
Bushing
|
|
| 7. |
468795
|
[2] |
Insulating plate
|
SEV Motorola 26692
|
| 7. |
470209
|
[2] |
Insulating plate
|
D70B spec.867060. TD70B spec.867066. D70B spec.867055 alt.
|
| 8. |
1501519
|
[1] |
Current bar
|
SEV Motorola 26692
|
| 9. |
403181
|
[1] |
Tab washer
|
SEV Motorola 26692
|
| 10. |
17624
|
[2] |
Hexagon nut
|
SEV Motorola 26692.
|
| 11. |
955248
|
[6] |
Hexagon screw
|
|
| 12. |
468512
|
[3] |
Striker plate
|
|
| 13. |
191156
|
[6] |
Washer
|
|
| 14. |
468468
|
[6] |
Sleeve
|
|
| 15. |
468794
|
[3] |
Insulating plate
|
SEV Motorola 26692
|
| 15. |
470210
|
[3] |
Insulating plate
|
D70B spec.867060. TD70B spec.867066. D70B spec.867055 alt.
|
| 16. |
844629
|
[1] |
Gasket
|
See group 2B
|
| 17. |
468243
|
[1] |
Gasket
|
See group 2B
|
| 18. |
956571
|
[4] |
Hex. socket screw
|
|
| 19. |
941907
|
[4] |
Spring washer
|
|
| 20. |
955528
|
[2] |
Hexagon screw
|
|
| 21. |
941907
|
[4] |
Spring washer
|
|
| 22. |
955531
|
[2] |
Hexagon screw
|
|
| 23. |
844778
|
[2] |
Cover
|
|
| 24. |
844779
|
[1] |
Protecting casing
|
Åkerman spec. 867446
|
| 25. |
191337
|
[1] |
Hexagon screw
|
Åkerman spec. 867446.
|
| 26. |
941907
|
[1] |
Spring washer
|
Åkerman spec. 867446.
|
| 27. |
960141
|
[1] |
Washer
|
Åkerman spec. 867446.
|
| 28. |
881193
|
[1] |
Grommet
|
Åkerman spec. 867446.
|
| 29. |
880755
|
[1] |
Nut
|
Åkerman spec. 867446.
|
