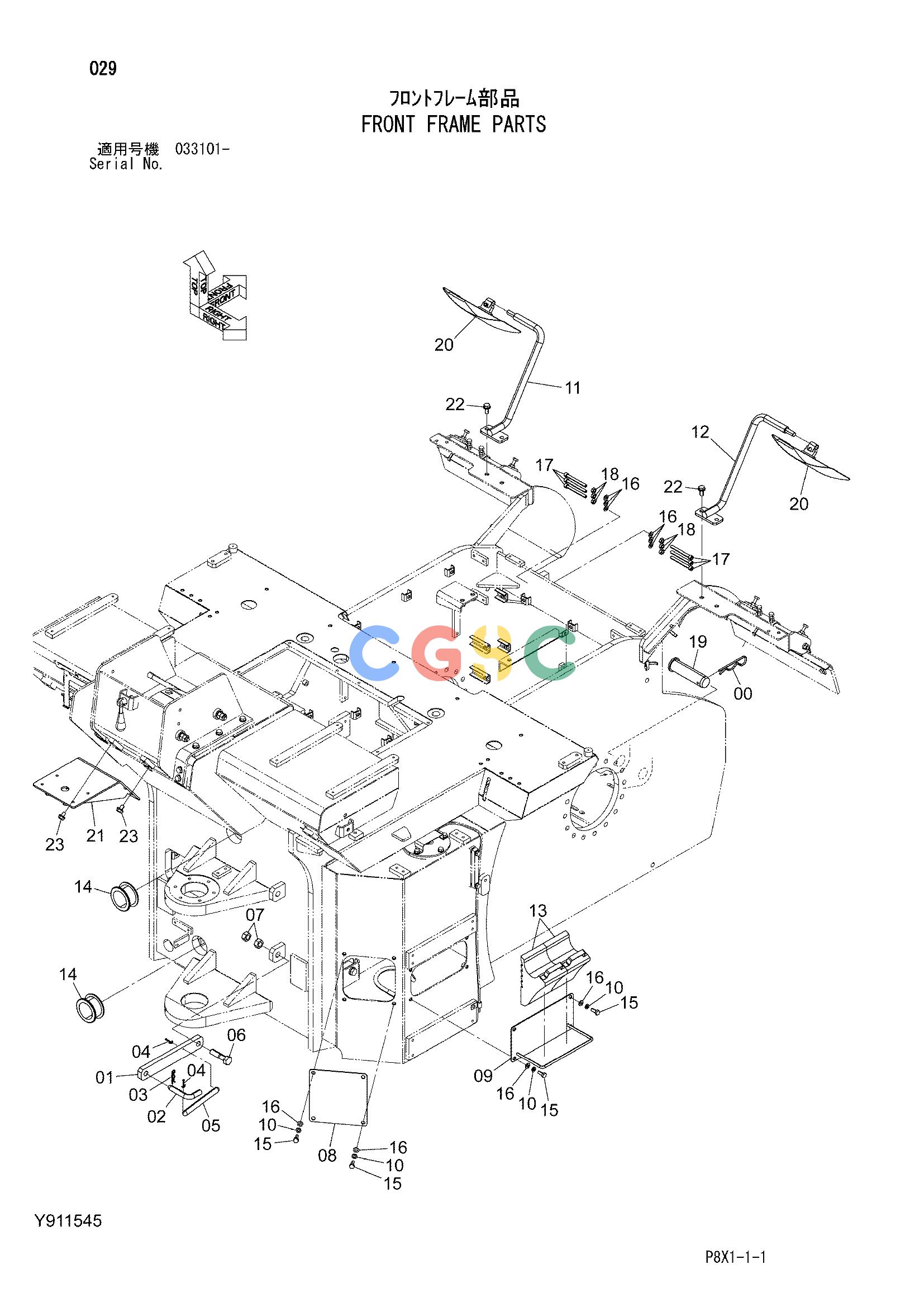

日立零件查询（CS125-3）FRONT FRAME PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 3002554 | [1] | PIN;LOCK | |
| 01. | Y404888 | [1] | BAR;LOCK | |
| 02. | Y402431 | [1] | PIN | |
| 03. | 4077248 | [1] | PIN;LOCK | |
| 04. | A764040 | [2] | PIN;SPLIT | |
| 05. | Y402433 | [1] | CHAIN | |
| 06. | J922080 | [1] | BOLT | |
| 07. | J950020 | [2] | NUT | |
| 08. | Y404905 | [1] | COVER | |
| 09. | Y800804 | [1] | COVER | |
| 10. | A590910 | [8] | WASHER;SPRING | |
| 11. | Y802809 | [1] | STAY | |
| 12. | Y802810 | [1] | STAY | |
| 13. | Y403388 | [2] | STOPPER | |
| 14. | 4206477 | [2] | BUSHING;RUBBER | |
| 15. | J901025 | [8] | BOLT | |
| 16. | A590110 | [14] | WASHER;PLANE | |
| 17. | J781000 | [6] | BOLT;SOCKET | |
| 18. | J950010 | [6] | NUT | |
| 19. | Y405000 | [1] | PIN | |
| 20. | Y402384 | [2] | MIRROR | |
| 21. | Y802823 | [1] | BRACKET | |
| 22. | J271230 | [4] | BOLT;SEMS | |
| 22A. | J901230 | [1] | BOLT | |
| 22B. | J222012 | [1] | WASHER | |
| 23. | J271220 | [4] | BOLT;SEMS | |
| 23A. | J901220 | [1] | BOLT | |
| 23B. | J222012 | [1] | WASHER | |
