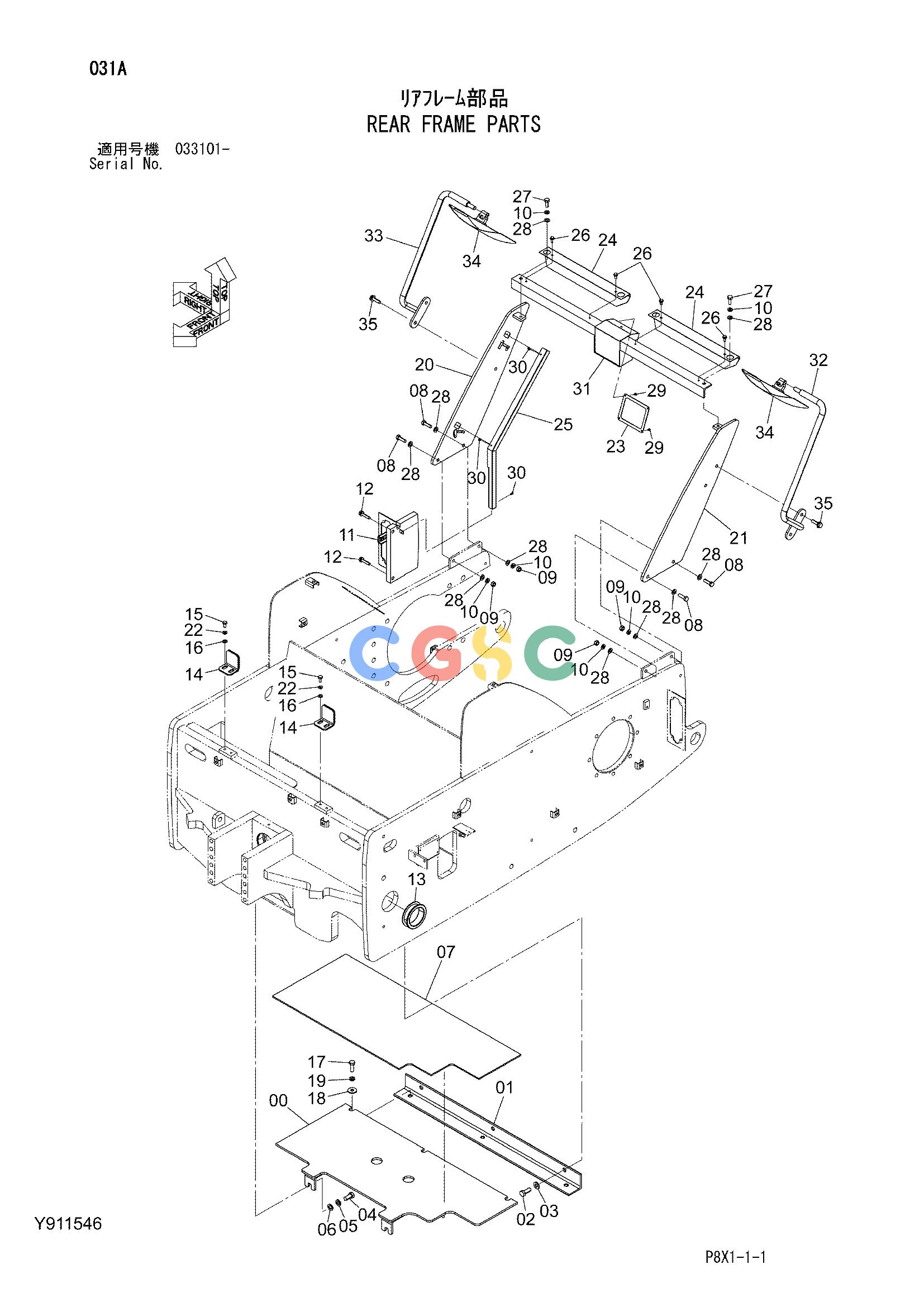

日立零件查询（CS125-3）REAR FRAME PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
475 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y700324 | [1] | FLOOR | |
| 01. | Y800765 | [1] | BRACKET | |
| 02. | J921640 | [3] | BOLT | |
| 03. | J222016 | [3] | WASHER | |
| 04. | J901635 | [2] | BOLT | |
| 05. | A590916 | [2] | WASHER;SPRING | |
| 06. | A590116 | [2] | WASHER;PLANE | |
| 07. | Y404881 | [1] | SHEET;RUBBER | |
| 08. | J901240 | [4] | BOLT | |
| 09. | J950012 | [4] | NUT | |
| 10. | A590912 | [6] | WASHER;SPRING | |
| 11. | Y802824 | [1] | PLATE | |
| 12. | J271050 | [2] | BOLT;SEMS | |
| 12A. | J901050 | [1] | BOLT | |
| 12B. | J222010 | [1] | WASHER | |
| 13. | 4191977 | [1] | BUSHING;RUBBER | |
| 14. | Y970355 | [2] | BRACKET | |
| 15. | J901020 | [4] | BOLT | |
| 16. | A590110 | [4] | WASHER;PLANE | |
| 17. | J901440 | [3] | BOLT | |
| 18. | J217084 | [3] | WASHER | |
| 19. | A590914 | [3] | WASHER;SPRING | |
| 20. | Y701203 | [1] | PLATE | |
| 21. | Y802825 | [1] | PLATE | |
| 22. | A590910 | [4] | WASHER;SPRING | |
| 23. | Y417748 | [1] | PLATE | |
| 24. | Y302286 | [2] | COVER | |
| 25. | Y701205 | [1] | DUCT | |
| 26. | J260820 | [4] | BOLT;SEMS | |
| 26A. | J900820 | [1] | BOLT | |
| 26B. | A590108 | [1] | WASHER;PLANE | |
| 27. | J901230 | [2] | BOLT | |
| 28. | A590112 | [10] | WASHER;PLANE | |
| 29. | J680512 | [4] | SCREW;SEMS | |
| 30. | J450510 | [3] | SCREW;SEMS | |
| 31. | Y701251 | [1] | BRACKET | |
| 32. | Y802839 | [1] | STAY | |
| 33. | Y802840 | [1] | STAY | |
| 34. | Y402384 | [2] | MIRROR | |
| 35. | J271245 | [4] | BOLT;SEMS | |
| 35A. | J901245 | [1] | BOLT | |
| 35B. | J222012 | [1] | WASHER | |
