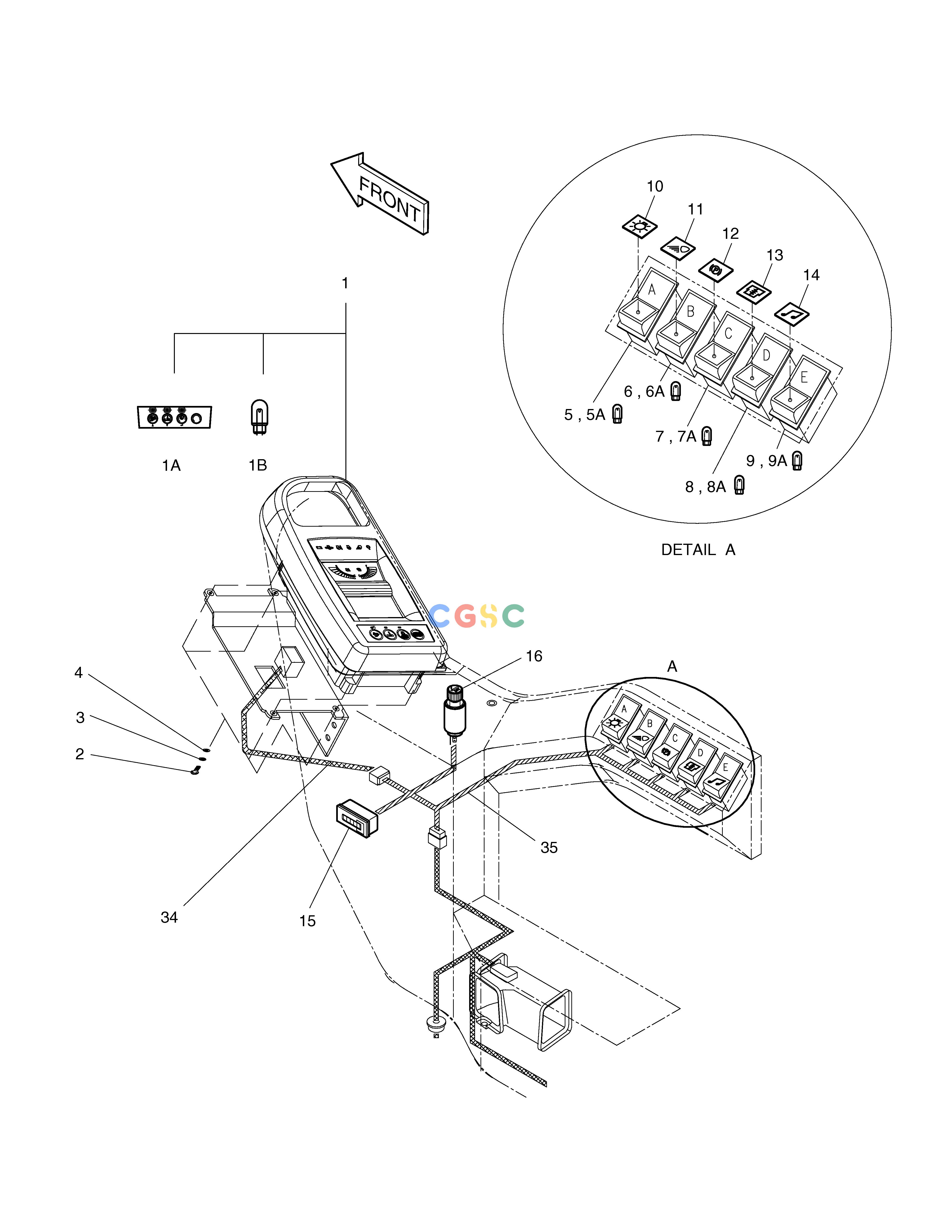

斗山零件查询ELECTRIC PARTS(1)-GAUGE & SWITCH PANEL SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00197
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197A
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197B
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197C
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197E
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197G
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197H
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197I
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00197J
|
[-] |
ELECTRIC PARTS
|
|
| 1. |
539-00048C
|
[1] |
PANEL;LCD GAUGE
|
539-00048E
|
| 1. |
539-00048E
|
[1] |
PANEL;LCD GAUGE
|
539-00048G
|
| 1. |
539-00048G
|
[1] |
PANEL;LCD GAUGE
|
|
| 10. |
2190-2036D24
|
[1] |
INSERT;LAMP
|
|
| 11. |
2190-2036D5
|
[1] |
INSERT;WORKING LAMP
|
|
| 12. |
2190-2036D16
|
[1] |
INSERT;PARKING BRAKE
|
|
| 13. |
2190-2584D17
|
[1] |
INSERT;RAM LOCK
|
|
| 14. |
2190-2036D23
|
[1] |
INSERT;CAR STEREO
|
|
| 15. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 16. |
545-00001
|
[1] |
LIGHTER;CIGAR
|
|
| 1A. |
159-00195
|
[1] |
SHEET;SWITCH
|
|
| 1B. |
515-00012A
|
[6] |
BULB
|
|
| 2. |
S3450853
|
[4] |
SCREW
|
|
| 3. |
S5100203
|
[4] |
WASHER
|
|
| 34. |
530-00279
|
[1] |
HARNESS;GAUGE PANEL JOINT
|
|
| 35. |
530-00274A
|
[1] |
HARNESS;SWITCH BOX
|
|
| 35. |
530-00274B
|
[1] |
HARNESS;SWITCH BOX
|
|
| 4. |
S5000213
|
[4] |
. WASHER
|
|
| 5. |
2549-9109
|
[1] |
SWITCH;LAMP
|
|
| 5A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 6. |
2549-9098
|
[1] |
SWITCH;ROCKER
|
|
| 6A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 7. |
2549-9098
|
[1] |
SWITCH;ROCKER
|
|
| 7A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 8. |
2549-9098
|
[1] |
SWITCH;ROCKER
|
|
| 8A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 9. |
2549-9098
|
[1] |
SWITCH;ROCKER
|
|
| 9A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
