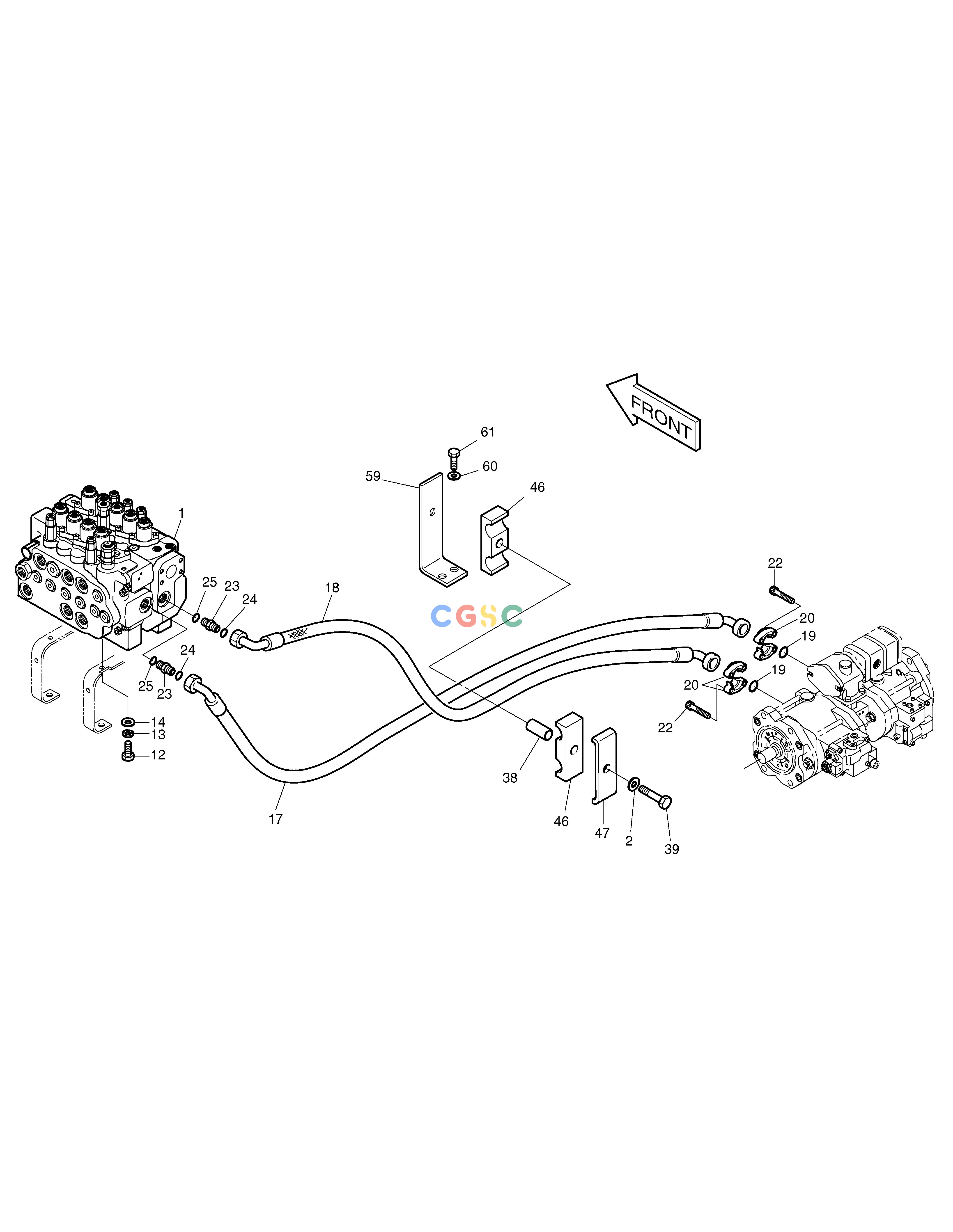

斗山零件查询MAIN PIPING(1)-PUMP SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
123 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01166
|
[-] |
MAIN PIPING
|
|
| 1. |
426-E0076C
|
[1] |
VALVE;CONTROL
|
|
| 1. |
426-E0076E
|
[1] |
VALVE;CONTROL
|
|
| 12. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 13. |
S5102703
|
[4] |
WASHER
|
|
| 14. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 17. |
DS2052003
|
[1] |
HOSE PF3/4-1070L
|
DS2052007
|
| 17. |
DS2052007
|
[1] |
HOSE PF3/4-1070L
|
|
| 18. |
DS2052006
|
[1] |
HOSE PF3/4-920L
|
|
| 19. |
2180-1026D2
|
[2] |
O-RING
|
|
| 2. |
S5102901
|
[1] |
. WASHER;SPRING
|
|
| 20. |
2181-9080
|
[4] |
FLANGE
|
|
| 22. |
S2212266
|
[8] |
BOLT
|
|
| 23. |
2181-2627D1
|
[2] |
ADAPTER
|
|
| 24. |
S8030121
|
[2] |
O-RING
|
|
| 25. |
S8000231
|
[2] |
O-RING
|
|
| 38. |
2114-1808
|
[1] |
SPACER
|
|
| 39. |
S0565866
|
[1] |
BOLT M16X2.0X80
|
|
| 46. |
2124-1548
|
[2] |
CLAMP;HOSE
|
|
| 47. |
191-02478
|
[1] |
PLATE
|
|
| 59. |
116-00077
|
[1] |
PLATE
|
|
| 60. |
S5102603
|
[2] |
. WASHER
|
|
| 61. |
S0512063
|
[2] |
WASHER
|
|
