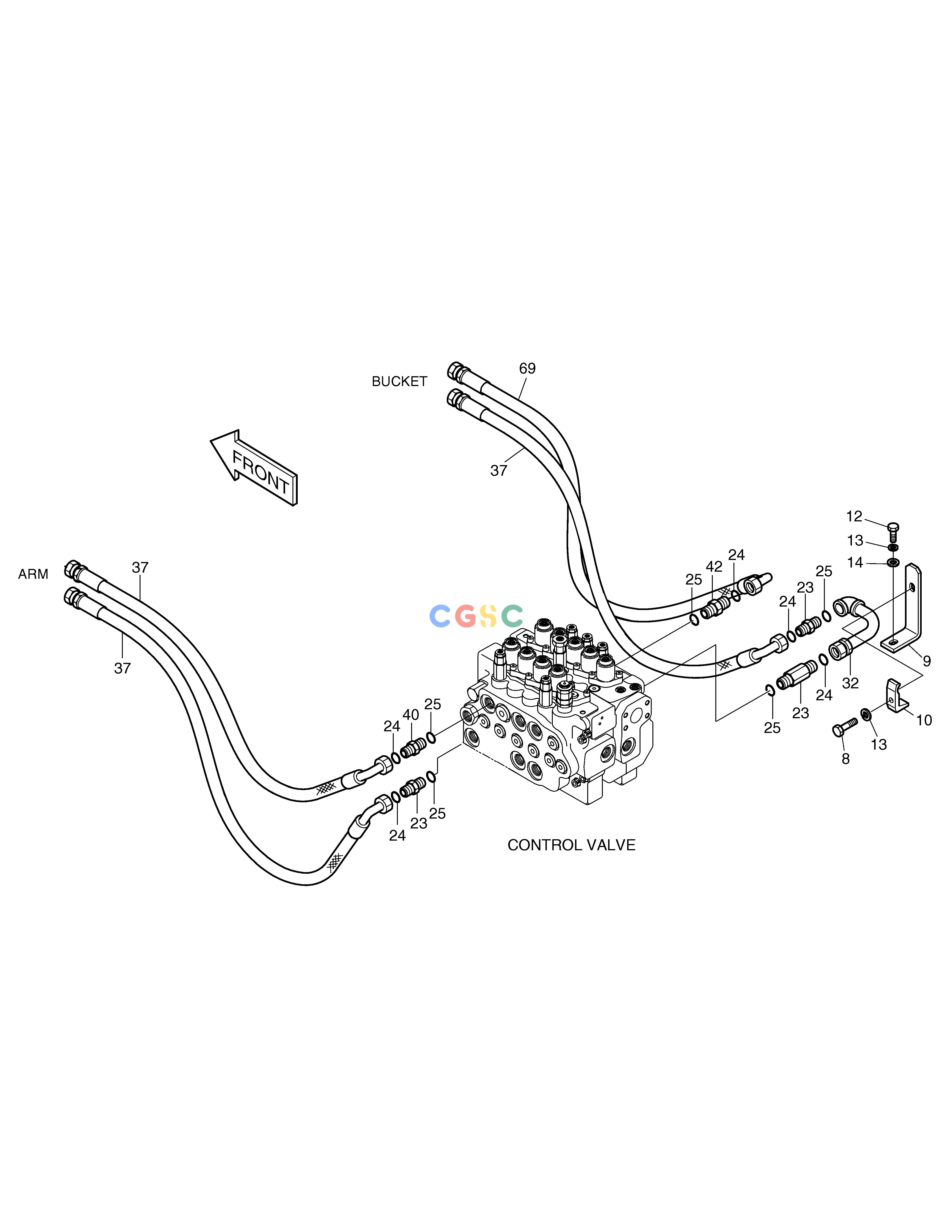

斗山零件查询MAIN PIPING(3)-ARM. BUCKET SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
949 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01166
|
[-] |
MAIN PIPING
|
|
| 10. |
2124-1026D3
|
[1] |
CLAMP;PIPE
|
|
| 12. |
S0515353
|
[1] |
BOLT M12X1.75X35
|
|
| 13. |
S5102703
|
[2] |
WASHER
|
|
| 14. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 23. |
2181-2627D1
|
[3] |
ADAPTER
|
|
| 24. |
S8030121
|
[5] |
O-RING
|
|
| 25. |
S8000231
|
[5] |
O-RING
|
|
| 32. |
140-01284
|
[1] |
PIPE
|
|
| 37. |
2184-1250D42
|
[3] |
HOSE PF3/4-1300L
|
|
| 40. |
2181-2627D7
|
[1] |
ADAPTER
|
|
| 42. |
2181-2627D3
|
[1] |
ADAPTER
|
|
| 69. |
DS2013391
|
[1] |
HOSE PF3/4-1060L
|
|
| 8. |
S0560953
|
[1] |
BOLT M12X1.75X60
|
|
| 9. |
2197-1549B
|
[1] |
BRACKET
|
|
