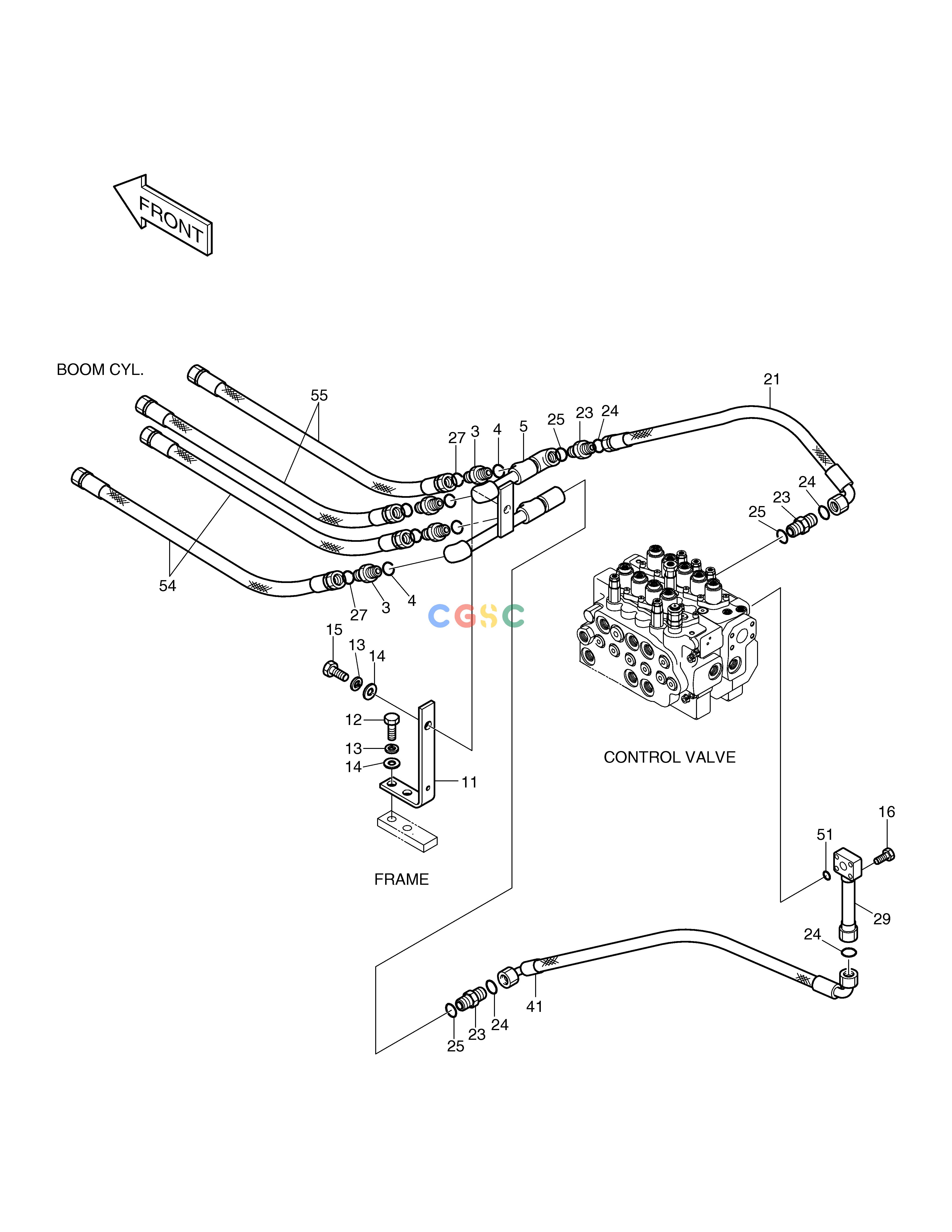

斗山零件查询MAIN PIPING(2)-BOOM SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
916 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01166
|
[-] |
MAIN PIPING
|
|
| 11. |
195-01559
|
[1] |
BRACKET
|
|
| 12. |
S0515353
|
[2] |
BOLT M12X1.75X35
|
|
| 13. |
S5102703
|
[3] |
WASHER
|
|
| 14. |
S5010713
|
[3] |
WASHER;PLAIN
|
|
| 15. |
S0560753
|
[1] |
BOLT M12X1.75X50
|
|
| 16. |
S2212766
|
[4] |
BOLT;SOCKET M10X1.5X55
|
|
| 21. |
2184-1197D73
|
[1] |
HOSE PF3/4-960L
|
|
| 23. |
2181-2627D1
|
[3] |
ADAPTER
|
|
| 24. |
S8030121
|
[4] |
O-RING
|
|
| 25. |
S8000231
|
[3] |
O-RING
|
|
| 27. |
S8030081
|
[4] |
O-RING
|
|
| 29. |
2140-1242A
|
[1] |
PIPE
|
|
| 3. |
2181-4133D3
|
[4] |
ADAPTER
|
|
| 4. |
S8000181
|
[4] |
O-RING
|
|
| 41. |
2184-1250D38
|
[1] |
HOSE(BOOM)PF3/4-950L
|
|
| 5. |
2140-1237B
|
[1] |
PIPE ASS'Y
|
|
| 51. |
2180-1026D19
|
[1] |
O-RING
|
|
| 54. |
DS2011287
|
[2] |
HOSE(BOOM)PF1/2-600L
|
|
| 55. |
DS2011288
|
[2] |
HOSE(BOOM)PF1/2-630L
|
|
