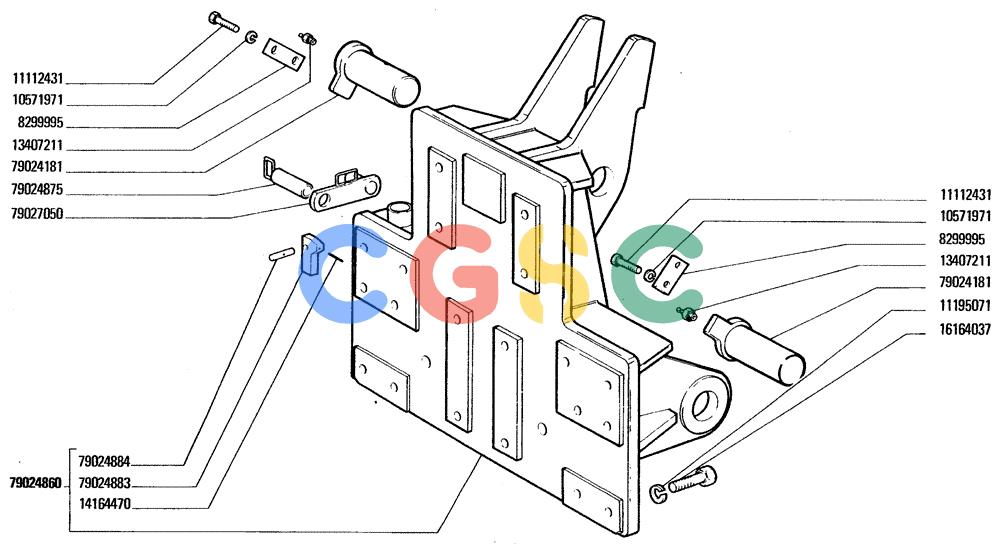

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.05[001]) - RIPPER MOUNTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
552 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8299995. | 8299995 | [3] | LOCKING PLATE | LECPLATE Superseded by part number: 76092109 |
| 10571971. | 10571971 | [6] | LOCK WASHER | BHBLOCKWASHER Superseded by part number: 412123 |
| 11112431. | 11112431 | [6] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 11195071. | 11195071 | [16] | WASHER | LECLOCKWASHER |
| 13407211. | 13407211 | [3] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 14164470. | 14164470 | [1] | LOCK PIN,M4 x 32, Slotted | JESPIN |
| 16164037. | 16164037 | [20] | BOLT,Hex, M30 x 2 x 70mm, Cl 10.9, Full Thd | LECSCREW |
| 79024181. | 79024181 | [3] | PIN | LEC |
| 79024860. | 79024860 | [1] | SUPPORT | LEC Superseded by part number: 79034615 |
| 79024875. | 79024875 | [1] | PIN | LEC |
| 79024883. | 79024883 | [1] | BLOCK | LECPAD |
| 79024884. | 79024884 | [1] | PIN | LEC |
| 79027050. | 79027050 | [1] | LINK | LEC |
