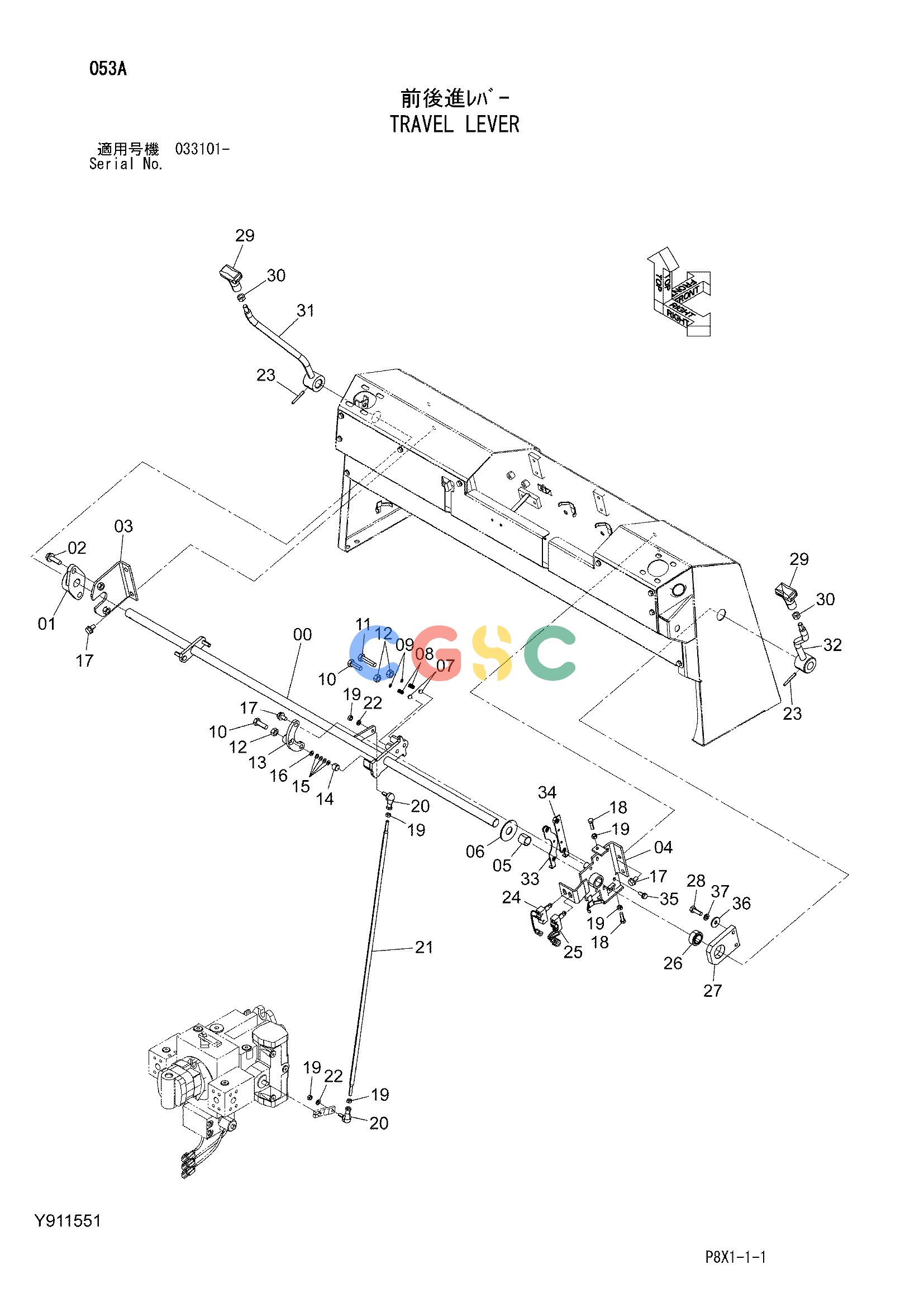

日立零件查询（CS125-3）TRAVEL LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
188 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y701184 | [1] | SHAFT | |
| 01. | Y404909 | [1] | BRG.;UNIT | |
| 02. | J271240 | [2] | BOLT;SEMS | |
| 02A. | J901240 | [1] | BOLT | |
| 02B. | J222012 | [1] | WASHER | |
| 03. | Y800882 | [1] | BRACKET | |
| 04. | Y802800 | [1] | BRACKET | |
| 05. | Y404910 | [1] | BUSHING | |
| 06. | Y417683 | [1] | DISC;FRICTION | |
| 07. | Y404911 | [2] | BALL;STEEL | |
| 08. | Y404906 | [2] | SPRING;COMPRES. | |
| 09. | A590105 | [2] | WASHER;PLANE | |
| 10. | J921235 | [2] | BOLT | |
| 11. | M261250 | [1] | BOLT | |
| 12. | J950012 | [3] | NUT | |
| 13. | Y970344 | [1] | BRACKET | |
| 14. | Y404902 | [1] | HOLDER | |
| 15. | Y404908 | [4] | SPRING;DISC | |
| 16. | J222006 | [1] | WASHER | |
| 17. | J271020 | [6] | BOLT;SEMS | |
| 17A. | J901020 | [1] | BOLT | |
| 17B. | J222010 | [1] | WASHER | |
| 18. | J900830 | [4] | BOLT | |
| 19. | M500807 | [8] | NUT | |
| 20. | 4056018 | [2] | JOINT;BALL | |
| 21. | Y417681 | [1] | ROD | |
| 22. | A590908 | [2] | WASHER;SPRING | |
| 23. | 984299 | [2] | PIN;SPRING | |
| 24. | Y402008 | [1] | SWITCH;MICRO | |
| 25. | Y404955 | [1] | SWITCH;MICRO | |
| 26. | Y404984 | [1] | BRG.;DRY | |
| 27. | Y404985 | [1] | PLATE | |
| 28. | J901030 | [2] | BOLT | |
| 29. | 3036292 | [2] | GRIP | |
| 30. | J952012 | [2] | NUT | |
| 31. | Y801096 | [1] | LEVER | |
| 32. | Y801097 | [1] | LEVER | |
| 33. | Y971842 | [1] | PLATE;FRICTION | |
| 34. | Y971856 | [1] | PLATE;FRICTION | |
| 35. | J260820 | [4] | BOLT;SEMS | |
| 35A. | J900820 | [1] | BOLT | |
| 35B. | A590108 | [1] | WASHER;PLANE | |
| 36. | J217083 | [2] | WASHER | |
| 37. | A590910 | [2] | WASHER;SPRING | |
