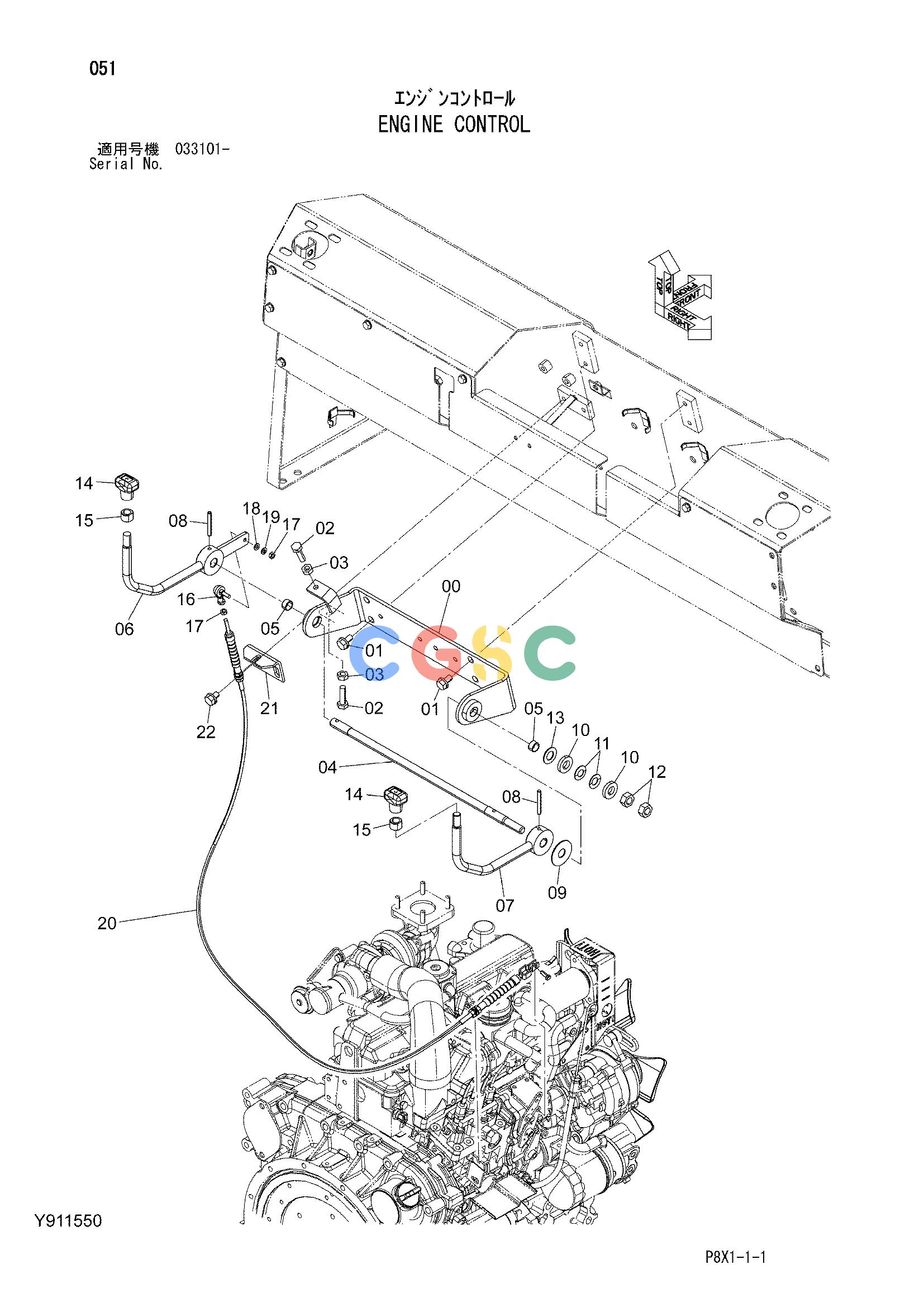

日立零件查询（CS125-3）ENGINE CONTROL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
181 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802815 | [1] | BRACKET | |
| 01. | J271020 | [4] | BOLT;SEMS | |
| 01A. | J901020 | [1] | BOLT | |
| 01B. | J222010 | [1] | WASHER | |
| 02. | J901035 | [2] | BOLT | |
| 03. | J950010 | [2] | NUT | |
| 04. | Y404773 | [1] | SHAFT | |
| 05. | Y404916 | [2] | BUSHING | |
| 06. | Y802814 | [1] | LEVER | |
| 07. | Y800881 | [1] | LEVER | |
| 08. | 984299 | [2] | PIN;SPRING | |
| 09. | Y404918 | [1] | DISC;FRICTION | |
| 10. | Y402661 | [2] | WASHER | |
| 11. | Y404917 | [2] | SPRING;DISC | |
| 12. | J950014 | [2] | NUT | |
| 13. | Y404952 | [1] | DISC;FRICTION | |
| 14. | 9743735 | [2] | GRIP | |
| 15. | Y404333 | [2] | NUT | |
| 16. | 4056017 | [1] | JOINT;BALL | |
| 17. | M500605 | [2] | NUT | |
| 18. | A590106 | [1] | WASHER;PLANE | |
| 19. | A590906 | [1] | WASHER;SPRING | |
| 20. | Y417719 | [1] | CABLE;CONTROL | |
| 21. | Y417735 | [1] | BRACKET | |
| 22. | J271016 | [2] | BOLT;SEMS | |
| 22A. | J901016 | [1] | BOLT | |
| 22B. | J222010 | [1] | WASHER | |
