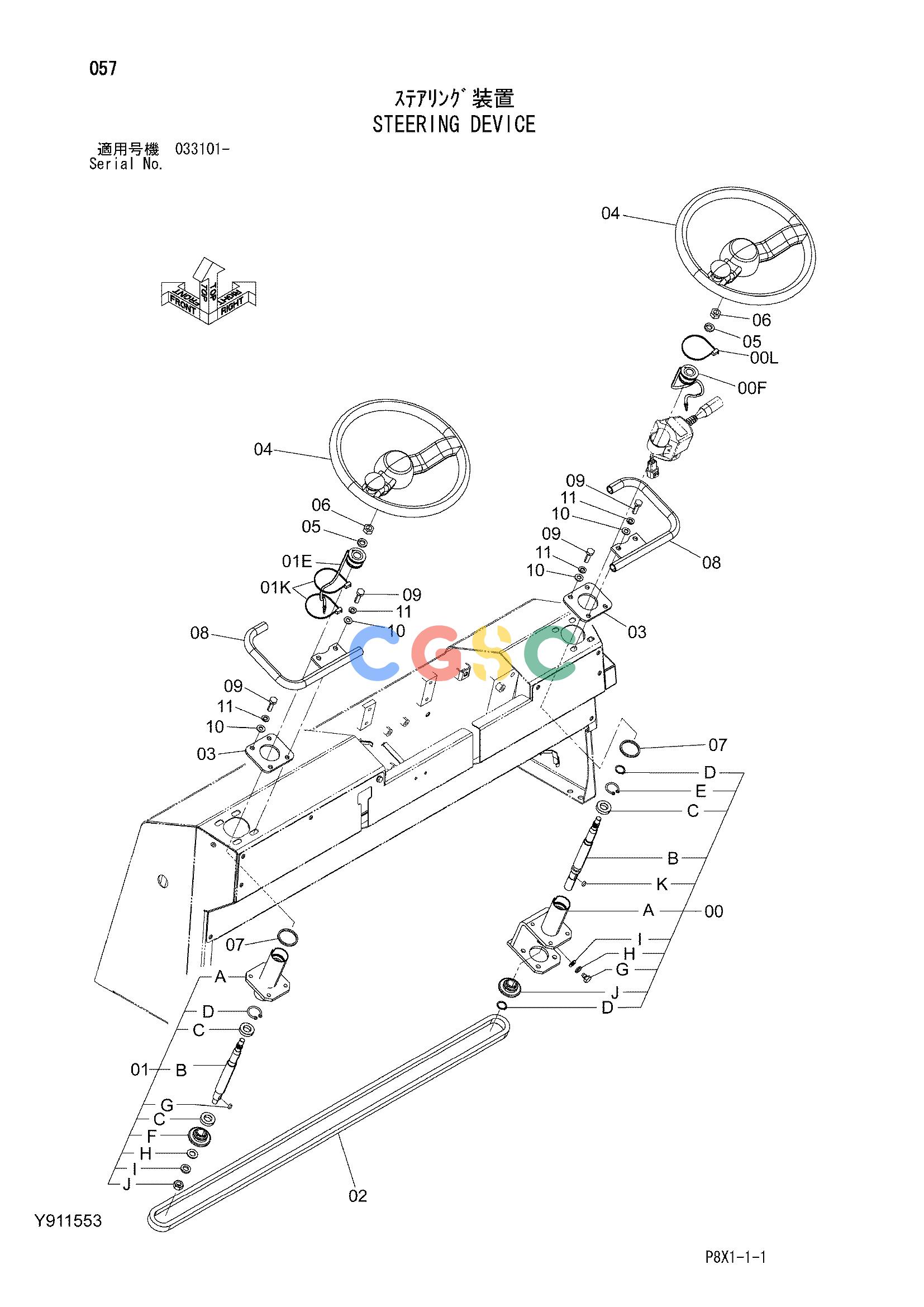

日立零件查询（CS125-3）STEERING DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
882 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y417597 | [1] | COLUMN;STEERING | |
| 00A. | Y700347 | [1] | COLUMN | |
| 00B. | Y302270 | [1] | SHAFT | |
| 00C. | 4280347 | [1] | BEARING;BALL | |
| 00D. | 959500 | [2] | RING;RETAINING | |
| 00E. | 4144244 | [1] | RING;RETAINING | |
| 00F. | 4280348 | [1] | BUSHING | |
| 00G. | 4280350 | [1] | BOLT;STOPPER | |
| 00H. | A590910 | [1] | WASHER;SPRING | |
| 00I. | A590110 | [1] | WASHER;PLANE | |
| 00J. | Y402598 | [1] | SPROCKET | |
| 00K. | Y402641 | [1] | KEY | |
| 00L. | 4055312 | [1] | CLIP;BAND | |
| 01. | Y417598 | [1] | COLUMN;STEERING | |
| 01A. | Y800887 | [1] | COLUMN | |
| 01B. | Y302271 | [1] | SHAFT | |
| 01C. | 4280347 | [2] | BEARING;BALL | |
| 01D. | 4144244 | [2] | RING;RETAINING | |
| 01E. | 4280348 | [1] | BUSHING | |
| 01F. | Y402598 | [1] | SPROCKET | |
| 01G. | Y402641 | [1] | KEY | |
| 01H. | A590114 | [1] | WASHER;PLANE | |
| 01I. | A590914 | [1] | WASHER;SPRING | |
| 01J. | J952014 | [1] | NUT | |
| 01K. | 4055312 | [2] | CLIP;BAND | |
| 02. | Y404920 | [1] | CHAIN | |
| 03. | Y404907 | [2] | COVER | |
| 04. | Y417194 | [2] | WHEEL;STEERING | |
| 05. | A590914 | [2] | WASHER;SPRING | |
| 06. | J952014 | [2] | NUT | |
| 07. | Y404981 | [2] | SEAL | |
| 08. | Y802816 | [2] | HANDRAIL | |
| 09. | J901035 | [8] | BOLT | |
| 10. | A590110 | [8] | WASHER;PLANE | |
| 11. | A590910 | [8] | WASHER;SPRING | |
